ABB 3-Pole Plug-in Isolator Switch -, IP65, 25A, 9 kW
- RS Stock No.:
- 192-0864
- Mfr. Part No.:
- 1SCA022401R3430
- Brand:
- ABB
Subtotal (1 unit)*
£49.77
(exc. VAT)
£59.72
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £49.77 |
*price indicative
- RS Stock No.:
- 192-0864
- Mfr. Part No.:
- 1SCA022401R3430
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 3 | |
| Product Type | Isolator Switch | |
| Mount Type | Plug-in | |
| IP Rating | IP65 | |
| Electrical Phase | 3 | |
| Handle Colour | Red, Yellow | |
| Series | OTP25BA3M | |
| Switching Current | 25A | |
| Terminal Type | Screw Clamp | |
| Auxiliary Contacts Available | Yes | |
| Switching Power | 9kW | |
| Padlock Compatibility | Yes | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 415V ac | |
| Maximum Operating Temperature | 70°C | |
| Width | 130mm | |
| Standards/Approvals | IEC 60947-1 | |
| Hazardous Area Certification | No | |
| Depth | 60mm | |
| Length | 150mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 3 | ||
Product Type Isolator Switch | ||
Mount Type Plug-in | ||
IP Rating IP65 | ||
Electrical Phase 3 | ||
Handle Colour Red, Yellow | ||
Series OTP25BA3M | ||
Switching Current 25A | ||
Terminal Type Screw Clamp | ||
Auxiliary Contacts Available Yes | ||
Switching Power 9kW | ||
Padlock Compatibility Yes | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 415V ac | ||
Maximum Operating Temperature 70°C | ||
Width 130mm | ||
Standards/Approvals IEC 60947-1 | ||
Hazardous Area Certification No | ||
Depth 60mm | ||
Length 150mm | ||
- COO (Country of Origin):
- FI

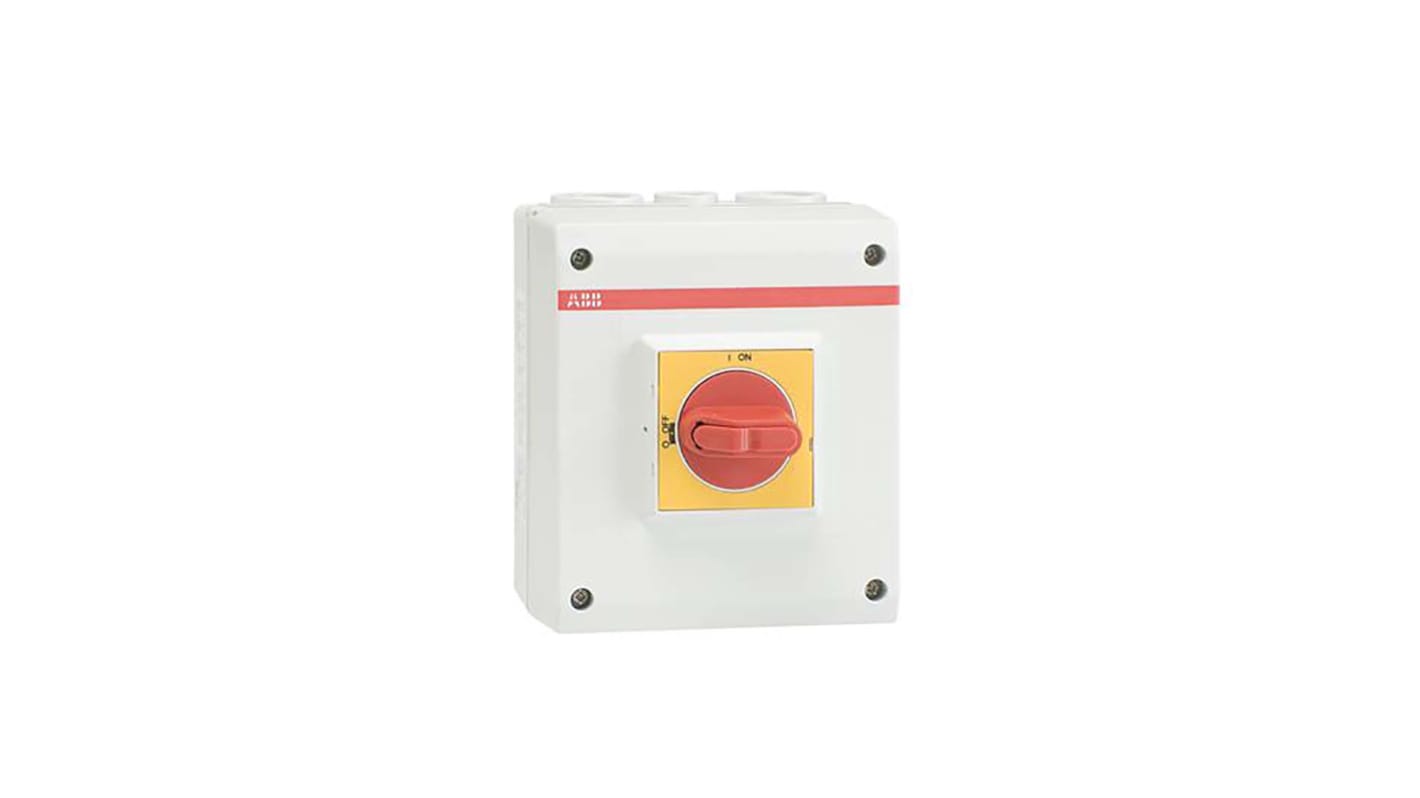

The ABB enclosed switch disconnector has electrical voltage rating of 750V and current rating of 25A. It has a rigid glass reinforced polycarbonate enclosure.The enclosure is UV protected and protected against low-pressure water jet and hence built for outdoor and indoor use.
Position of PE terminals top In bottom out
Pollution degree is 3
