Eaton 3-Pole Surface Mount Isolator Switch -, IP65, 32A, 30 kW

RS Stock No.:: 180-9318
Mfr. Part No.:: 207365 P3-63/I4-SI/N
Brand:: Eaton

Eaton 3-Pole Surface Mount Isolator Switch -, IP65, 32A, 30 kW

Subtotal (1 unit)*

£172.27

(exc. VAT)

£206.72

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

22 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£172.27

*price indicative

Stop. Switch. Secure. Eaton’s Smart Safety Combo

Ensure total control and safety with Eaton’s Emergency Stop Push Buttons and Isolator Switches - engineered for rapid response and reliable isolation in every critical moment.

Shop here

RS Stock No.:: 180-9318
Mfr. Part No.:: 207365 P3-63/I4-SI/N
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Number of Poles	3
	Product Type	Isolator Switch
	Mount Type	Surface Mount
	IP Rating	IP65
	Electrical Phase	3
	Handle Colour	Black
	Series	P3-63
	Switching Current	32A
	Terminal Type	Screw
	Auxiliary Contacts Available	No
	Switching Power	30kW
	Minimum Operating Temperature	-25°C
	Switching AC Voltage	690V ac
	Switching DC Voltage	60V dc
	Padlock Compatibility	Yes
	Maximum Operating Temperature	40°C
	Length	160mm
	Depth	240mm
	Hazardous Area Certification	NO
	Standards/Approvals	CSA, IEC, RoHS, UL, VDE
	Width	139mm

	Select all
	Brand Eaton
	Number of Poles 3
	Product Type Isolator Switch
	Mount Type Surface Mount
	IP Rating IP65
	Electrical Phase 3
	Handle Colour Black
	Series P3-63
	Switching Current 32A
	Terminal Type Screw
	Auxiliary Contacts Available No
	Switching Power 30kW
	Minimum Operating Temperature -25°C
	Switching AC Voltage 690V ac
	Switching DC Voltage 60V dc
	Padlock Compatibility Yes
	Maximum Operating Temperature 40°C
	Length 160mm
	Depth 240mm
	Hazardous Area Certification NO
	Standards/Approvals CSA, IEC, RoHS, UL, VDE
	Width 139mm

RoHS Status: Exempt

Eaton Isolator Switch, M5 Terminal Screw Size, 690V Maximum Rated Operation Voltage - 207365 P3-63/I4-SI/N

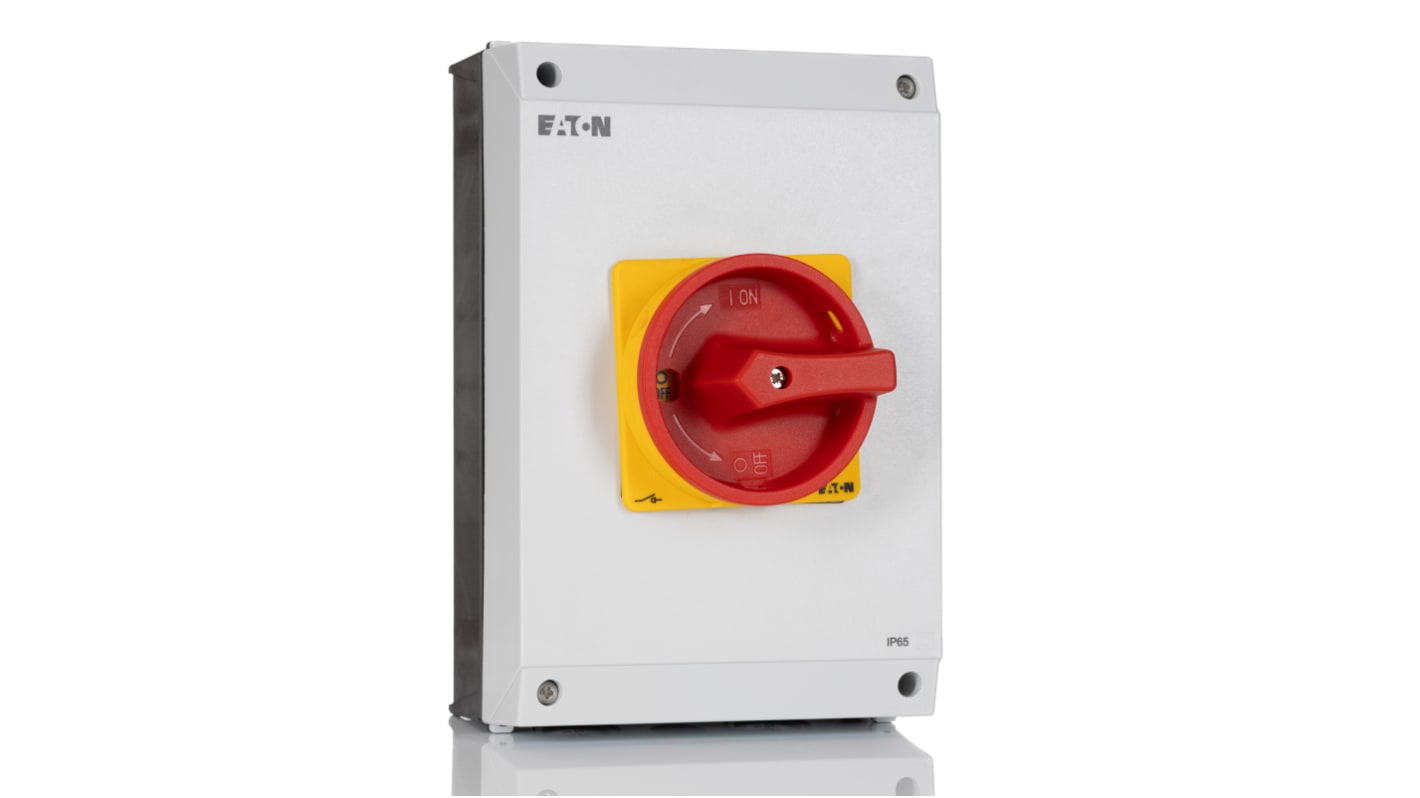

Set your sights on safe maintenance of industrial equipment with this isolator switch from Eaton. It's a versatile unit that acts as a maintenance or emergency controller, as you can use it to cut the power to your machine in the event of a fault or scheduled servicing. A 3P+N configuration makes it the right choice for three-phase networks, with a neutral pole to reduce the risk of damage from transient overvoltage. Thanks to a 63A current rating, this isolator switch fits the bill for heavy-duty applications. It comes in an insulated enclosure to keep electrical hazards at bay and ensure you're in safe hands during use.

Features & Benefits

• Withstands harsh conditions thanks to an operating temperature range between -25°C and +40°C

• Screw termination method is simple and time-saving

• 6kV rated impulse withstand voltage means it handles sudden power spikes without a hitch

• Handles over 100,000 mechanical operations, assuring you of long-lasting service

How do I operate this switch?

This unit has a recessed rotary handle that's ergonomically shaped to give you a good grip. The ON and OFF positions are clearly marked, so you'll be in no doubt that you've turned the switch in the right direction.
