Eaton 3-Pole Surface Mount Isolator Switch -, IP65, 25A, 15 kW

RS Stock No.:: 180-9309
Mfr. Part No.:: 207329 P1-32/I2-SI
Brand:: Eaton

Eaton 3-Pole Surface Mount Isolator Switch -, IP65, 25A, 15 kW

Subtotal (1 unit)*

£82.57

(exc. VAT)

£99.08

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

3 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£82.57

*price indicative

Stop. Switch. Secure. Eaton’s Smart Safety Combo

Ensure total control and safety with Eaton’s Emergency Stop Push Buttons and Isolator Switches - engineered for rapid response and reliable isolation in every critical moment.

Shop here

RS Stock No.:: 180-9309
Mfr. Part No.:: 207329 P1-32/I2-SI
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Number of Poles	3
	Product Type	Isolator Switch
	Mount Type	Surface Mount
	IP Rating	IP65
	Electrical Phase	3
	Handle Colour	Red
	Series	P1-32
	Auxiliary Contacts Available	Yes
	Switching Current	25A
	Terminal Type	Screw
	Switching DC Voltage	60V dc
	Switching AC Voltage	690V ac
	Padlock Compatibility	Yes
	Switching Power	15kW
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	40°C
	Length	100mm
	Depth	160mm
	Hazardous Area Certification	NO
	Standards/Approvals	CSA, IEC, RoHS, UL, VDE
	Width	115mm

	Select all
	Brand Eaton
	Number of Poles 3
	Product Type Isolator Switch
	Mount Type Surface Mount
	IP Rating IP65
	Electrical Phase 3
	Handle Colour Red
	Series P1-32
	Auxiliary Contacts Available Yes
	Switching Current 25A
	Terminal Type Screw
	Switching DC Voltage 60V dc
	Switching AC Voltage 690V ac
	Padlock Compatibility Yes
	Switching Power 15kW
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 40°C
	Length 100mm
	Depth 160mm
	Hazardous Area Certification NO
	Standards/Approvals CSA, IEC, RoHS, UL, VDE
	Width 115mm

RoHS Status: Exempt

COO (Country of Origin):: GB

Eaton Isolator Switch, 32A Maximum Current, 3 Poles - 207329 P1-32/I2-SI

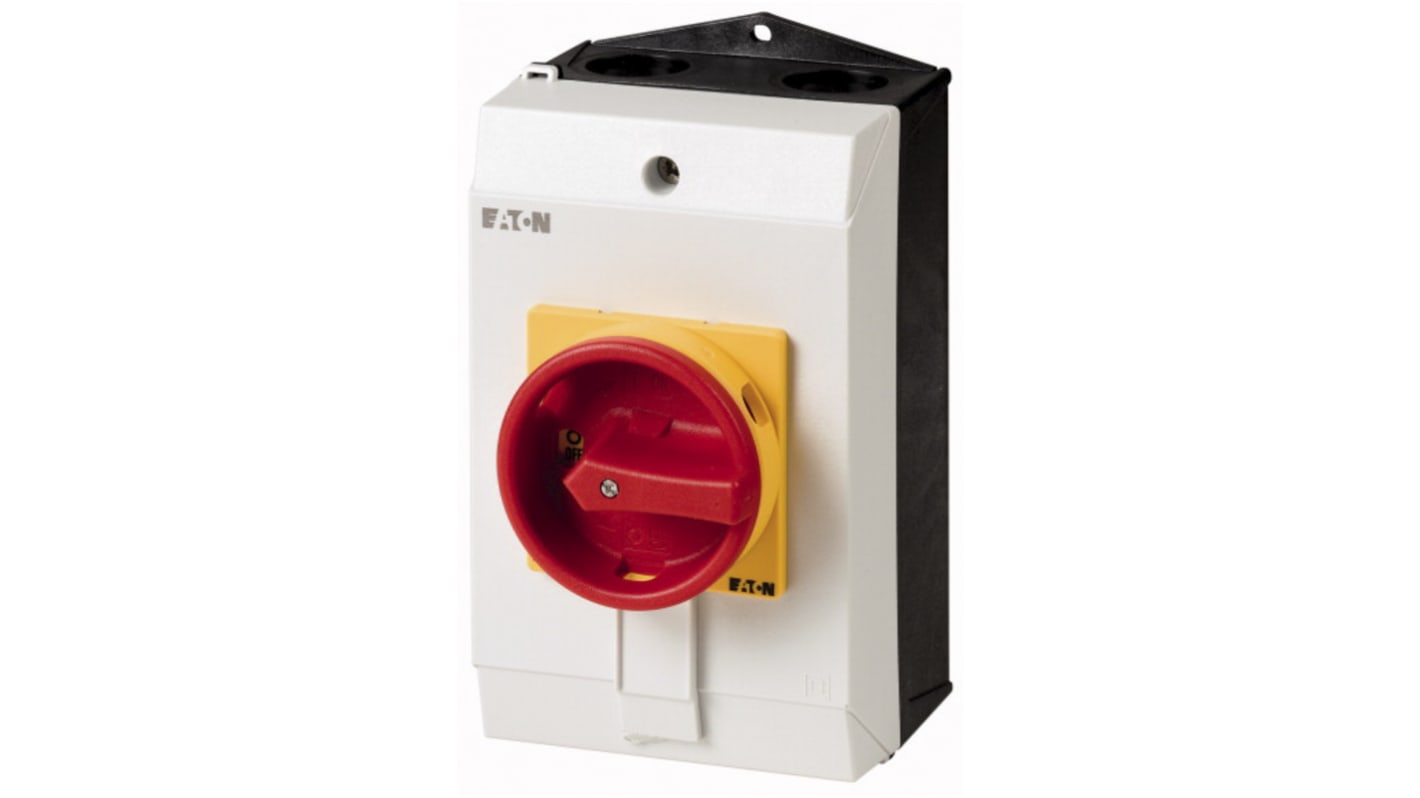

This isolator switch is a robust 3 pole model designed for industrial applications. Constructed for surface mounting, it offers a maximum current of 32A and can operate at a voltage of 690V AC. With a Compact size of 125mm in length, 100mm in width, and 125mm in depth, this switch also features an IP65 rating, making it suitable for various environments.

Features & Benefits

• Designed for high power applications up to 15kW
• Suitable for surface mount installation for ease of use
• Compatible with padlocks for enhanced safety and security
• NO/NC switch configuration allows versatile operation
• Terminal type is screw for secure connections

Applications

• Utilised in electrical distribution systems
• Ideal for motor control and machinery isolation
• Effective in manufacturing and processing plants
• Used in commercial electrical installations

What is the maximum operating temperature for this device?

The maximum operating temperature is +40°C, ensuring it functions effectively under standard industrial conditions.

How does the NO/NC configuration enhance functionality?

This configuration provides flexibility, allowing users to implement both normally open and normally closed functionality for different applications.

What are the dimensions of this product?

The switch measures 125mm in length, 100mm in width, and 125mm in depth, ensuring it fits well in Compact spaces.

Can it withstand tough environmental conditions?

With an IP65 rating, it effectively protects against dust and water, making it suitable for use in harsh environments.

Note

Eaton formerly known as Moeller
