Eaton 3-Pole Surface Mount Isolator Switch -, IP65, 32A, 18.5 kW

RS Stock No.:: 254-905
Mfr. Part No.:: 255912 T3-3-15683/I2/SVB-NA
Brand:: Eaton

Eaton 3-Pole Surface Mount Isolator Switch -, IP65, 32A, 18.5 kW

Subtotal (1 unit)*

£150.69

(exc. VAT)

£180.83

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 01 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£150.69

*price indicative

Stop. Switch. Secure. Eaton’s Smart Safety Combo

Ensure total control and safety with Eaton’s Emergency Stop Push Buttons and Isolator Switches - engineered for rapid response and reliable isolation in every critical moment.

Shop here

RS Stock No.:: 254-905
Mfr. Part No.:: 255912 T3-3-15683/I2/SVB-NA
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Isolator Switch
	Number of Poles	3
	Mount Type	Surface Mount
	IP Rating	IP65
	Electrical Phase	1, 3
	Handle Colour	Yellow, Red
	Switching Current	32A
	Series	Moeller
	Auxiliary Contacts Available	Yes
	Terminal Type	Screw
	Minimum Operating Temperature	-25°C
	Switching Power	18.5kW
	Padlock Compatibility	Yes
	Switching AC Voltage	690V ac
	Switching DC Voltage	60V dc
	Maximum Operating Temperature	40°C
	Depth	187mm
	Hazardous Area Certification	NO
	Standards/Approvals	IEC/EN 60947-3, IEC/EN 60204, CSA-C22.2 No. 94, CSA-C22.2 No. 60947-4-1-14, CE, UL 60947-4-1, VDE 0660
	Length	206mm
	Width	135mm

	Select all
	Brand Eaton
	Product Type Isolator Switch
	Number of Poles 3
	Mount Type Surface Mount
	IP Rating IP65
	Electrical Phase 1, 3
	Handle Colour Yellow, Red
	Switching Current 32A
	Series Moeller
	Auxiliary Contacts Available Yes
	Terminal Type Screw
	Minimum Operating Temperature -25°C
	Switching Power 18.5kW
	Padlock Compatibility Yes
	Switching AC Voltage 690V ac
	Switching DC Voltage 60V dc
	Maximum Operating Temperature 40°C
	Depth 187mm
	Hazardous Area Certification NO
	Standards/Approvals IEC/EN 60947-3, IEC/EN 60204, CSA-C22.2 No. 94, CSA-C22.2 No. 60947-4-1-14, CE, UL 60947-4-1, VDE 0660
	Length 206mm
	Width 135mm

Datasheet - 255912 T3-3-15683/I2/SVB-NA

RoHS Status: Exempt

COO (Country of Origin):: GB

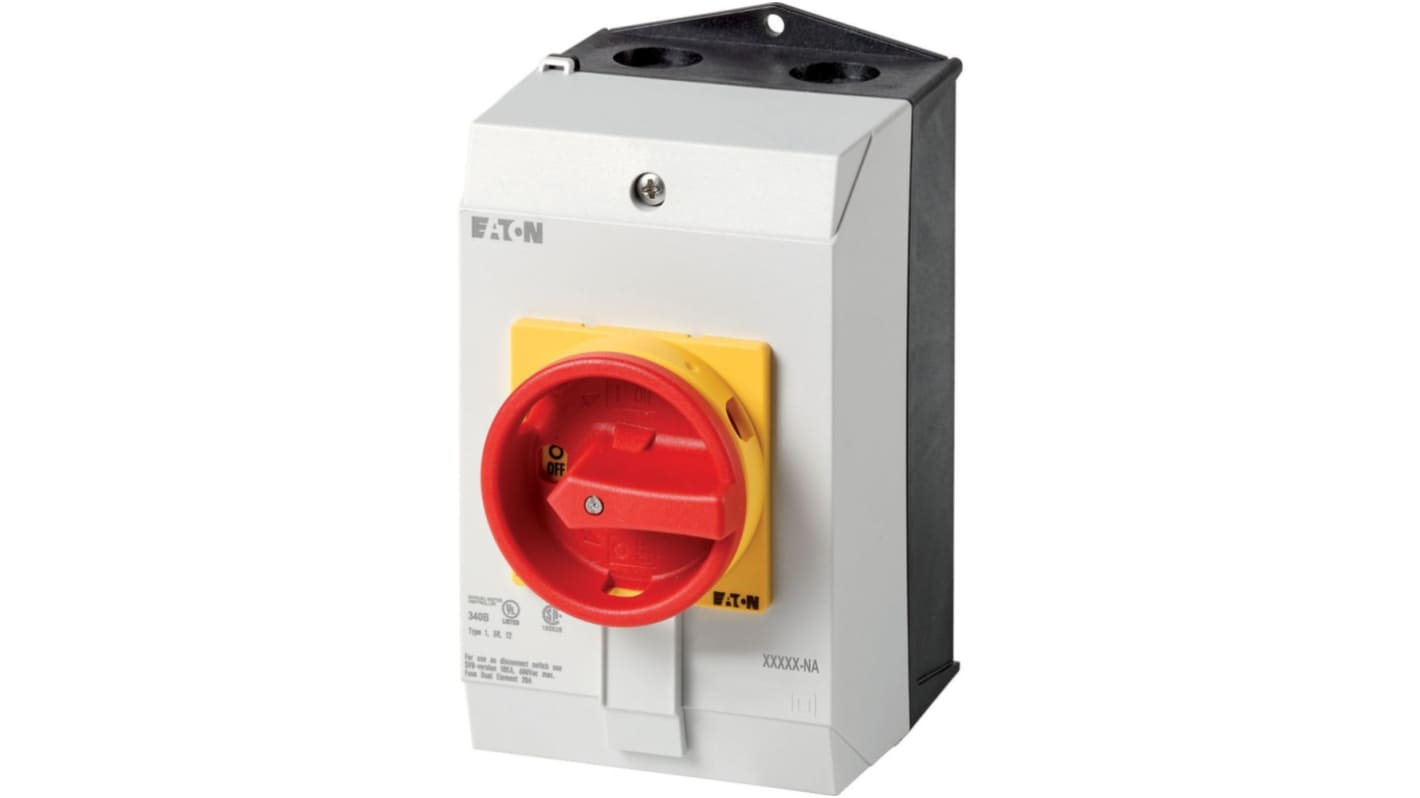

The Eaton Moeller series T3 Main Switch is designed for robust performance in demanding environments. This surface-mounted device features a red rotary handle and a durable housing, ensuring reliable operation even under heavy use. With a rated operational current of 32 A and a comprehensive array of certifications, it meets stringent international standards, making it suitable for various industrial applications. Engineered with safety as a priority, this device includes an emergency switching off function, ensuring immediate action can be taken in critical situations. The combination of thoughtful design and advanced engineering makes the T3 Main Switch a trusted choice for professionals.

Employs an interlockable design for added safety

Features a wide range of operational temperatures from -25 °C to 40 °C

Rated for 1200 operations per hour, ensuring high reliability

Provides a degree of protection rated at IP65, making it suitable for harsher environments

Boasts a lifespan of 500,000 mechanical operations for long-lasting performance

Compatible with various auxiliary contact configurations

Offers a compact size and convenient mounting position for easy installation

Supports a variety of rated operational powers and currents for flexible application

Constructed to withstand mechanical shocks up to 12 g

Easily maintains operational clarity with clear markings and labels
