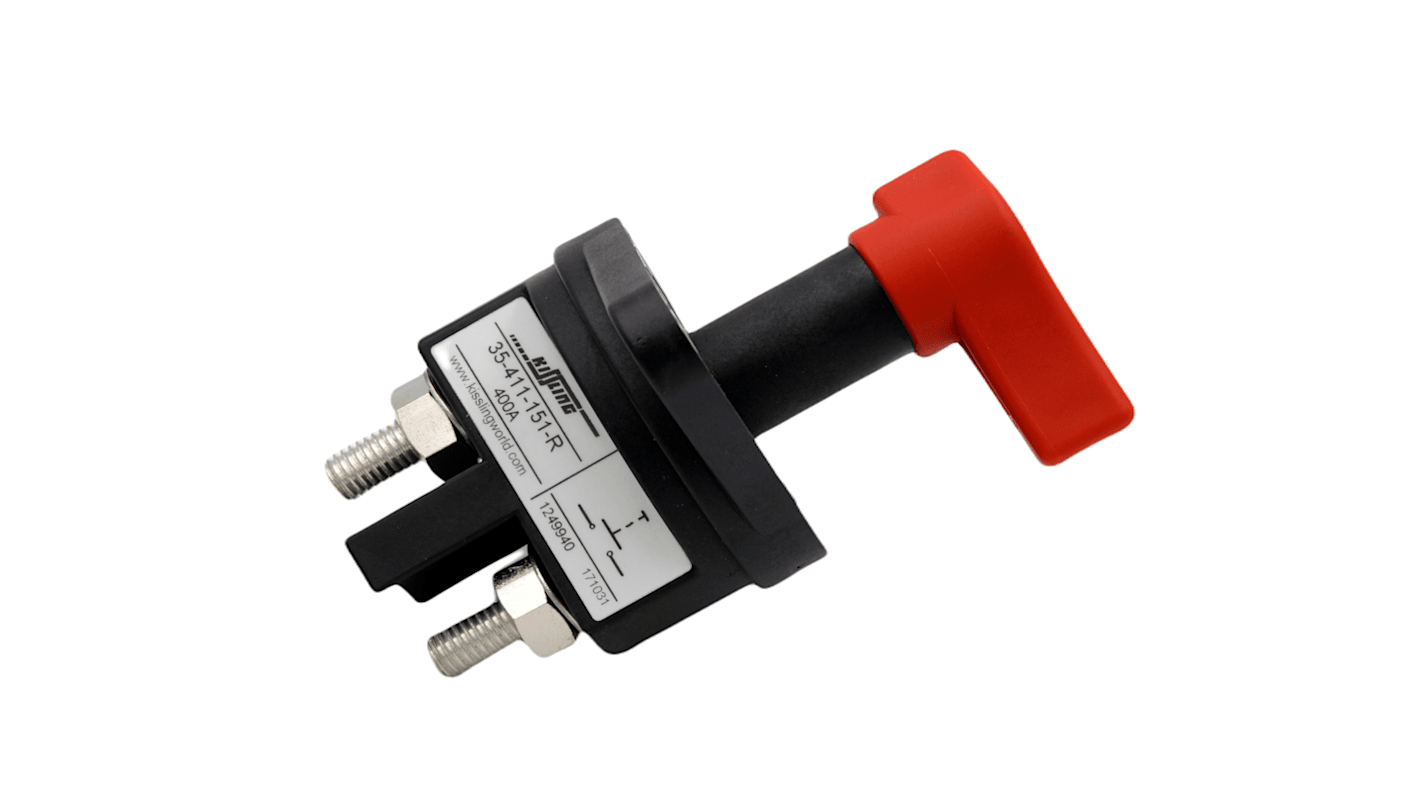

TE Connectivity 1-Pole Center Switch Disconnector -, IP67, IP6K9, 400A
- RS Stock No.:
- 170-717
- Mfr. Part No.:
- 35-413-151-R
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£86.75
(exc. VAT)
£104.10
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 11 unit(s) shipping from 12 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £86.75 |
*price indicative
- RS Stock No.:
- 170-717
- Mfr. Part No.:
- 35-413-151-R
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Poles | 1 | |
| Product Type | Switch Disconnector | |
| Mount Type | Center | |
| IP Rating | IP67, IP6K9 | |
| Electrical Phase | 1 | |
| Handle Colour | Black | |
| Switching Current | 400A | |
| Series | KISSLING Series 35 | |
| Auxiliary Contacts Available | No | |
| Terminal Type | Threaded M10 | |
| Padlock Compatibility | Yes | |
| Minimum Operating Temperature | -40°C | |
| Switching DC Voltage | 32V dc | |
| Maximum Operating Temperature | 85°C | |
| Length | 122mm | |
| Width | 98mm | |
| Standards/Approvals | IEC 529 | |
| Hazardous Area Certification | NO | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Poles 1 | ||
Product Type Switch Disconnector | ||
Mount Type Center | ||
IP Rating IP67, IP6K9 | ||
Electrical Phase 1 | ||
Handle Colour Black | ||
Switching Current 400A | ||
Series KISSLING Series 35 | ||
Auxiliary Contacts Available No | ||
Terminal Type Threaded M10 | ||
Padlock Compatibility Yes | ||
Minimum Operating Temperature -40°C | ||
Switching DC Voltage 32V dc | ||
Maximum Operating Temperature 85°C | ||
Length 122mm | ||
Width 98mm | ||
Standards/Approvals IEC 529 | ||
Hazardous Area Certification NO | ||
- COO (Country of Origin):
- SK
35-413-151-R
The TE Connectivity Manually operated battery disconnector up to 400 amps meets the most demanding requirements in all vehicle applications. The nominal current ratings refer to continuous DC current at up to 100% duty cycle and the switches are built to switch under full load.
Robust design
6G shock and 4G vibration resistant
Sealed housing conforms to IP6K9K
Battery disconnection under load in case of an emergency
