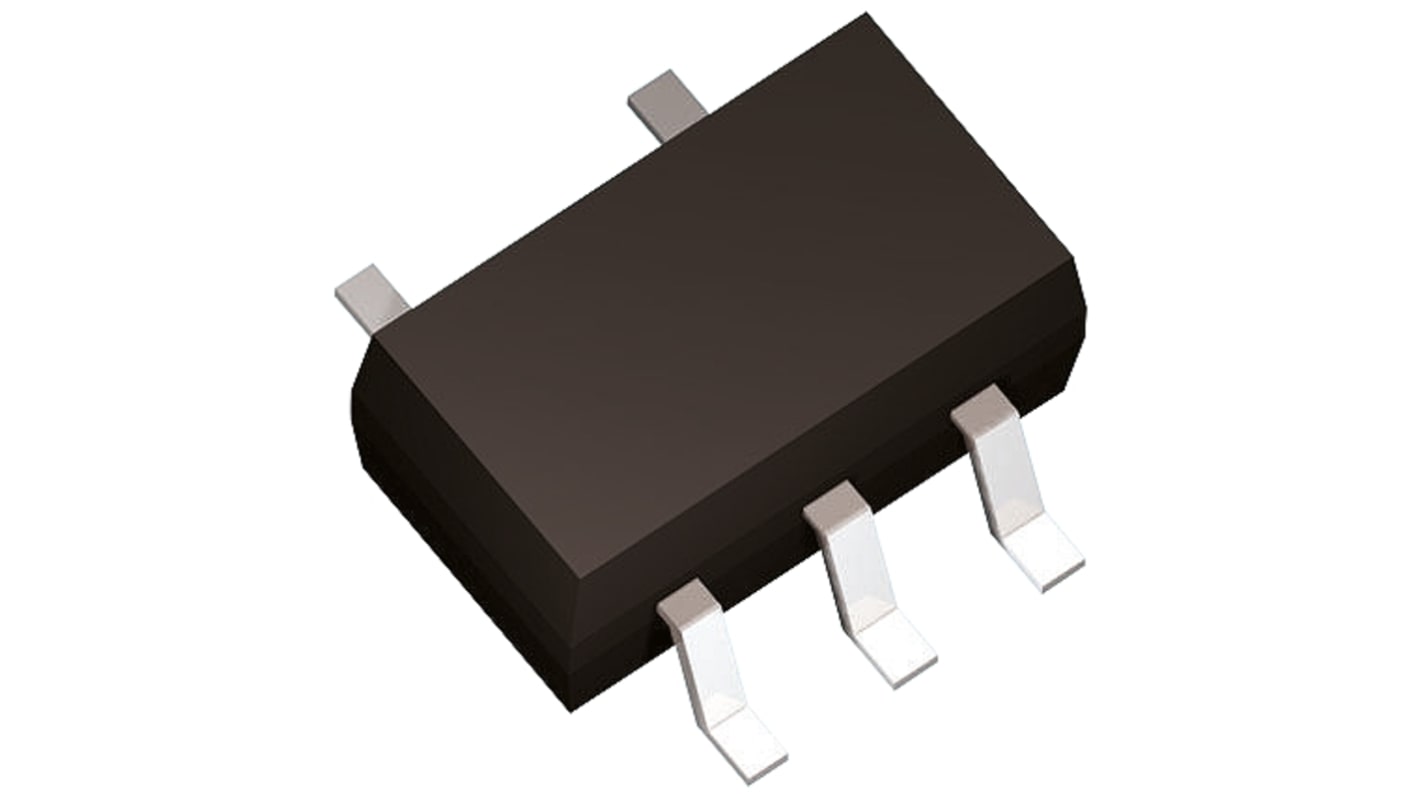

Nexperia 74HC1G14GV,125 Schmitt Trigger Inverter, 5-Pin SC-74A
- RS Stock No.:
- 146-0874
- Mfr. Part No.:
- 74HC1G14GV,125
- Brand:
- Nexperia
Subtotal (1 reel of 3000 units)*
£153.00
(exc. VAT)
£183.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 September 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.051 | £153.00 |
*price indicative
- RS Stock No.:
- 146-0874
- Mfr. Part No.:
- 74HC1G14GV,125
- Brand:
- Nexperia
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Logic Function | Inverter | |
| Input Type | Schmitt Trigger | |
| Output Type | Single Ended | |
| Schmitt Trigger Input | Yes | |
| Maximum Propagation Delay Time @ Maximum CL | 190 ns @ 50 pF | |
| Maximum High Level Output Current | -2mA | |
| Maximum Low Level Output Current | 2.6mA | |
| Mounting Type | Surface Mount | |
| Package Type | SC-74A | |
| Pin Count | 5 | |
| Logic Family | HC | |
| Dimensions | 3.1 x 1.7 x 1mm | |
| Maximum Operating Supply Voltage | 6 V | |
| Height | 1mm | |
| Width | 1.7mm | |
| Length | 3.1mm | |
| Propagation Delay Test Condition | 50pF | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Supply Voltage | 2 V | |
| Minimum Operating Temperature | -40 °C | |
