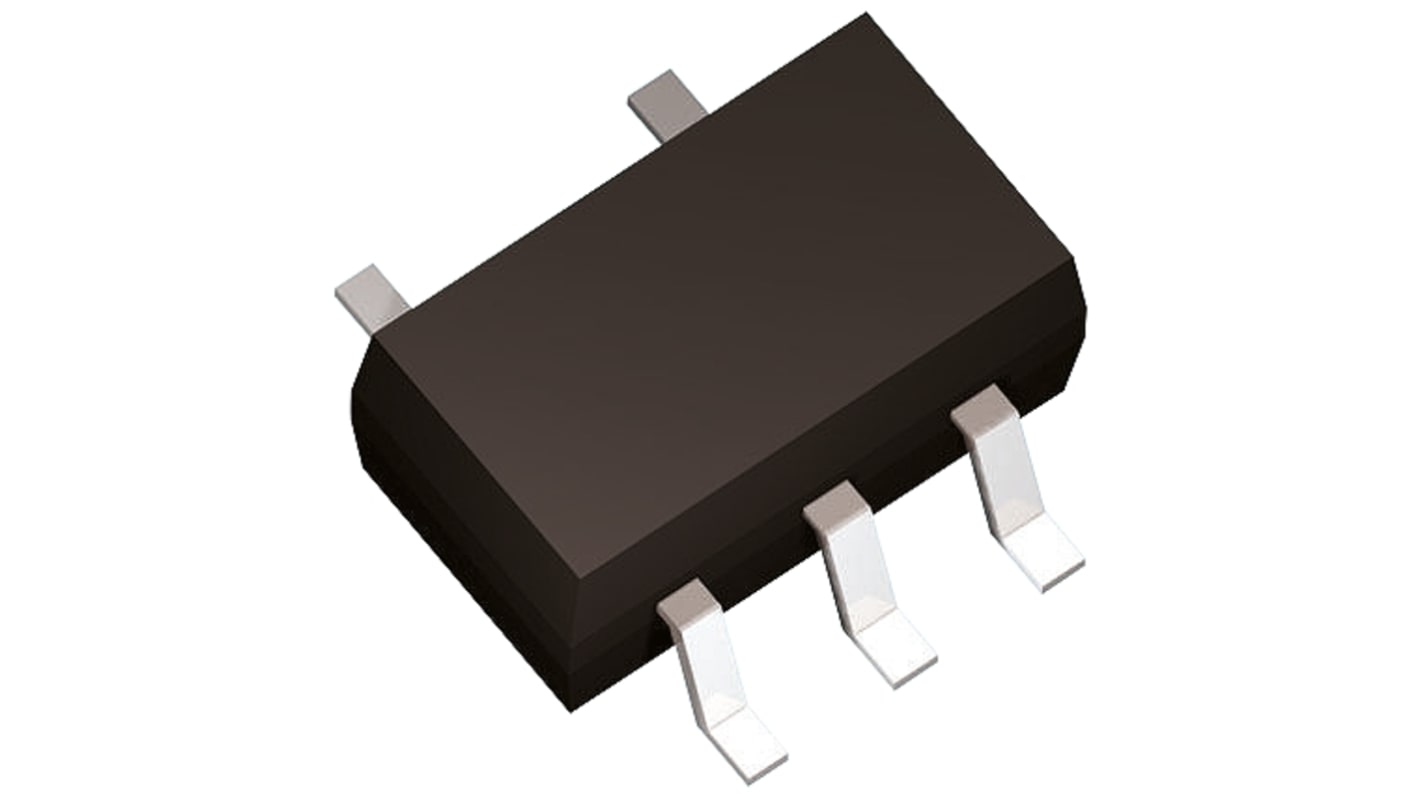

Nexperia 74AHC1G14GV,125 Schmitt Trigger CMOS Inverter, 5-Pin SC-74

View all Inverters ICs
Bulk discount available

Subtotal (1 pack of 100 units)*

£12.80

(exc. VAT)

£15.40

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 800 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
100 - 100£0.128£12.80
200 - 400£0.102£10.20
500 - 900£0.10£10.00
1000 - 1900£0.089£8.90
2000 +£0.082£8.20

*price indicative

Packaging Options:
RS Stock No.:
813-9210
Mfr. Part No.:
74AHC1G14GV,125
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Logic Function

Inverter

Input Type

Schmitt Trigger

Output Type

Single Ended

Number of Elements per Chip

1

Schmitt Trigger Input

Yes

Maximum Propagation Delay Time @ Maximum CL

13.5 ns @ 50 pF

Maximum High Level Output Current

-8mA

Maximum Low Level Output Current

8mA

Mounting Type

Surface Mount

Package Type

SC-74

Pin Count

5

Logic Family

AHC

Dimensions

3.1 x 1.7 x 1mm

Height

1mm

Maximum Operating Supply Voltage

5.5 V

Minimum Operating Temperature

-40 °C

Minimum Operating Supply Voltage

2 V

Maximum Operating Temperature

+125 °C

Length

3.1mm

Propagation Delay Test Condition

50pF

Width

1.7mm

COO (Country of Origin):
MY

74AHC1G/74AHC2G Family, Nexperia


Single and dual gate packages
CMOS input, CMOS output
Operating voltage 2 to 5.5 V


74AHC Family
