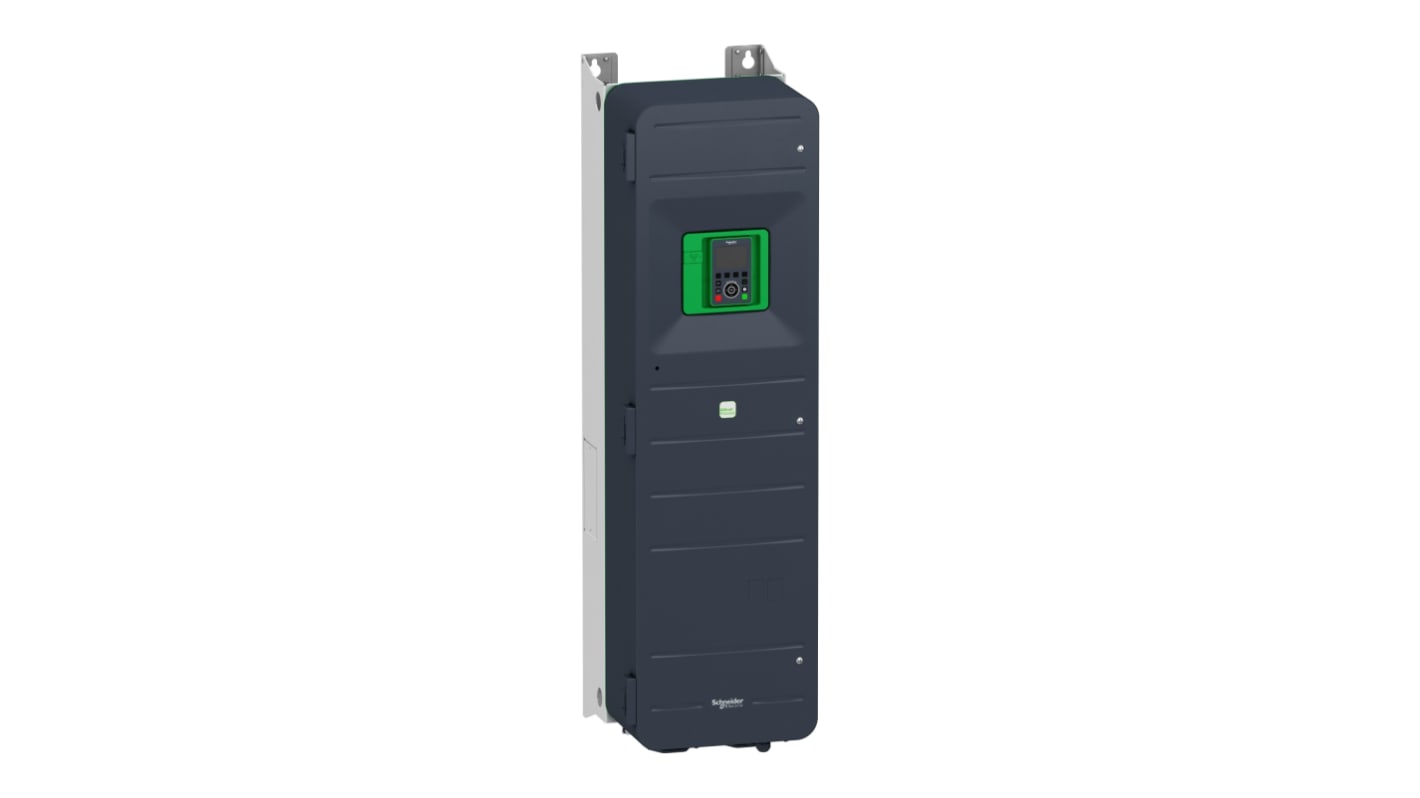

Schneider Electric Variable Speed Drive, 55 kW, 3 Phase, Altivar Series 400V 84.2 A
- RS Stock No.:
- 275-6757
- Mfr. Part No.:
- ATV950D55N4
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£7,574.95
(exc. VAT)
£9,089.94
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7,574.95 |
*price indicative
- RS Stock No.:
- 275-6757
- Mfr. Part No.:
- ATV950D55N4
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Power Rating | 55kW | |
| Product Type | Variable Speed Drive | |
| Number of Phases | 3 | |
| Maximum Output Current | 84.2A | |
| Series | Altivar | |
| Mount Type | Wall | |
| IP Rating | IP55 | |
| Overall Length | 345mm | |
| Output Frequency | 599Hz | |
| Minimum Supply Voltage | 400V | |
| Maximum Supply Voltage | 400V | |
| Minimum Operating Temperature | -15°C | |
| Compatible Motor Type | Asynchronous Motor, Synchronous | |
| Drive Type | Variable Speed | |
| Maximum Operating Temperature | 40°C | |
| Overall Width | 1250mm | |
| Standards/Approvals | TUV, CE, CSA, EN 61800, UL | |
| Overall Depth | 375mm | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Power Rating 55kW | ||
Product Type Variable Speed Drive | ||
Number of Phases 3 | ||
Maximum Output Current 84.2A | ||
Series Altivar | ||
Mount Type Wall | ||
IP Rating IP55 | ||
Overall Length 345mm | ||
Output Frequency 599Hz | ||
Minimum Supply Voltage 400V | ||
Maximum Supply Voltage 400V | ||
Minimum Operating Temperature -15°C | ||
Compatible Motor Type Asynchronous Motor, Synchronous | ||
Drive Type Variable Speed | ||
Maximum Operating Temperature 40°C | ||
Overall Width 1250mm | ||
Standards/Approvals TUV, CE, CSA, EN 61800, UL | ||
Overall Depth 375mm | ||
RoHS Status: Exempt
The Schneider Electric variable speed drive can feed 3-phase synchronous and asynchronous power motors. This variable speed / frequency drive is specifically designed for industrial processes in market segments, oil and gas, mining, minerals and metals, food and beverage water and wastewater.
High motor performance
Reduced downtime
