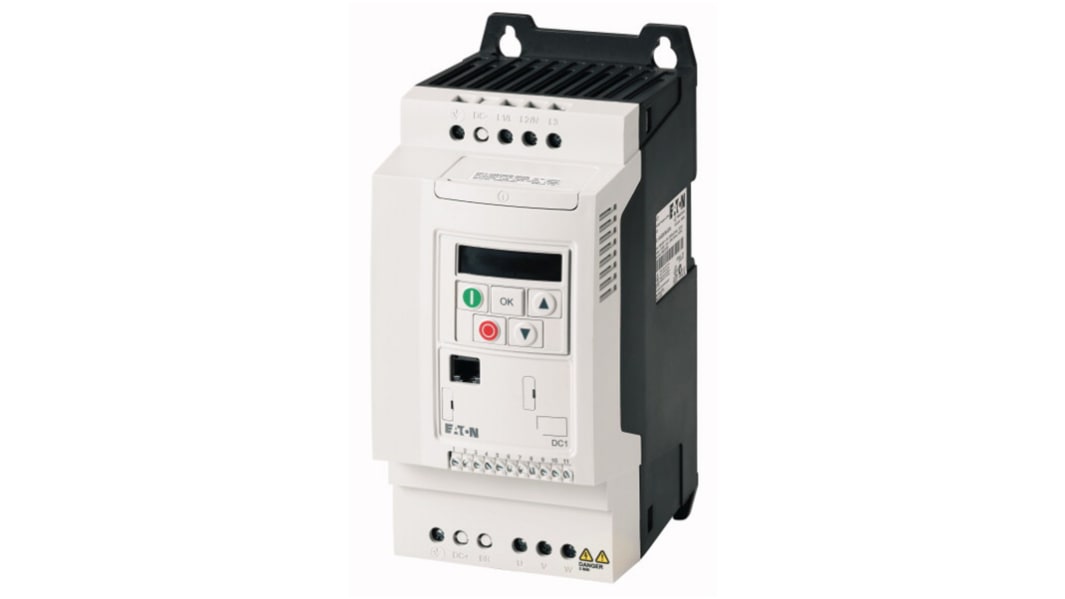

Eaton Inverter Drive, 2.2 kW, 3 Phase, DC1 Series 480 V 8.7 A

View all Inverter Drives

Subtotal (1 unit)*

£557.23

(exc. VAT)

£668.68

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£557.23

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
134-8005
Mfr. Part No.:
185752 DC1-345D8FB-A20CE1
Brand:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Product Type

Inverter Drive

Power Rating

2.2kW

Number of Phases

3

Maximum Output Current

8.7A

Series

DC1

Mount Type

Flange

Overall Length

107mm

IP Rating

IP20

Output Frequency

50Hz

Minimum Supply Voltage

380V

Maximum Supply Voltage

480V

Drive Type

Vector Control

Compatible Motor Type

Asynchronous Motor

Minimum Operating Temperature

-10°C

Maximum Operating Temperature

50°C

Standards/Approvals

CE, cUL, EAC, RCM, UkrSEPRO, UL

Overall Width

152mm

Better World Product

Yes

Better World Claim

Saves Energy

Overall Depth

231mm

COO (Country of Origin):
GB

Eaton PowerXL Compact Inverter Drives DC1 Series - Three-Phase Input 400V


The Eaton DC1 inverter series of compact variable frequency drives have been specifically designed for simple applications. With only 14 basic parameters and simple mounting and installation, the DC1 drives are perfect for quick commissioning. These compact variable frequency drives are ideal for mass production applications in the field of machine building. Expansion modules can be easily plugged into these drives and make it possible to expand the number of I/Os. Typical applications for these drives include fans, pumps, and conveyor systems.

Features and Benefits


• Three-phase input / three-phase motor connection

• Digital LED display

• These drives can be used as stand-alone units directly on-site if they are equipped with a setpoint potentiometer, a selector switch, and a mains transfer switch.

• Fast commissioning with 14 basic parameters

• V/Hz control with start voltage boost and slip compensation

• Integrated PI controller

• Integrated CANopen and Modbus

• Large overload capability: 150% for 60 seconds, 175% for 2 seconds

• A high-performance range of 0.37kW to 22 kW for maximum flexibility

• IP20 & IP66 rated enclosure

How do Inverter Drives Work?


Inverter drive, also known as AC drives, variable frequency drives (VFD) variable speed drives (VSD) or frequency converters, are a type of speed drive that allows you as the user to adjust the speed or output torque of electric motors. Inverter drives are controlled by inputting specific frequencies or parameters into the device to tell it what to do, allowing for greater control over your machinery and operations. These drives have many applications of use from small appliances like a simple fan and pump load all the way through to high torque machine control applications.

Eaton PowerXL DC1


Note

Eaton formerly known as Moeller
