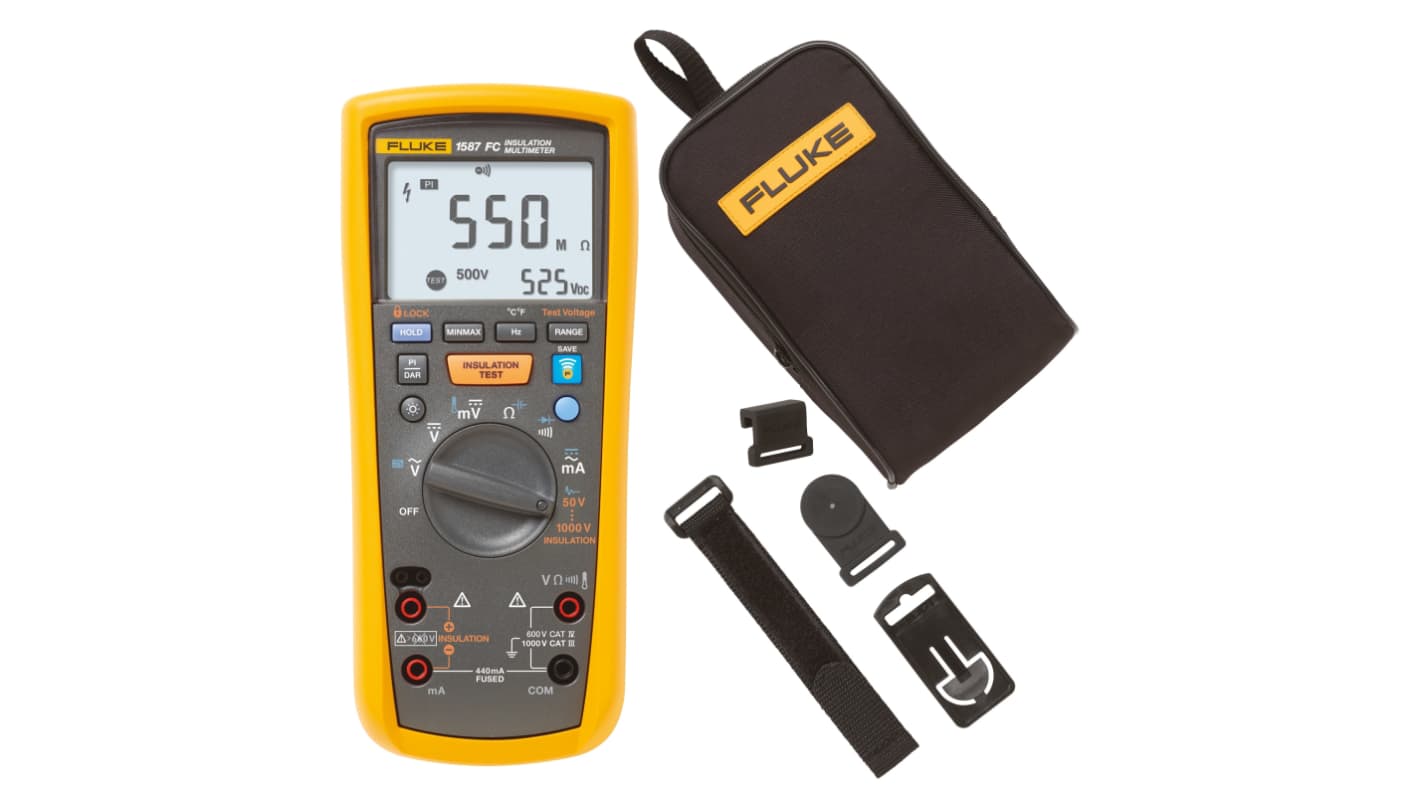

Fluke 1587FC/TPAK/C25 Insulation Multimeter, 50 V Min, 1000 V Max, 2 GΩ CAT III 1000 V, CAT IV 600 V, UKAS

View all Insulation Testers

Subtotal (1 unit)*

£920.00

(exc. VAT)

£1,104.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£920.00

*price indicative

Insulation Tester Accessories
Browse here for all your Insulation Tester Accessories, including crocodile clips, cases, probes, and leads.
Shop Now
RS Stock No.:
458-116
Mfr. Part No.:
FLK-1587FC/TPAK/C25
Brand:
Fluke
Find similar products by selecting one or more attributes.
Select all

Brand

Fluke

Model Number

1587FC/TPAK/C25

Product Type

Insulation Tester

Tester Type

Insulation Multimeter

Maximum Test Voltage

1000V

Minimum Test Voltage

50V

Display Type

Backlight

Test Current

1mA

Power Source

Battery

Battery Life

1000h

Battery Type

AA

Insulation Testing Resistance

2GΩ

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

55°C

Safety Category Voltage

1000, 600V

Safety Category Level

CAT III 1000 V, CAT IV 600 V

Standards/Approvals

IEC 610102033, IEC 610101, IEC 60529: IP40, IEC 6132622, IEC 613261, CISPR 11

Width

10cm

Length

2030000.00mm

Height

5cm

Calibrated

UKAS

Weight

550g

COO (Country of Origin):
US

Fluke Insulation Tester, 1000V Maximum Test Voltage, 2GΩ Insulation Testing Resistance - FLK-1587FC/TPAK/C25


This insulation tester is a handheld, battery-powered instrument that combines insulation resistance measurement with multimeter functions for field diagnostics and preventive maintenance in industrial environments. It is designed for use on live and de-energised equipment, providing insulation resistance up to very high values and selectable test voltages to assess insulation condition under controlled test currents. The unit is suited to technicians working on motors, drives and electrical systems where portable, rugged measurement capability is required.

Features & Benefits


• Insulation range to 2GΩ for detecting high-resistance faults
• Test voltages selectable up to 1000V for versatile inspections
• Nominal test current 1mA to exercise insulation without overload
• Live-circuit inhibit prevents testing if greater than 30V present for safety
• Backlit 6000-count display for clear readings in low light
• Operates on AA batteries delivering around 1000 h of meter use

**Applications**


• Suitable for motor winding insulation assessment with VFDs
• Ideal for commissioning and preventive maintenance checks
• Used for troubleshooting insulation degradation on switchgear
• Can be used for asset baseline recording in industrial plants
• Suitable for on-site field testing of cables and installations

How does the instrument handle capacitive loads during insulation tests?


It is operable with capacitive loads up to 1 μF and auto-discharges capacitive voltage rapidly, with discharge time less than 0.5 s for C = 1 μF or less.

What environmental limits apply for onsite use?


The unit functions between -20 °C and 55 °C and can be stored between -40 °C and 60 °C

humidity limits vary with temperature up to 95% non‑condensing at 10 °C–30 °C.

What protection and safety categories does it meet?


It is rated for CAT III 1000V and CAT IV 600V measurement categories and meets IEC safety standards including IEC 61010 variants.

How is data handling supported for trend analysis and storage?


When used with compatible wireless tools and software it enables timed ratio tests, trend graphs, memory storage and temperature compensation via a measurements app.

What accessory options improve field usability?


Accessories include remote probe, test leads, crocodile clips, a magnetic hanger option and a soft case for site work.
