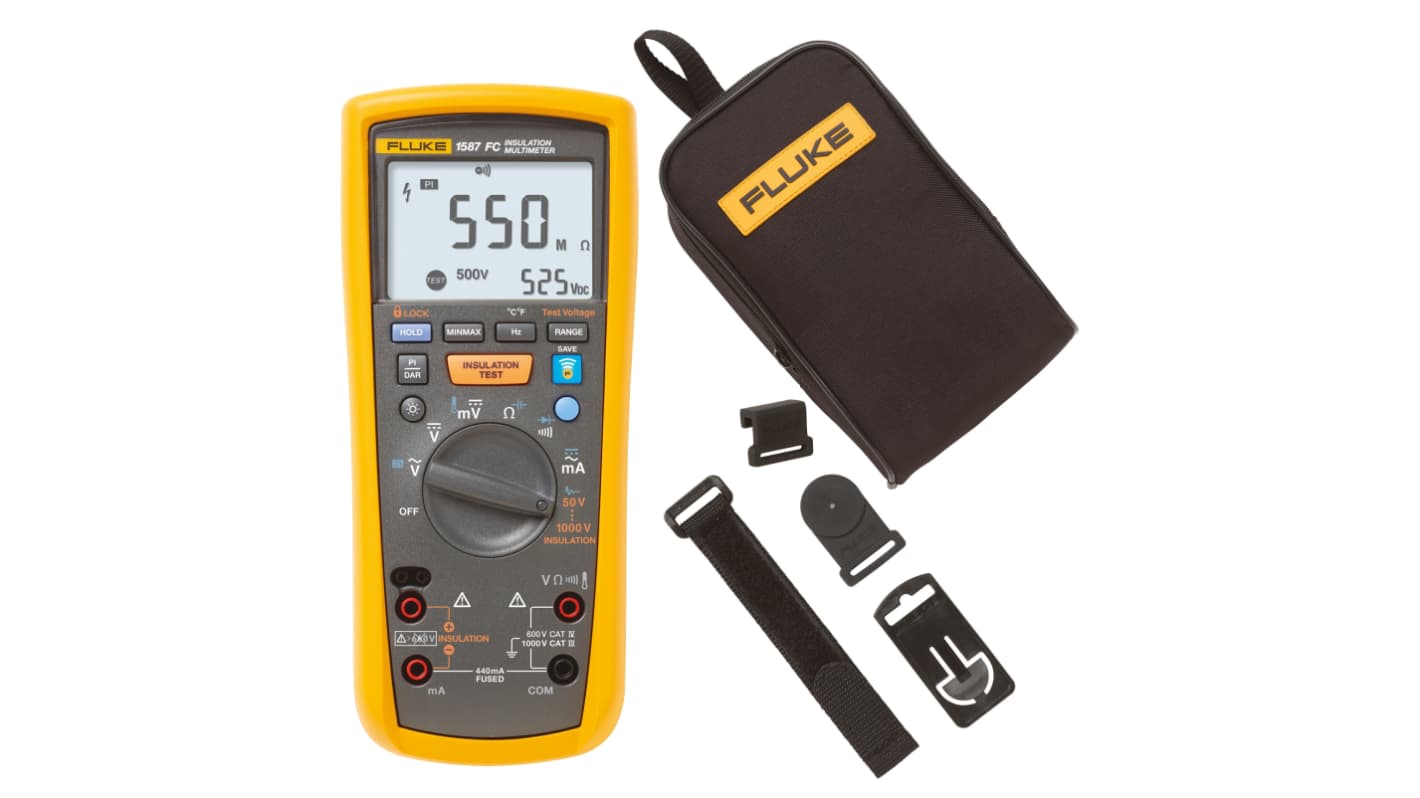

Fluke 1587FC/TPAK/C25 Insulation Multimeter, 50 V Min, 1 kV Max, 2 GΩ CAT III 1000 V, CAT IV 600 V

RS Stock No.:: 458-113
Mfr. Part No.:: FLK-1587FC/TPAK/C25
Brand:: Fluke

Fluke 1587FC/TPAK/C25 Insulation Multimeter, 50 V Min, 1 kV Max, 2 GΩ CAT III 1000 V, CAT IV 600 V

Subtotal (1 unit)*

£845.00

(exc. VAT)

£1,014.00

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit
1 +	£845.00

*price indicative

Calibration Options:

Fluke 1587FC/TPAK/C25 Insulation Multimeter, 50 V Min, 1 kV Max, 2 GΩ CAT III 1000 V, CAT IV 600 V, UKAS

Calibration Type:: UKAS

RS Stock No.: 458-116

Each

£920.00

(exc. VAT)

£1,104.00

(inc. VAT)

RS Stock No.:: 458-113
Mfr. Part No.:: FLK-1587FC/TPAK/C25
Brand:: Fluke

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Model Number	1587FC/TPAK/C25
	Product Type	Multimeter
	Tester Type	Insulation Multimeter
	Maximum Test Voltage	1kV
	Minimum Test Voltage	50V
	Display Type	Backlight
	Test Current	1mA
	Power Source	Battery
	Battery Type	AA
	Battery Life	1000h
	Minimum Operating Temperature	-20°C
	Insulation Testing Resistance	2GΩ
	Maximum Operating Temperature	55°C
	Safety Category Voltage	1kV, 600kV
	Safety Category Level	CAT III 1000 V, CAT IV 600 V
	Height	50mm
	Width	100mm
	Standards/Approvals	IEC 610102033, IEC 610101, IEC 60529: IP40, IEC 6132622, IEC 613261, CISPR 11
	Length	2.03km
	Weight	550g

	Select all
	Brand Fluke
	Model Number 1587FC/TPAK/C25
	Product Type Multimeter
	Tester Type Insulation Multimeter
	Maximum Test Voltage 1kV
	Minimum Test Voltage 50V
	Display Type Backlight
	Test Current 1mA
	Power Source Battery
	Battery Type AA
	Battery Life 1000h
	Minimum Operating Temperature -20°C
	Insulation Testing Resistance 2GΩ
	Maximum Operating Temperature 55°C
	Safety Category Voltage 1kV, 600kV
	Safety Category Level CAT III 1000 V, CAT IV 600 V
	Height 50mm
	Width 100mm
	Standards/Approvals IEC 610102033, IEC 610101, IEC 60529: IP40, IEC 6132622, IEC 613261, CISPR 11
	Length 2.03km
	Weight 550g

COO (Country of Origin):: US

Fluke Multimeter, 1000V Maximum Test Voltage, 2GΩ Insulation Testing Resistance - FLK-1587FC/TPAK/C25

This multimeter is a handheld insulation tester and true-rms digital multimeter designed for troubleshooting and preventative maintenance of electrical systems. It combines insulation resistance testing up to high values with comprehensive electrical measurements, a backlit display for visibility and safety ratings suitable for demanding industrial environments.

Features and Benefits:

• Insulation range to 2GΩ for locating high-resistance faults
• Maximum test voltage 1000V for broad application coverage
• Test current 1mA nominal to protect DUTs during testing
• Battery operation with AA cells delivers long battery life — 1000 h
• CAT III 1000V and CAT IV 600V safety categories for site use
• Backlit 6000-count display for clear readings in low light

Applications

• Suitable for motor winding insulation condition checks
• Ideal for periodic preventative maintenance on switchgear
• Used for troubleshooting insulation degradation in cables
• Can be used for recording insulation trends with an app
• Suitable for field measurements in industrial plants

What insulation test voltages are available?

Test voltages include 50V, 100V, 250V, 500V and 1000V depending on the selected mode.

How does the instrument prevent testing live circuits?

It inhibits insulation tests if Terminal voltage exceeds 30V prior to test initialisation.

What environmental range supports on-site operation?

It operates between -20°C and 55°C and can be stored between -40°C and 60°C.

What protection applies to the enclosure when not operating?

The enclosure meets IP40 for non-operating ingress protection.

What accessories are supplied for measurement versatility?

Supplied items include a remote probe, test leads, crocodile clips and a hard case.
