Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Phoenix Contact
	Number of Contacts	5
	Mounting Type	Cable Mount
	Connector Size	Standard
	Termination Method	IDC
	IP Rating	IP66, IP68, IP69K
	Current Rating	20.0A
	Series	QPD
	Voltage Rating	1.0 kV
	Housing Material	Polymer
	Contact Plating	Silver
	Contact Material	Copper
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+80°C

	Select all
	Brand Phoenix Contact
	Number of Contacts 5
	Mounting Type Cable Mount
	Connector Size Standard
	Termination Method IDC
	IP Rating IP66, IP68, IP69K
	Current Rating 20.0A
	Series QPD
	Voltage Rating 1.0 kV
	Housing Material Polymer
	Contact Plating Silver
	Contact Material Copper
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +80°C

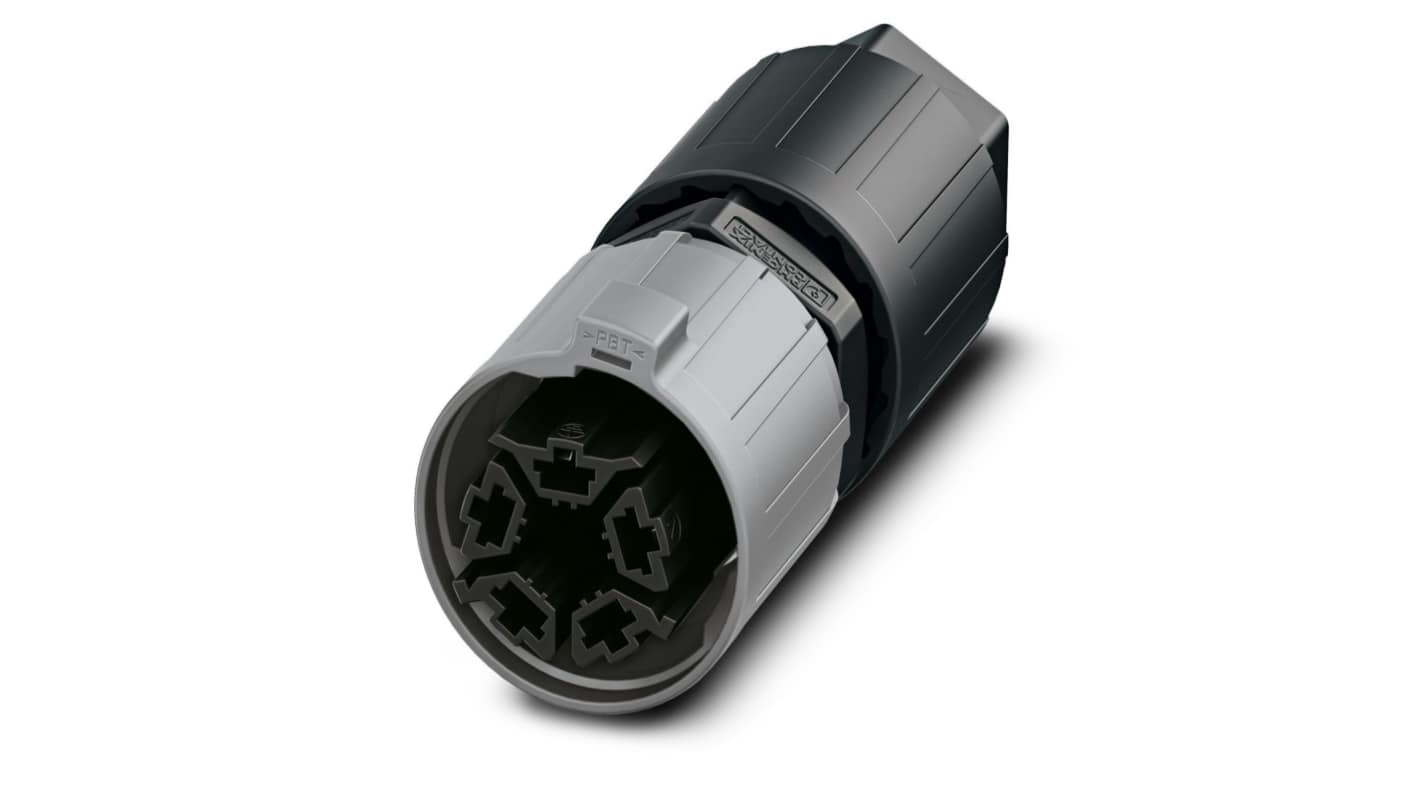

QUICKON connector, black, 4+PE-pos., 1.0 mm² ... 2.5 mm²/690 V/20 A, with QUICKON nut, for cables with 9 mm ... 16 mm diameter.

Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection

Convenient: quick and easy assembly without special tools

Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications

Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105

Easy maintenance - the connectors enable fast device replacement and simplify startup thanks to pre-assembled cables

Phoenix Contact Circular Connector, 5 Contacts, Cable Mount, IP66, IP68, IP69K, QPD Series
