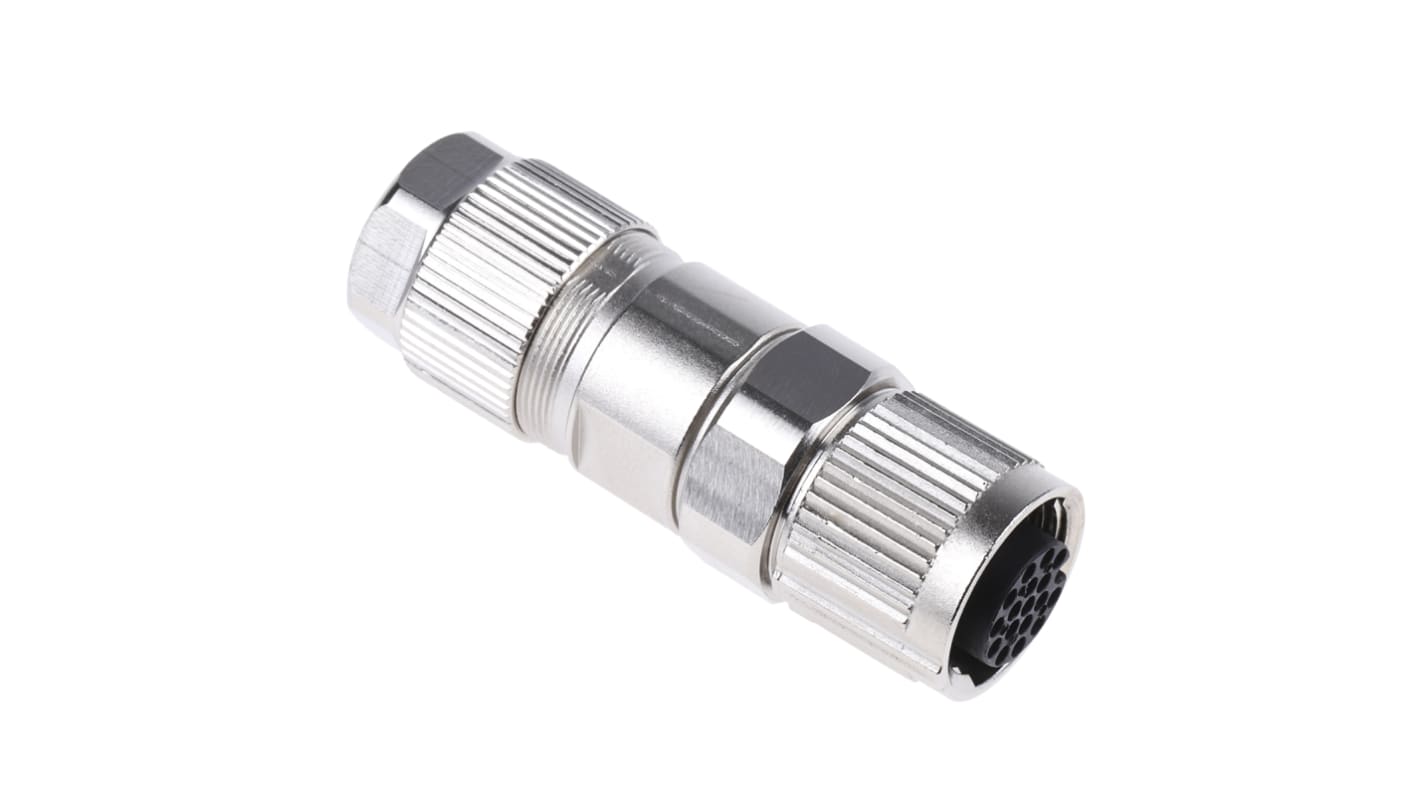

Phoenix Contact Circular Connector, 17 Contacts, Cable Mount, M12 Connector, Socket, Female, IP67, SACC Series
- RS Stock No.:
- 721-1181
- Distrelec Article No.:
- 304-02-018
- Mfr. Part No.:
- 1559644
- Brand:
- Phoenix Contact
Save 5% when you buy 5 units
Subtotal (1 unit)*
£50.51
(exc. VAT)
£60.61
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
- Plus 11 unit(s) shipping from 07 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £50.51 |
5 + | £47.98 |
*price indicative
- RS Stock No.:
- 721-1181
- Distrelec Article No.:
- 304-02-018
- Mfr. Part No.:
- 1559644
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Number of Contacts | 17 | |
Mounting Type | Cable Mount | |
Connector Size | M12 | |
Plug/Socket | Socket | |
Contact Gender | Female | |
Termination Method | Quick Connect | |
IP Rating | IP67 | |
Current Rating | 1.5A | |
Series | SACC | |
Body Orientation | Straight | |
Voltage Rating | 30.0 V | |
Coding | A | |
Mating Type | A Coded | |
Shell Size | M12 | |
Housing Material | Zinc | |
Contact Plating | Gold over Nickel | |
Shielded/Unshielded | Unshielded | |
Outer Diameter | 8.2mm | |
Minimum Operating Temperature | -25°C | |
Maximum Operating Temperature | +85°C | |
Contact Material | Brass | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 17 | ||
Mounting Type Cable Mount | ||
Connector Size M12 | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Quick Connect | ||
IP Rating IP67 | ||
Current Rating 1.5A | ||
Series SACC | ||
Body Orientation Straight | ||
Voltage Rating 30.0 V | ||
Coding A | ||
Mating Type A Coded | ||
Shell Size M12 | ||
Housing Material Zinc | ||
Contact Plating Gold over Nickel | ||
Shielded/Unshielded Unshielded | ||
Outer Diameter 8.2mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Brass | ||
- COO (Country of Origin):
- DE
Phoenix Contact Circular Connector, PA Contact Carrier, Flame Retardant - SACC-FS-17PCON SCO - 1559644
Looking for a tough industrial power adapter? Go for this circular connector from Phoenix Contact. A die-cast zinc body and knurl make it a durable choice you can rely on in harsh settings. For safety, and to reduce the chance of damage to equipment, this unit is protected against power surges up to 0.8kV.
Termination is speedy, thanks to the component's Piercecon technology that removes the hassle of wire stripping. Handy colour coding minimises errors when connecting cables, helping you fit it right the first time. Gold-plated contacts resist corrosion and ensure optimal electrical conductivity. Thanks to a compact housing diameter of 16mm, the socket saves on installation space.
Choose this circular connector to securely hook up automated kit such as sensors and actuators on assembly lines. You can mate it up to 100 times, so it's with you for the long term and saves maintenance hours.
Termination is speedy, thanks to the component's Piercecon technology that removes the hassle of wire stripping. Handy colour coding minimises errors when connecting cables, helping you fit it right the first time. Gold-plated contacts resist corrosion and ensure optimal electrical conductivity. Thanks to a compact housing diameter of 16mm, the socket saves on installation space.
Choose this circular connector to securely hook up automated kit such as sensors and actuators on assembly lines. You can mate it up to 100 times, so it's with you for the long term and saves maintenance hours.
Features & Benefits
• IP67-rated connection is dust-tight and protected against submersion in up to 1m of water for 30 minutes
• Meets UL 94-V0 flammability standards, so burns for a maximum of 10s in the event of a fire
• Insulated for user protection against electric shocks
• Straight body orientation makes assembly uncomplicated
• Meets UL 94-V0 flammability standards, so burns for a maximum of 10s in the event of a fire
• Insulated for user protection against electric shocks
• Straight body orientation makes assembly uncomplicated
