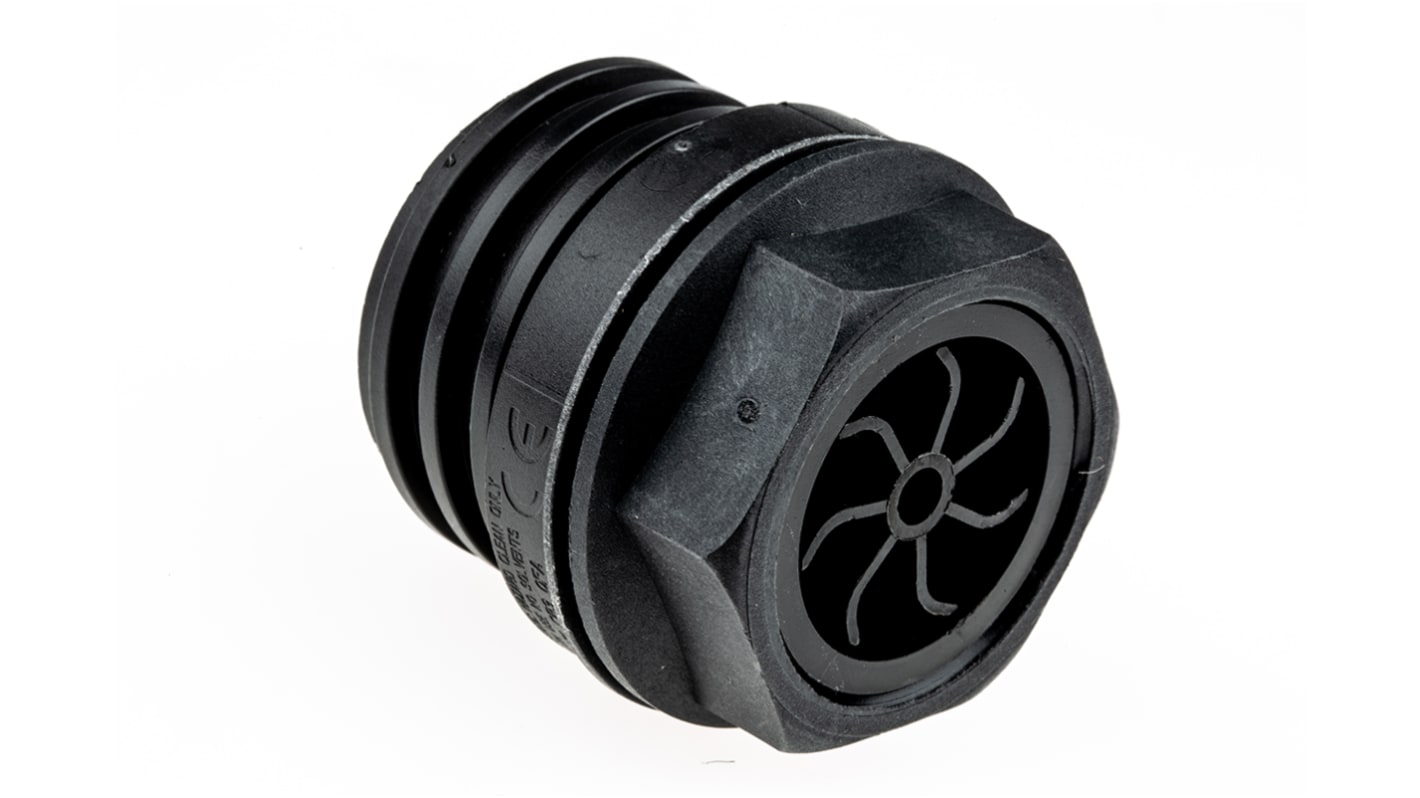

Bulgin Circular Connector, 7 Contacts, Panel Mount, Socket, Female, IP68, Buccaneer 900 Series
- RS Stock No.:
- 394-7384
- Distrelec Article No.:
- 144-66-249
- Mfr. Part No.:
- PX0931/07/S
- Brand:
- Bulgin
Currently unavailable
Sorry, we don't know when this will be back in stock.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£77.22
(exc. VAT)
£92.66
(inc. VAT)
- RS Stock No.:
- 394-7384
- Distrelec Article No.:
- 144-66-249
- Mfr. Part No.:
- PX0931/07/S
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bulgin | |
Number of Contacts | 7 | |
Mounting Type | Panel Mount | |
Connector Size | Standard | |
Plug/Socket | Socket | |
Contact Gender | Female | |
Termination Method | Screw | |
IP Rating | IP68 | |
Current Rating | 25A | |
Body Orientation | Straight | |
Series | Buccaneer 900 | |
Voltage Rating | 430.0 V | |
Shell Size | 50 | |
Mating Type | Threaded | |
Housing Material | Polymer | |
Contact Plating | Nickel | |
Shielded/Unshielded | Unshielded | |
Strain Relief | No | |
Maximum Operating Temperature | +85°C | |
Contact Material | Brass | |
Minimum Operating Temperature | -40°C | |
Outer Diameter | 50mm | |
Select all | ||
---|---|---|
Brand Bulgin | ||
Number of Contacts 7 | ||
Mounting Type Panel Mount | ||
Connector Size Standard | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Screw | ||
IP Rating IP68 | ||
Current Rating 25A | ||
Body Orientation Straight | ||
Series Buccaneer 900 | ||
Voltage Rating 430.0 V | ||
Shell Size 50 | ||
Mating Type Threaded | ||
Housing Material Polymer | ||
Contact Plating Nickel | ||
Shielded/Unshielded Unshielded | ||
Strain Relief No | ||
Maximum Operating Temperature +85°C | ||
Contact Material Brass | ||
Minimum Operating Temperature -40°C | ||
Outer Diameter 50mm | ||
- COO (Country of Origin):
- TN
Bulgin Buccaneer 900 Series Circular Connector, 25A Current Rating, IP68 - PX0931/07/S
This circular connector is intended for high-performance applications across various industrial environments. With an IP68 rating, it offers effective protection against dust and water ingress, making it suitable for challenging conditions. The 7-pin female connector features a screw termination method, enhancing usability and reliability for professionals in the automation and electrical sectors.
Features & Benefits
• Straight body orientation for flexible installation options
• Screw termination allowing for straightforward and secure connections
• High current rating of 25A for efficient power distribution
• Screw termination allowing for straightforward and secure connections
• High current rating of 25A for efficient power distribution
Applications
• Suitable for panel mounting in machinery
• Ideal for outdoor installations in harsh conditions
• Effective for electrical systems requiring robust water resistance
• Applicable in marine environments where resistance to salt mist is essential
• Ideal for outdoor installations in harsh conditions
• Effective for electrical systems requiring robust water resistance
• Applicable in marine environments where resistance to salt mist is essential
What depth can this connector withstand while submerged?
It has been tested at a depth of 10m for two weeks, validating its IP68 protection level.
How should the connector be terminated during installation?
Screw terminals are used, providing a simple and secure connection method.
What is the maximum operating temperature for effective usage?
The maximum operating temperature is +85°C, ensuring functionality in high-heat settings.
Can this product connect with other cable diameters?
It accommodates cable sizes ranging from 7mm to 15mm, depending on the chosen gland pack.
Approvals
UL
Maxi Buccaneer
Heavy duty, rugged connectors, suitable for single and three phase,applications in a variety of harsh environments such as sewage and water works, construction sites, gas/petrol chemical works, external lighting, HVAC equipment and general industrial uses. Based on the standard and Mini Buccaneer series, these connectors offer versatile configurations with interchangeable plug and socket inserts.
Water and dustproof
Leading earth pin
Scoop proof contacts
Easy assembly, no special tooling required
Field serviceable, screw termination
Positive locking keyways, cannot be mis-mated
Bulkhead adaptor suitable for 45° or 90° mounting with Flange Plugs & Sockets
Leading earth pin
Scoop proof contacts
Easy assembly, no special tooling required
Field serviceable, screw termination
Positive locking keyways, cannot be mis-mated
Bulkhead adaptor suitable for 45° or 90° mounting with Flange Plugs & Sockets
