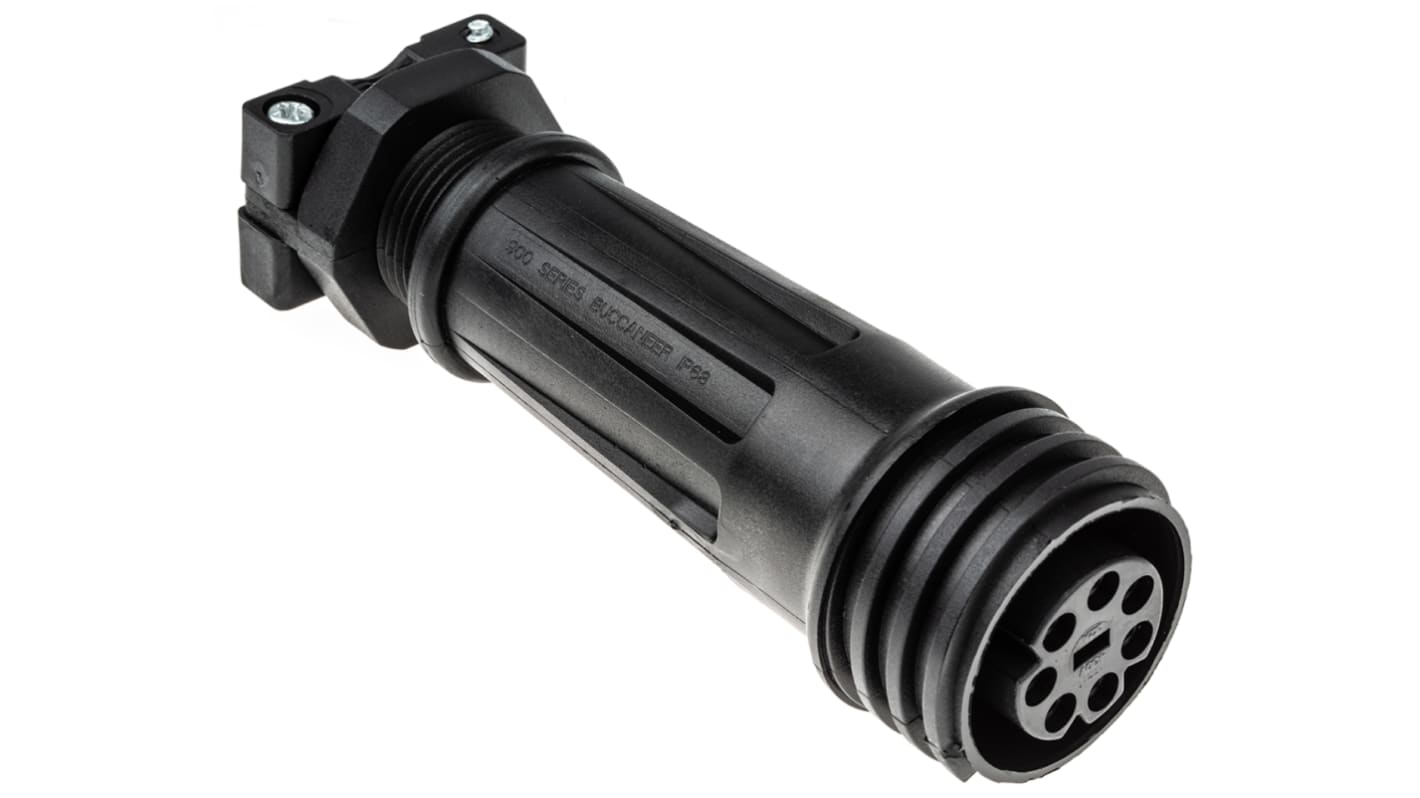

Bulgin Circular Connector, 7 Contacts, Cable Mount, Socket, Female, IP68, Buccaneer 900 Series

RS Stock No.:: 394-7356
Distrelec Article No.:: 300-92-110
Mfr. Part No.:: PXA921/07/S
Brand:: Bulgin

Bulgin Circular Connector, 7 Contacts, Cable Mount, Socket, Female, IP68, Buccaneer 900 Series

Bulk discount available

Subtotal (1 unit)*

£63.76

(exc. VAT)

£76.51

(inc. VAT)

FREE delivery for orders over £50.00

Limited stock

33 left, ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£63.76
10 - 49	£58.66
50 - 99	£55.47
100 +	£50.94

*price indicative

RS Stock No.:: 394-7356
Distrelec Article No.:: 300-92-110
Mfr. Part No.:: PXA921/07/S
Brand:: Bulgin

Bulgin Buccaneer 900 Series Circular Connector, 7 Contacts, IP68 - PXA921/07/S

This circular connector is intended for use in various demanding environments. Designed with a standard size and featuring seven contacts, it is optimised for cable mounting applications. The connector boasts robust construction suited for both high-temperature and low-temperature conditions, operating effectively between -40°C and +85°C.

Features & Benefits

• Screw termination provides secure and reliable connections
• Capable of handling a high current of 32.0A
• Female contact design enhances connection versatility
• Positive locking mechanism ensures safe operation in rugged conditions

Applications

• Used for connecting cables in harsh industrial environments
• Ideal for automation systems requiring reliable connections
• Utilised in electrical and mechanical equipment assemblies

What is the maximum voltage this connector can handle?

The maximum voltage rating for this connector is 430V, making it suitable for high-power applications.

How do I ensure a secure connection when using this connector?

To achieve a secure connection, utilise the positive locking feature by turning the locking ring, which can be done easily even while wearing gloves.

What types of cables are compatible with this connector?

The connector can accommodate cables with a diameter between 20mm and 22mm and is compatible with various wire gauges from 10AWG to 13AWG, allowing for flexibility in cable selection.

Can this connector be used in outdoor settings?

Yes, the IP68 rating ensures that it is waterproof and dustproof, making it highly suitable for outdoor applications in challenging weather conditions.

Approvals

Maxi Buccaneer

Heavy duty, rugged connectors, suitable for single and three phase,applications in a variety of harsh environments such as sewage and water works, construction sites, gas/petrol chemical works, external lighting, HVAC equipment and general industrial uses. Based on the standard and Mini Buccaneer series, these connectors offer versatile configurations with interchangeable plug and socket inserts.

Water and dustproof
Leading earth pin
Scoop proof contacts
Easy assembly, no special tooling required
Field serviceable, screw termination
Positive locking keyways, cannot be mis-mated
Bulkhead adaptor suitable for 45° or 90° mounting with Flange Plugs & Sockets

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Bulgin
	Number of Contacts	7
	Mounting Type	Cable Mount
	Connector Size	Standard
	Plug/Socket	Socket
	Contact Gender	Female
	Termination Method	Screw
	IP Rating	IP68
	Current Rating	32.0A
	Series	Buccaneer 900
	Body Orientation	Straight
	Voltage Rating	430.0 V
	Mating Type	Threaded
	Shell Size	46
	Housing Material	Polyamide
	Strain Relief	Yes
	Contact Plating	Nickel
	Minimum Operating Temperature	-40°C
	Outer Diameter	46mm
	Maximum Operating Temperature	+85°C
	Contact Material	Brass
	Series Number	PXA921

	Select all
	Brand Bulgin
	Number of Contacts 7
	Mounting Type Cable Mount
	Connector Size Standard
	Plug/Socket Socket
	Contact Gender Female
	Termination Method Screw
	IP Rating IP68
	Current Rating 32.0A
	Series Buccaneer 900
	Body Orientation Straight
	Voltage Rating 430.0 V
	Mating Type Threaded
	Shell Size 46
	Housing Material Polyamide
	Strain Relief Yes
	Contact Plating Nickel
	Minimum Operating Temperature -40°C
	Outer Diameter 46mm
	Maximum Operating Temperature +85°C
	Contact Material Brass
	Series Number PXA921
