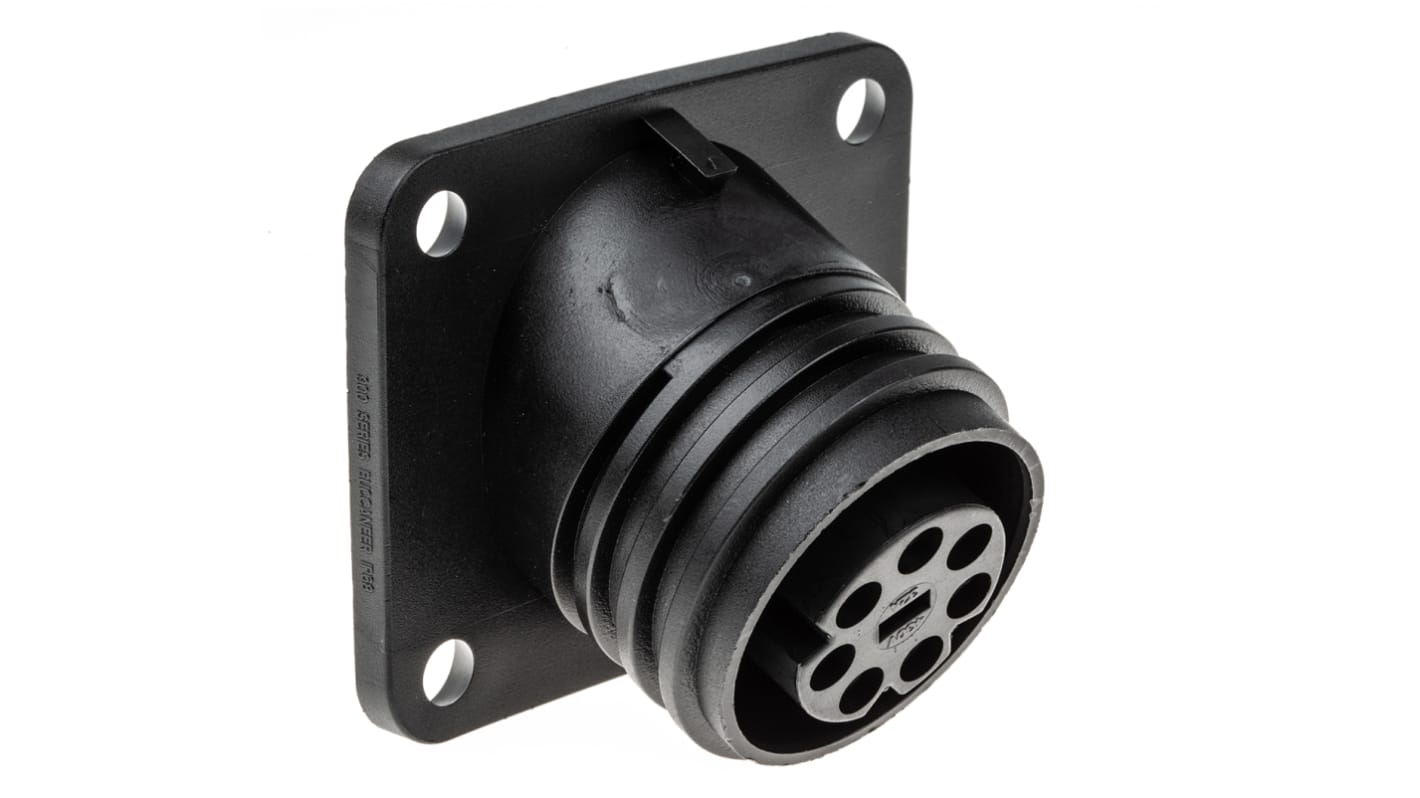

Bulgin Circular Connector, 7 Contacts, Flange Mount, Socket, Female, IP68, Buccaneer 900 Series
- RS Stock No.:
- 394-7407
- Distrelec Article No.:
- 144-66-348
- Mfr. Part No.:
- PX0941/07/S
- Brand:
- Bulgin
Currently unavailable
Sorry, we don't know when this will be back in stock.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£55.23
(exc. VAT)
£66.28
(inc. VAT)
- RS Stock No.:
- 394-7407
- Distrelec Article No.:
- 144-66-348
- Mfr. Part No.:
- PX0941/07/S
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bulgin | |
Number of Contacts | 7 | |
Mounting Type | Flange Mount | |
Connector Size | Standard | |
Plug/Socket | Socket | |
Contact Gender | Female | |
Termination Method | Screw | |
IP Rating | IP68 | |
Current Rating | 25A | |
Body Orientation | Straight | |
Series | Buccaneer 900 | |
Voltage Rating | 430.0 V | |
Shell Size | 50 | |
Mating Type | Threaded | |
Housing Material | Polymer | |
Strain Relief | No | |
Contact Plating | Nickel | |
Shielded/Unshielded | Unshielded | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +85°C | |
Contact Material | Brass | |
Select all | ||
---|---|---|
Brand Bulgin | ||
Number of Contacts 7 | ||
Mounting Type Flange Mount | ||
Connector Size Standard | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Screw | ||
IP Rating IP68 | ||
Current Rating 25A | ||
Body Orientation Straight | ||
Series Buccaneer 900 | ||
Voltage Rating 430.0 V | ||
Shell Size 50 | ||
Mating Type Threaded | ||
Housing Material Polymer | ||
Strain Relief No | ||
Contact Plating Nickel | ||
Shielded/Unshielded Unshielded | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Brass | ||
- COO (Country of Origin):
- TN
Bulgin Buccaneer 900 Series Circular Connector, 25A Current Rating, IP68 - PX0941/07/S
This circular connector provides robust connectivity solutions suitable for various industrial applications. It features a flange mount for secure installation and boasts an IP68 rating, ensuring it resists both water and dust ingress in challenging environments. Its versatility makes it ideal for situations that require protection from moisture and particulates, particularly in automation and electrical sectors.
Features & Benefits
• Flange mount socket guarantees secure fitting in a range of settings
• 7-pin configuration allows for multiple connections within a single unit
• Female socket connector enhances compatibility with male connectors
• Threaded connection provides stable and secure connectivity
• 7-pin configuration allows for multiple connections within a single unit
• Female socket connector enhances compatibility with male connectors
• Threaded connection provides stable and secure connectivity
Applications
• Suitable for marine and outdoor necessitating waterproof integrity
• Appropriate for manufacturing environments where dust prevention is essential
• Ideal for power supply connections in machinery and equipment
• Appropriate for manufacturing environments where dust prevention is essential
• Ideal for power supply connections in machinery and equipment
What is the maximum voltage rating for safe operation?
The connector can handle voltages up to 430V, allowing for safe performance in electrical applications.
How do I ensure the connector remains waterproof after installation?
Utilising the provided sealing gasket and ensuring tight connections during installation will help maintain the IP68 rating and prevent moisture ingress.
Are there specific cable sizes recommended for use with the connector?
Yes, it accommodates cables with diameters between 13mm and 15mm for standard configurations, and 20mm to 22mm for larger sizes.
What type of termination method does it use?
The connector features a screw termination method, enabling straightforward field terminations with minimal tools required.
Approvals
UL
Maxi Buccaneer
Heavy duty, rugged connectors, suitable for single and three phase,applications in a variety of harsh environments such as sewage and water works, construction sites, gas/petrol chemical works, external lighting, HVAC equipment and general industrial uses. Based on the standard and Mini Buccaneer series, these connectors offer versatile configurations with interchangeable plug and socket inserts.
Water and dustproof
Leading earth pin
Scoop proof contacts
Easy assembly, no special tooling required
Field serviceable, screw termination
Positive locking keyways, cannot be mis-mated
Bulkhead adaptor suitable for 45° or 90° mounting with Flange Plugs & Sockets
Leading earth pin
Scoop proof contacts
Easy assembly, no special tooling required
Field serviceable, screw termination
Positive locking keyways, cannot be mis-mated
Bulkhead adaptor suitable for 45° or 90° mounting with Flange Plugs & Sockets
