Bulgin Circular Connector, 2 Contacts, Flange, Standard Connector, Plug, Male, IP68, Buccaneer 900 Series
- RS Stock No.:
- 344-4251
- Distrelec Article No.:
- 144-66-256
- Mfr. Part No.:
- PX0941/02/P
- Brand:
- Bulgin
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£35.69
(exc. VAT)
£42.83
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 27 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £35.69 |
| 10 - 49 | £32.83 |
| 50 - 99 | £31.05 |
| 100 + | £28.55 |
*price indicative
- RS Stock No.:
- 344-4251
- Distrelec Article No.:
- 144-66-256
- Mfr. Part No.:
- PX0941/02/P
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Product Type | Circular Connector | |
| Number of Contacts | 2 | |
| Mount Type | Flange | |
| Connector Size | Standard | |
| Current | 30A | |
| Plug/Socket | Plug | |
| Contact Gender | Male | |
| IP Rating | IP68 | |
| Series | Buccaneer 900 | |
| Orientation | Straight | |
| Voltage | 600V | |
| Mating Type | Threaded | |
| Termination Type | Screw | |
| Minimum Operating Temperature | -40°C | |
| Shell Size | 50 | |
| Housing Material | Polyamide | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Contact Plating | Nickel | |
| Contact Material | Brass | |
| Select all | ||
|---|---|---|
Brand Bulgin | ||
Product Type Circular Connector | ||
Number of Contacts 2 | ||
Mount Type Flange | ||
Connector Size Standard | ||
Current 30A | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
IP Rating IP68 | ||
Series Buccaneer 900 | ||
Orientation Straight | ||
Voltage 600V | ||
Mating Type Threaded | ||
Termination Type Screw | ||
Minimum Operating Temperature -40°C | ||
Shell Size 50 | ||
Housing Material Polyamide | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Contact Plating Nickel | ||
Contact Material Brass | ||
- COO (Country of Origin):
- TN

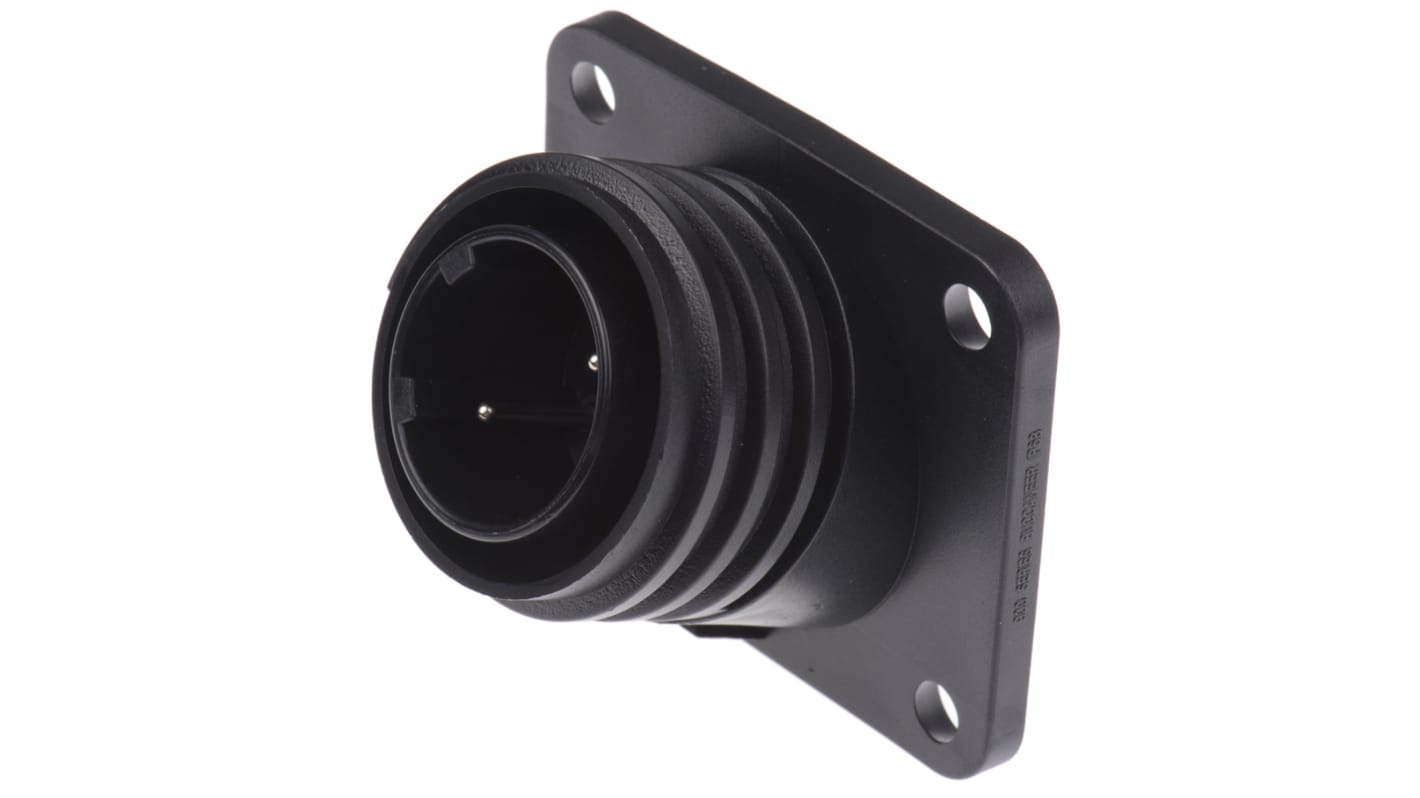

Bulgin Buccaneer 900 Series Circular Connector, 2 Contacts, IP68 - PX0941/02/P
This flange mount connector falls under the category of circular power connectors and features a robust design suited for demanding environments. Incorporating a male plug with two contacts, it ensures secure electrical connections in both industrial and automation applications. The connector is constructed from polyamide and is rated IP68, guaranteeing water and dust resistance when mated.
Features & Benefits
• Provides superior water and dust protection with an IP68 rating
• Positive locking mechanism for reliable and secure connections
• Operating temperature range from -40°C to +85°C for diverse requirements
• Supplied with high-grade sealing gaskets for enhanced durability
Applications
• Used in automation systems for secure connections
• Suitable for electrical and mechanical equipment installations
• Integrated into harsh environments requiring dust and water protection
• Ideal for connecting power supplies in industrial machinery
What are the cable accommodation specifications for this connector?
This connector can accommodate cable sizes ranging from 10AWG to 14AWG, or 2.5mm² to 4mm². This versatility assists in various connection requirements based on specific applications.
How does the locking mechanism contribute to reliability?
The positive fast-acting locking ring allows for a secure connection that maintains physical integrity under movement or vibration, making it suitable for dynamic installations and environments.
Is additional equipment needed to maintain its IP68 rating?
To maintain the IP68 rating when not in use, a sealing cap is available separately. This ensures the connector is protected from environmental factors when unmated.
What types of applications can benefit from a threaded mating type?
Threaded mating types provide enhanced stability, making them ideal for environments where connections may experience vibration or tension, such as in machinery or vehicles.
Can this connector be mounted at an angle?
Yes, an additional bulkhead adaptor moulding is available separately, allowing this connector to be angled at either 45 or 90 degrees for versatile installation options.
Approvals
UL; VDE
