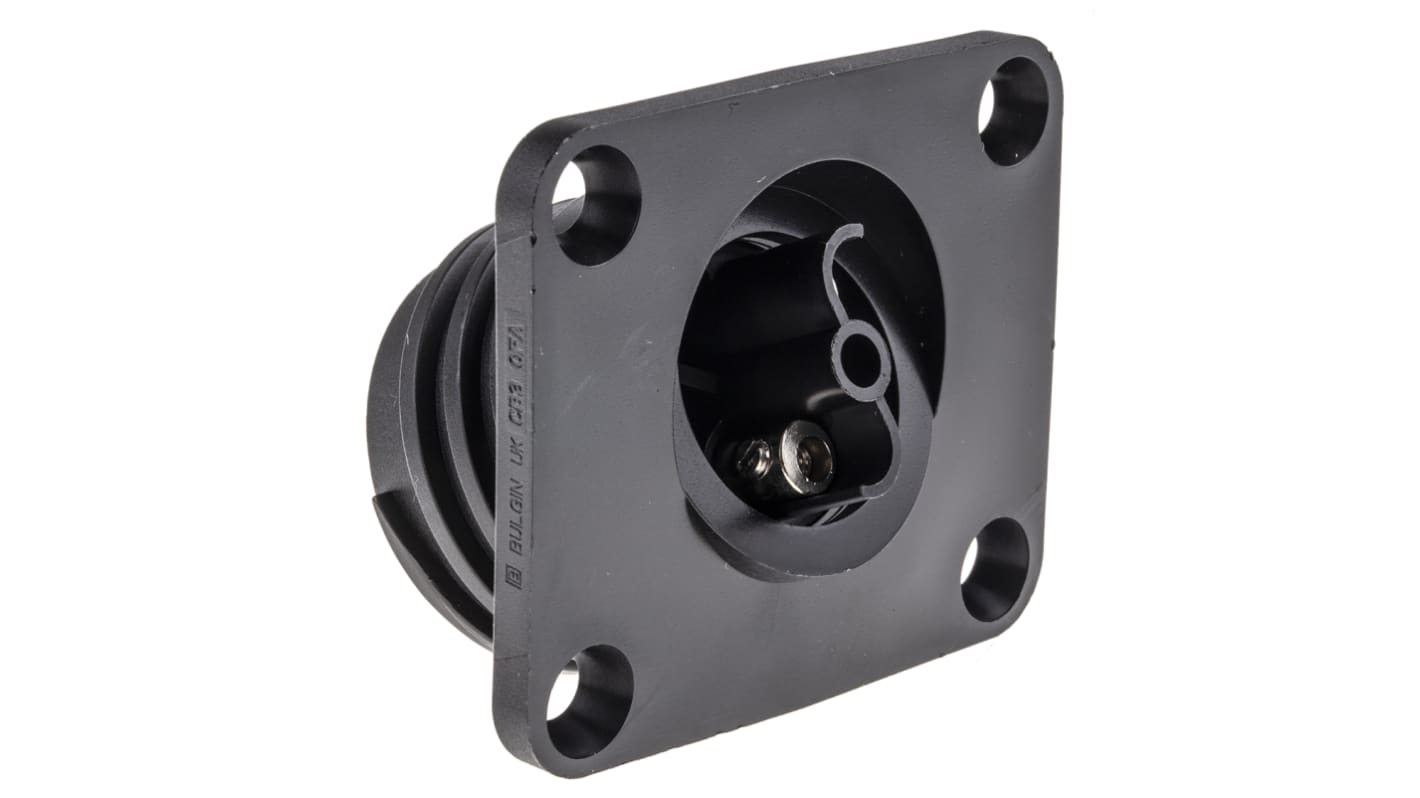

Bulgin Circular Connector, 2 Contacts, Flange, Standard Connector, Socket, Female, IP68, PX0941 Series
- RS Stock No.:
- 345-0802
- Distrelec Article No.:
- 144-66-306
- Mfr. Part No.:
- PX0941/02/S
- Brand:
- Bulgin
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£36.84
(exc. VAT)
£44.21
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 32 unit(s) shipping from 20 July 2026
- Plus 71 unit(s) shipping from 27 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £36.84 |
| 10 - 49 | £35.37 |
| 50 - 99 | £33.97 |
| 100 + | £32.71 |
*price indicative
- RS Stock No.:
- 345-0802
- Distrelec Article No.:
- 144-66-306
- Mfr. Part No.:
- PX0941/02/S
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Product Type | Circular Connector | |
| Number of Contacts | 2 | |
| Mount Type | Flange | |
| Connector Size | Standard | |
| Current | 30A | |
| Plug/Socket | Socket | |
| Contact Gender | Female | |
| IP Rating | IP68 | |
| Orientation | Straight | |
| Series | PX0941 | |
| Voltage | 600.0V | |
| Minimum Operating Temperature | -40°C | |
| Mating Type | Threaded | |
| Termination Type | Screw | |
| Shell Size | 50 | |
| Maximum Operating Temperature | 85°C | |
| Housing Material | Polyamide | |
| Standards/Approvals | No | |
| Contact Plating | Nickel | |
| Contact Material | Brass | |
| Select all | ||
|---|---|---|
Brand Bulgin | ||
Product Type Circular Connector | ||
Number of Contacts 2 | ||
Mount Type Flange | ||
Connector Size Standard | ||
Current 30A | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
IP Rating IP68 | ||
Orientation Straight | ||
Series PX0941 | ||
Voltage 600.0V | ||
Minimum Operating Temperature -40°C | ||
Mating Type Threaded | ||
Termination Type Screw | ||
Shell Size 50 | ||
Maximum Operating Temperature 85°C | ||
Housing Material Polyamide | ||
Standards/Approvals No | ||
Contact Plating Nickel | ||
Contact Material Brass | ||
- COO (Country of Origin):
- TN
Bulgin Buccaneer 900 Series Circular Connector, 2 Contacts, IP68 - PX0941/02/S
This flange mount connector designed to provide reliable connectivity in demanding environments. The connector features a robust construction with a polyamide housing and is rated IP68, ensuring protection against dust and water ingress. With a standard size and female socket contact, it supports high current applications while maintaining a secure connection.
Features & Benefits
• Screw termination ensures a strong electrical connection
• Nickel-plated contacts enhance conductivity and corrosion resistance
• Positive locking mechanism allows operation even with gloves
• Capable of handling currents up to 30A
• Compact design suitable for various industrial requirements
Applications
• Integrated into automation systems for secure connectivity
• Utilised in electrical panels for robust power connections
• Ideal for mechanical requiring weatherproof connectors
• Compatible with bulkhead adaptors for flexible installation
What is the maximum voltage this connector can handle?
The connector is rated for a maximum voltage of 600V, allowing it to be used in various high-voltage applications without risk of failure.
Can this connector be used in extreme temperature environments?
Yes, it operates effectively within a temperature range of -40°C to +85°C, making it suitable for both cold and hot conditions.
What type of cables can be accommodated with this connector?
It can accommodate cables with wire sizes between 2.5mm² and 4mm², covering a range of applications in different industries.
Is additional sealing equipment required for this connector?
While it includes high-grade sealing gaskets, additional sealing caps are available separately to further enhance the IP68 rating when connectors are unmated.
Approvals
UL; VDE
