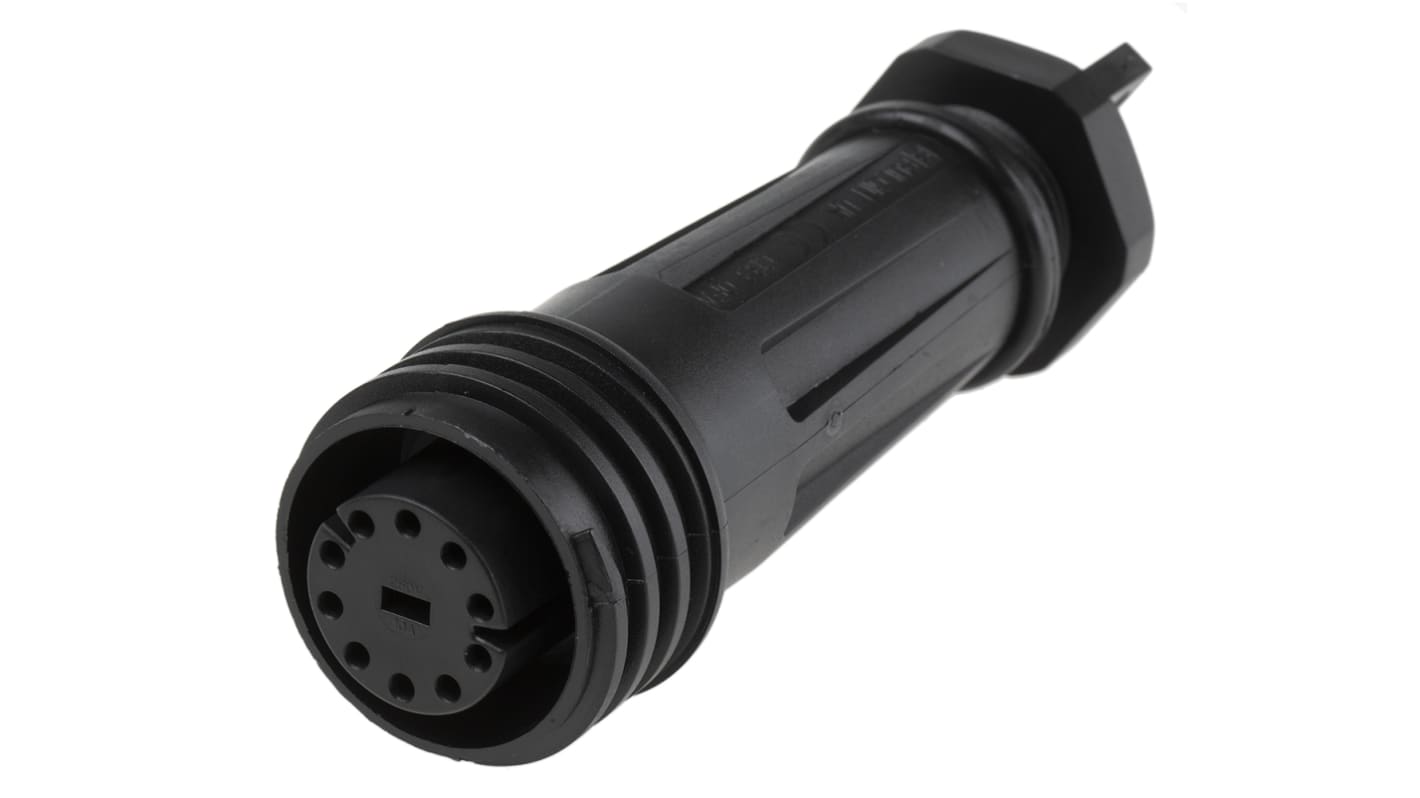

Bulgin Circular Connector, 10 Contacts, Cable Mount, Socket, Female, IP68, Buccaneer 900 Series
- RS Stock No.:
- 575-719
- Distrelec Article No.:
- 303-93-493
- Mfr. Part No.:
- PXA921/10/S
- Brand:
- Bulgin
Save 11% when you buy 100 units
Subtotal (1 unit)*
£85.29
(exc. VAT)
£102.35
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 13 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £85.29 |
10 - 49 | £81.88 |
50 - 99 | £78.73 |
100 + | £75.83 |
*price indicative
- RS Stock No.:
- 575-719
- Distrelec Article No.:
- 303-93-493
- Mfr. Part No.:
- PXA921/10/S
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bulgin | |
Number of Contacts | 10 | |
Mounting Type | Cable Mount | |
Connector Size | Standard | |
Plug/Socket | Socket | |
Contact Gender | Female | |
Termination Method | Screw | |
IP Rating | IP68 | |
Current Rating | 10.0A | |
Body Orientation | Straight | |
Series | Buccaneer 900 | |
Voltage Rating | 250.0 V | |
Mating Type | Threaded | |
Shell Size | 46 | |
Housing Material | Polymer | |
Contact Plating | Nickel | |
Strain Relief | Yes | |
Contact Material | Brass | |
Maximum Operating Temperature | +85°C | |
Series Number | PXA921 | |
Outer Diameter | 46mm | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Bulgin | ||
Number of Contacts 10 | ||
Mounting Type Cable Mount | ||
Connector Size Standard | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Screw | ||
IP Rating IP68 | ||
Current Rating 10.0A | ||
Body Orientation Straight | ||
Series Buccaneer 900 | ||
Voltage Rating 250.0 V | ||
Mating Type Threaded | ||
Shell Size 46 | ||
Housing Material Polymer | ||
Contact Plating Nickel | ||
Strain Relief Yes | ||
Contact Material Brass | ||
Maximum Operating Temperature +85°C | ||
Series Number PXA921 | ||
Outer Diameter 46mm | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TN
Bulgin Buccaneer 900 Series Circular Connector, 10 Contacts, IP68 - PXA921/10/S
This circular connector is a robust solution designed for cable mounting applications. With 10 contacts and an IP68 rating, it ensures water and dust resistance, making it suitable for demanding conditions. Its durable polymer and high-temperature construction enable operation in a wide temperature range from -40 °C to +85 °C. The connector features a standard size with a diameter of 46mm, providing compatibility with various cable types and sizes.
Features & Benefits
• IP68 rating guarantees excellent resistance to dust and water
• 10-pin socket connector enhances connectivity options
• High-temperature circular connector supports diverse environments
• Durable connector solutions designed for long-term use
• Female threaded connector allows easy mating and dexterity
• 10-pin socket connector enhances connectivity options
• High-temperature circular connector supports diverse environments
• Durable connector solutions designed for long-term use
• Female threaded connector allows easy mating and dexterity
Applications
• Used with large cable versions in harsh outdoor environments
• Ideal for automation systems requiring secure connections
• Suitable for needing waterproof electrical connectors
• Utilised in scenarios where strain relief is crucial for connection integrity
• Ideal for automation systems requiring secure connections
• Suitable for needing waterproof electrical connectors
• Utilised in scenarios where strain relief is crucial for connection integrity
What is the maximum size of the cable entry for this connector?
The maximum cable entry size for this connector is 22mm, accommodating various cable diameters for flexibility in installations.
What type of cable can be used with this connector?
It accepts cables from 0.75mm² to 2.5mm² in cross-sectional area, ensuring compatibility with different wire gauges.
Can it be used in extreme weather conditions?
Yes, it operates effectively in temperatures ranging from -40 °C to +85 °C, making it suitable for harsh weather environments.
What method is used for terminating connections?
The connector employs screw termination, which provides a reliable and secure connection that minimises the risk of disconnection.
How does the locking mechanism work on this connector?
It features a positive fast-acting locking ring that can be easily operated with a gloved hand, ensuring secure mating in various conditions.
Approvals
UL
Maxi Buccaneer
Heavy duty, rugged connectors, suitable for single and three phase,applications in a variety of harsh environments such as sewage and water works, construction sites, gas/petrol chemical works, external lighting, HVAC equipment and general industrial uses. Based on the standard and Mini Buccaneer series, these connectors offer versatile configurations with interchangeable plug and socket inserts.
Water and dustproof
Leading earth pin
Scoop proof contacts
Easy assembly, no special tooling required
Field serviceable, screw termination
Positive locking keyways, cannot be mis-mated
Bulkhead adaptor suitable for 45° or 90° mounting with Flange Plugs & Sockets
Leading earth pin
Scoop proof contacts
Easy assembly, no special tooling required
Field serviceable, screw termination
Positive locking keyways, cannot be mis-mated
Bulkhead adaptor suitable for 45° or 90° mounting with Flange Plugs & Sockets
