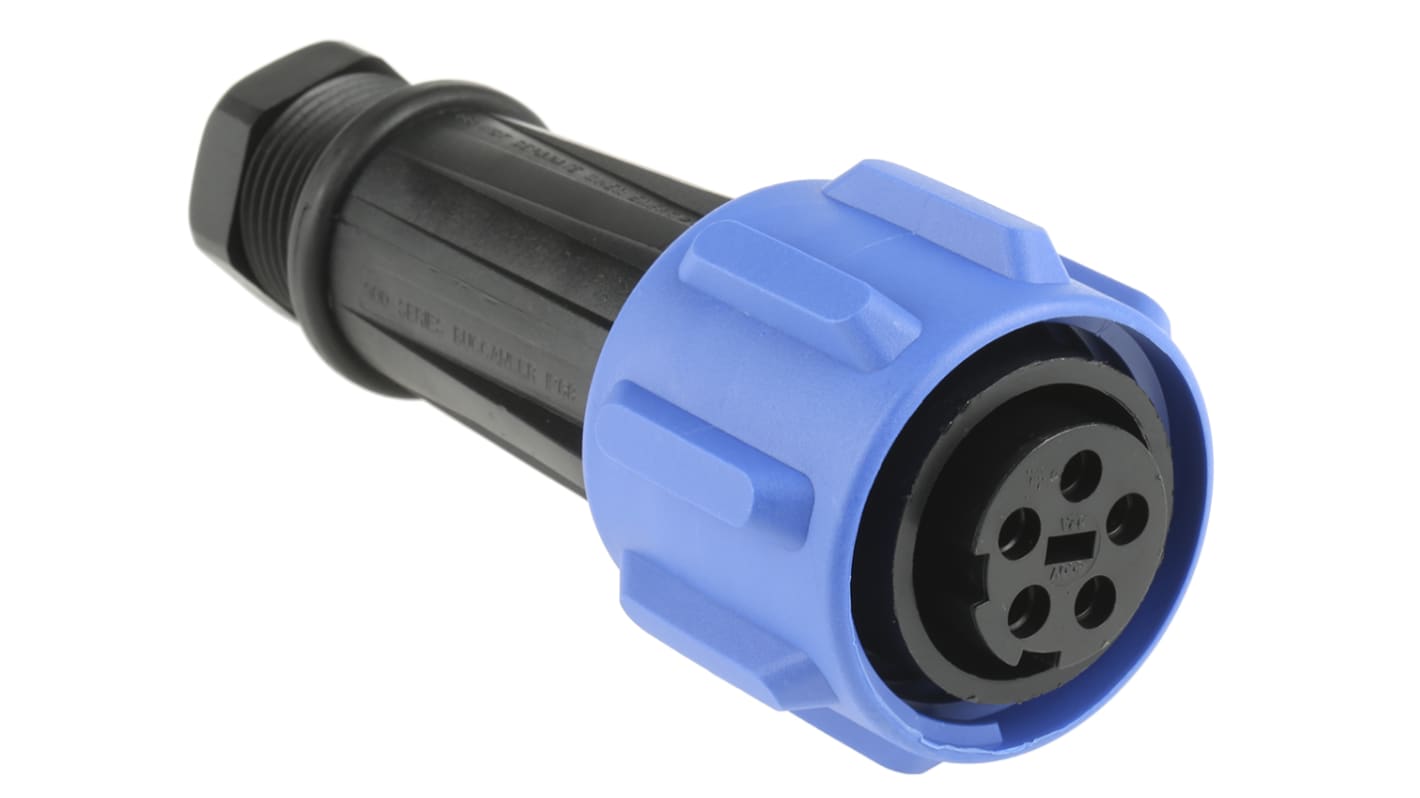

Bulgin Circular Connector, 5 Contacts, Cable Mount, Socket, Female, IP68, Buccaneer 900 Series
- RS Stock No.:
- 344-4065
- Distrelec Article No.:
- 144-66-082
- Mfr. Part No.:
- PX0911/05/S
- Brand:
- Bulgin
Bulk discount available
Subtotal (1 unit)*
£47.14
(exc. VAT)
£56.57
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 468 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £47.14 |
10 - 49 | £43.37 |
50 - 99 | £41.01 |
100 + | £37.71 |
*price indicative
- RS Stock No.:
- 344-4065
- Distrelec Article No.:
- 144-66-082
- Mfr. Part No.:
- PX0911/05/S
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bulgin | |
Number of Contacts | 5 | |
Mounting Type | Cable Mount | |
Connector Size | Standard | |
Plug/Socket | Socket | |
Contact Gender | Female | |
Termination Method | Screw | |
IP Rating | IP68 | |
Current Rating | 32.0A | |
Series | Buccaneer 900 | |
Body Orientation | Straight | |
Voltage Rating | 600.0 V | |
Shell Size | 50 | |
Mating Type | Threaded | |
Housing Material | Polyamide | |
Shielded/Unshielded | Unshielded | |
Strain Relief | No | |
Contact Plating | Nickel | |
Series Number | PX0911 | |
Outer Diameter | 58mm | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +85°C | |
Contact Material | Brass | |
Select all | ||
---|---|---|
Brand Bulgin | ||
Number of Contacts 5 | ||
Mounting Type Cable Mount | ||
Connector Size Standard | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Screw | ||
IP Rating IP68 | ||
Current Rating 32.0A | ||
Series Buccaneer 900 | ||
Body Orientation Straight | ||
Voltage Rating 600.0 V | ||
Shell Size 50 | ||
Mating Type Threaded | ||
Housing Material Polyamide | ||
Shielded/Unshielded Unshielded | ||
Strain Relief No | ||
Contact Plating Nickel | ||
Series Number PX0911 | ||
Outer Diameter 58mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Brass | ||
- COO (Country of Origin):
- TN
Bulgin Buccaneer 900 Series Circular Connector, 5 Contacts, IP68 - PX0911/05/S
This circular connector is designed for reliable electrical connections in demanding environments. It features a robust IP68 rated design, making it waterproof and dustproof when mated, ensuring optimal performance in harsh conditions. The connector supports a maximum current of 32A and accommodates cables with diameters ranging from 13mm to 15mm, making it ideal for versatile applications.
Features & Benefits
• Unshielded design allows for straightforward integration
• Screw terminals enable easy cable installation
• High current capacity supports extensive requirements
• Straight body orientation maximises installation flexibility
• Made with polyamide housing for durability and reliability
• Screw terminals enable easy cable installation
• High current capacity supports extensive requirements
• Straight body orientation maximises installation flexibility
• Made with polyamide housing for durability and reliability
Applications
• Used in outdoor telecommunications equipment
• Ideal for power distribution in industrial machinery
• Suitable for marine requiring robust connections
• Utilised in automated control systems demanding secure links
• Effective in outdoor lighting installations due to waterproof properties
• Ideal for power distribution in industrial machinery
• Suitable for marine requiring robust connections
• Utilised in automated control systems demanding secure links
• Effective in outdoor lighting installations due to waterproof properties
What cable sizes can be accommodated with this connector?
It can accommodate cable diameters between 13mm and 15mm, providing flexibility for various applications.
How does the locking mechanism enhance usability?
The positive fast-acting locking ring can be easily turned with a gloved hand, ensuring quick and secure connections.
What environmental constraints can this connector withstand?
Its IP68 rating ensures functionality in both wet and dusty conditions, making it suitable for challenging environments.
What is the current rating and how does it impact usage?
The connector supports a maximum current rating of 32A, allowing it to handle substantial power loads effectively.
Does this connector require special tools for installation?
No special tools are needed
the screw terminals allow for straightforward and efficient cable connections.
Approvals
UL; VDE
Maxi Buccaneer
Heavy duty, rugged connectors, suitable for single and three phase,applications in a variety of harsh environments such as sewage and water works, construction sites, gas/petrol chemical works, external lighting, HVAC equipment and general industrial uses. Based on the standard and Mini Buccaneer series, these connectors offer versatile configurations with interchangeable plug and socket inserts.
Water and dustproof
Leading earth pin
Scoop proof contacts
Easy assembly, no special tooling required
Field serviceable, screw termination
Positive locking keyways, cannot be mis-mated
Bulkhead adaptor suitable for 45° or 90° mounting with Flange Plugs & Sockets
Leading earth pin
Scoop proof contacts
Easy assembly, no special tooling required
Field serviceable, screw termination
Positive locking keyways, cannot be mis-mated
Bulkhead adaptor suitable for 45° or 90° mounting with Flange Plugs & Sockets
