Bulgin Circular Connector, 4 Contacts, Cable Mount, Socket, Female, IP68, Buccaneer 900 Series
- RS Stock No.:
- 344-4059
- Distrelec Article No.:
- 144-66-074
- Mfr. Part No.:
- PX0911/04/S
- Brand:
- Bulgin
Bulk discount available
Subtotal (1 unit)*
£43.16
(exc. VAT)
£51.79
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 28 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
- Plus 32 unit(s) shipping from 02 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £43.16 |
10 - 49 | £39.70 |
50 - 99 | £37.59 |
100 + | £34.53 |
*price indicative
- RS Stock No.:
- 344-4059
- Distrelec Article No.:
- 144-66-074
- Mfr. Part No.:
- PX0911/04/S
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bulgin | |
Number of Contacts | 4 | |
Mounting Type | Cable Mount | |
Connector Size | Standard | |
Plug/Socket | Socket | |
Contact Gender | Female | |
Termination Method | Screw | |
IP Rating | IP68 | |
Current Rating | 32.0A | |
Body Orientation | Straight | |
Series | Buccaneer 900 | |
Voltage Rating | 600.0 V | |
Shell Size | 50 | |
Mating Type | Threaded | |
Housing Material | Polyamide | |
Strain Relief | No | |
Contact Plating | Nickel | |
Shielded/Unshielded | Unshielded | |
Outer Diameter | 58mm | |
Minimum Operating Temperature | -40°C | |
Series Number | PX0911 | |
Maximum Operating Temperature | +85°C | |
Contact Material | Brass | |
Select all | ||
---|---|---|
Brand Bulgin | ||
Number of Contacts 4 | ||
Mounting Type Cable Mount | ||
Connector Size Standard | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
Termination Method Screw | ||
IP Rating IP68 | ||
Current Rating 32.0A | ||
Body Orientation Straight | ||
Series Buccaneer 900 | ||
Voltage Rating 600.0 V | ||
Shell Size 50 | ||
Mating Type Threaded | ||
Housing Material Polyamide | ||
Strain Relief No | ||
Contact Plating Nickel | ||
Shielded/Unshielded Unshielded | ||
Outer Diameter 58mm | ||
Minimum Operating Temperature -40°C | ||
Series Number PX0911 | ||
Maximum Operating Temperature +85°C | ||
Contact Material Brass | ||
- COO (Country of Origin):
- TN

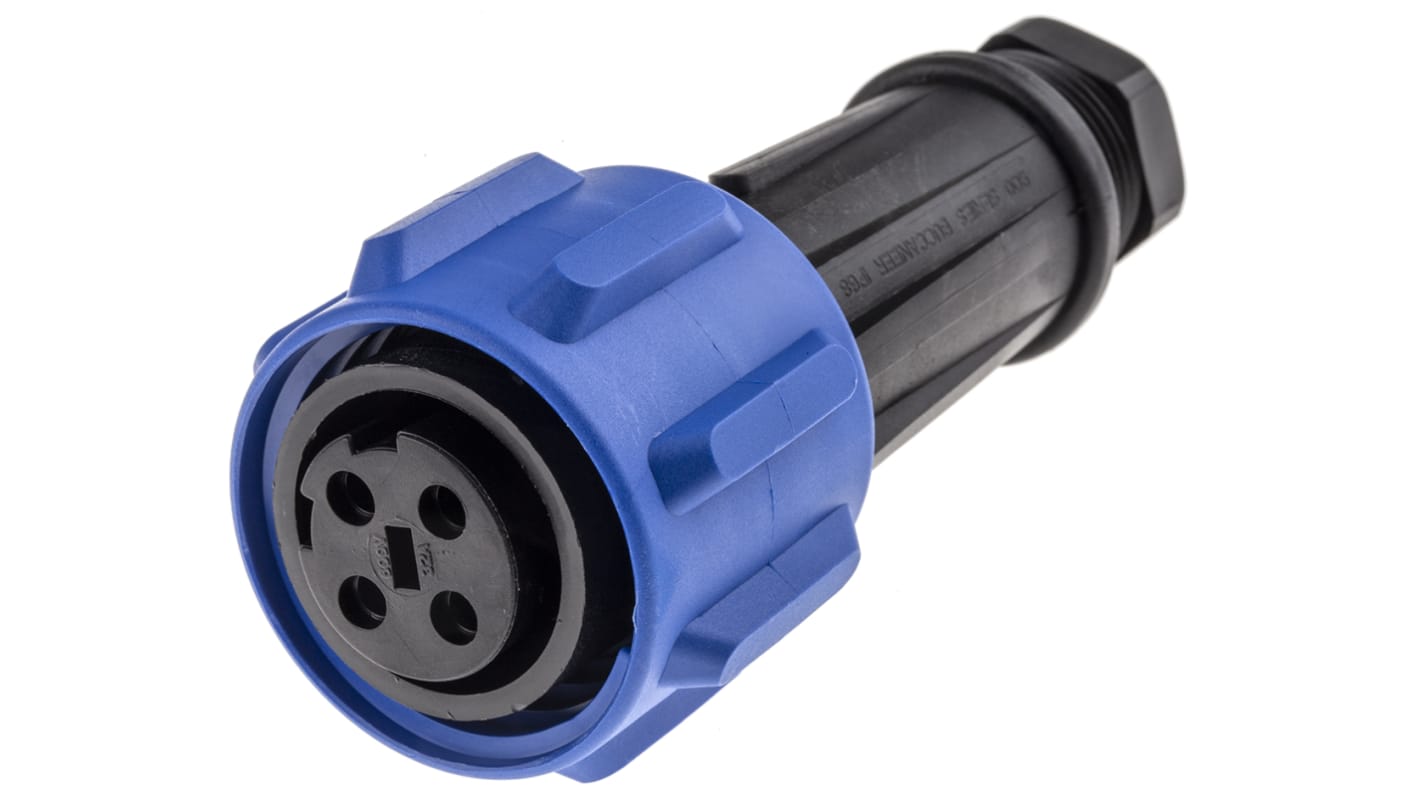

Bulgin Buccaneer 900 Series Circular Connector, 4 Contacts, IP68 - PX0911/04/S
This circular connector is designed for flexible cable connections. Featuring a compact size with an outer diameter of 58mm, it boasts a robust female socket contact configuration with 4 contacts. The product ensures excellent protection against moisture and dust, achieving an IP68 rating when mated with a compatible connector.
Features & Benefits
• Water and dustproof construction increases reliability
• Positive locking mechanism enables easy handling with gloves
• Flexible cable acceptance from 13mm to 15mm diameter
• Suitable for high current usage up to 32A
• Screw termination method simplifies wiring connections
• Positive locking mechanism enables easy handling with gloves
• Flexible cable acceptance from 13mm to 15mm diameter
• Suitable for high current usage up to 32A
• Screw termination method simplifies wiring connections
Applications
• Used with Buccaneer 900 series connectors for secure connections
• Ideal for automation systems requiring reliable electrical connections
• Applicable in industrial equipment demanding waterproof electrical components
• Suitable for outdoor installations where weather resistance is crucial
• Ideal for automation systems requiring reliable electrical connections
• Applicable in industrial equipment demanding waterproof electrical components
• Suitable for outdoor installations where weather resistance is crucial
What is the maximum and minimum cable entry size for this connector?
The connector accommodates cable diameters ranging from 13mm to 15mm, allowing for versatility in cabling options.
What current rating can this connector handle?
It supports a maximum current rating of 32A, making it suitable for high-power applications.
What materials are used in the construction of this connector?
The connector housing is made from polyamide, while the contacts are crafted from brass and plated with nickel for enhanced conductivity.
How does the IP68 rating benefit the use of this connector?
An IP68 rating ensures that the connector remains protected against dust and can withstand continuous immersion in water, making it suitable for challenging environments.
Approvals
UL
Maxi Buccaneer
Heavy duty, rugged connectors, suitable for single and three phase,applications in a variety of harsh environments such as sewage and water works, construction sites, gas/petrol chemical works, external lighting, HVAC equipment and general industrial uses. Based on the standard and Mini Buccaneer series, these connectors offer versatile configurations with interchangeable plug and socket inserts.
Water and dustproof
Leading earth pin
Scoop proof contacts
Easy assembly, no special tooling required
Field serviceable, screw termination
Positive locking keyways, cannot be mis-mated
Bulkhead adaptor suitable for 45° or 90° mounting with Flange Plugs & Sockets
Leading earth pin
Scoop proof contacts
Easy assembly, no special tooling required
Field serviceable, screw termination
Positive locking keyways, cannot be mis-mated
Bulkhead adaptor suitable for 45° or 90° mounting with Flange Plugs & Sockets
