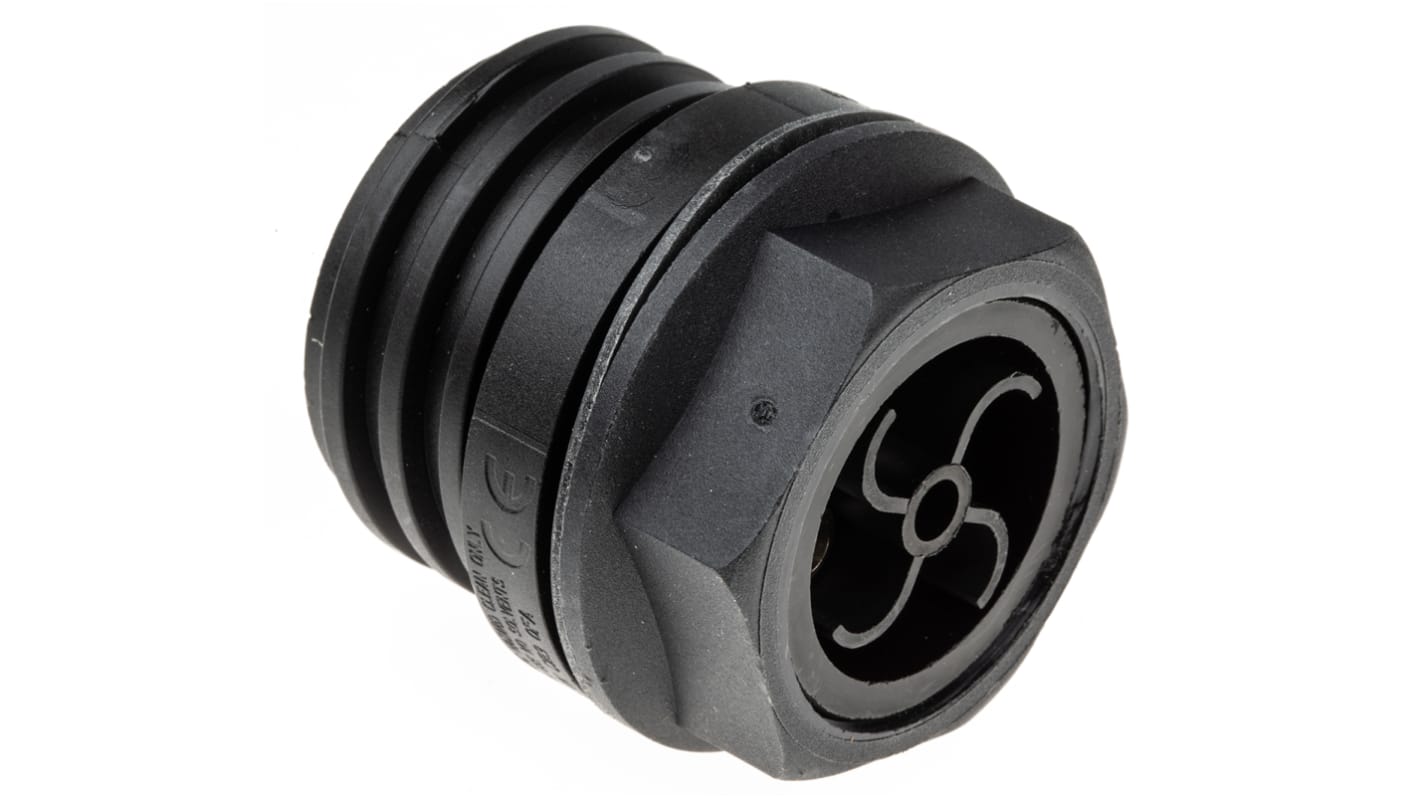

Bulgin Circular Connector, 4 Contacts, Panel Mount, Socket, Female, IP68, Buccaneer 900 Series

RS Stock No.:: 344-4223
Mfr. Part No.:: PX0931/04/S
Brand:: Bulgin

Bulgin Circular Connector, 4 Contacts, Panel Mount, Socket, Female, IP68, Buccaneer 900 Series

Save 19% when you buy 100 units

Subtotal (1 unit)*

£34.44

(exc. VAT)

£41.33

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

275 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£34.44
10 - 49	£31.65
50 - 99	£29.97
100 +	£27.59

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

TE Connectivity RN73 5.9kΩ, 0805 (2012M) Thin Film SMD Resistor ±0.1% 0.1W

RS Stock No.: 215-3241

Each (In a Pack of 5)

£0.822

(exc. VAT)

£0.986

(inc. VAT)

RS Stock No.:: 344-4223
Mfr. Part No.:: PX0931/04/S
Brand:: Bulgin

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Bulgin
	Number of Contacts	4
	Mounting Type	Panel Mount
	Connector Size	Standard
	Plug/Socket	Socket
	Contact Gender	Female
	Termination Method	Screw
	IP Rating	IP68
	Current Rating	25A
	Body Orientation	Straight
	Series	Buccaneer 900
	Voltage Rating	600.0 V
	Mating Type	Threaded
	Shell Size	50
	Housing Material	Polyamide
	Strain Relief	No
	Contact Plating	Nickel
	Shielded/Unshielded	Unshielded
	Contact Material	Brass
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+85°C
	Outer Diameter	50mm
	Series Number	PX0931

	Select all
	Brand Bulgin
	Number of Contacts 4
	Mounting Type Panel Mount
	Connector Size Standard
	Plug/Socket Socket
	Contact Gender Female
	Termination Method Screw
	IP Rating IP68
	Current Rating 25A
	Body Orientation Straight
	Series Buccaneer 900
	Voltage Rating 600.0 V
	Mating Type Threaded
	Shell Size 50
	Housing Material Polyamide
	Strain Relief No
	Contact Plating Nickel
	Shielded/Unshielded Unshielded
	Contact Material Brass
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +85°C
	Outer Diameter 50mm
	Series Number PX0931

COO (Country of Origin):: TN

Bulgin Buccaneer 900 Series Circular Connector, 4 Contacts, IP68 - PX0931/04/S

This panel mount connector is designed for robust performance in harsh environments. It features a standard socket configuration with four contacts, ensuring strong electrical connections. The connector has a durable plastic body and is compatible with panel thicknesses ranging from 3mm to 7mm, making it ideal for various applications where space and reliability are crucial.

Features & Benefits

• Waterproof and dustproof to IP68 when mated
• Positive fast-acting locking ring, easy to operate
• High current rating of 25A supports various applications
• Suitable for use with 10AWG to 14AWG conductors
• Single hole fitting with anti-rotation key for stability
• Supplied with a high-grade sealing gasket for added reliability

Applications

• Installed in outdoor electrical equipment enclosures
• Designed for use in industrial machinery connections
• Ideal for connections in harsh weather environments

What are the temperature limits for operational reliability?

The connector operates effectively between -40°C and +85°C, ensuring reliability in extreme conditions without performance degradation.

How does the sealing mechanism contribute to its function?

The high-grade sealing gasket ensures that the connector maintains its IP68 rating, protecting against dust and water ingress for enhanced durability.

Can this connector accommodate different conductor sizes?

Yes, it is capable of accommodating conductors from 2.5mm² to 4mm², making it versatile for various electrical configurations and needs.

What methods are recommended for installation to ensure optimal performance?

Proper mounting using the anti-rotation key and ensuring tightness of the coupling will promote optimal performance and reliability during use.

Approvals

Maxi Buccaneer

Heavy duty, rugged connectors, suitable for single and three phase,applications in a variety of harsh environments such as sewage and water works, construction sites, gas/petrol chemical works, external lighting, HVAC equipment and general industrial uses. Based on the standard and Mini Buccaneer series, these connectors offer versatile configurations with interchangeable plug and socket inserts.

Water and dustproof
Leading earth pin
Scoop proof contacts
Easy assembly, no special tooling required
Field serviceable, screw termination
Positive locking keyways, cannot be mis-mated
Bulkhead adaptor suitable for 45° or 90° mounting with Flange Plugs & Sockets
