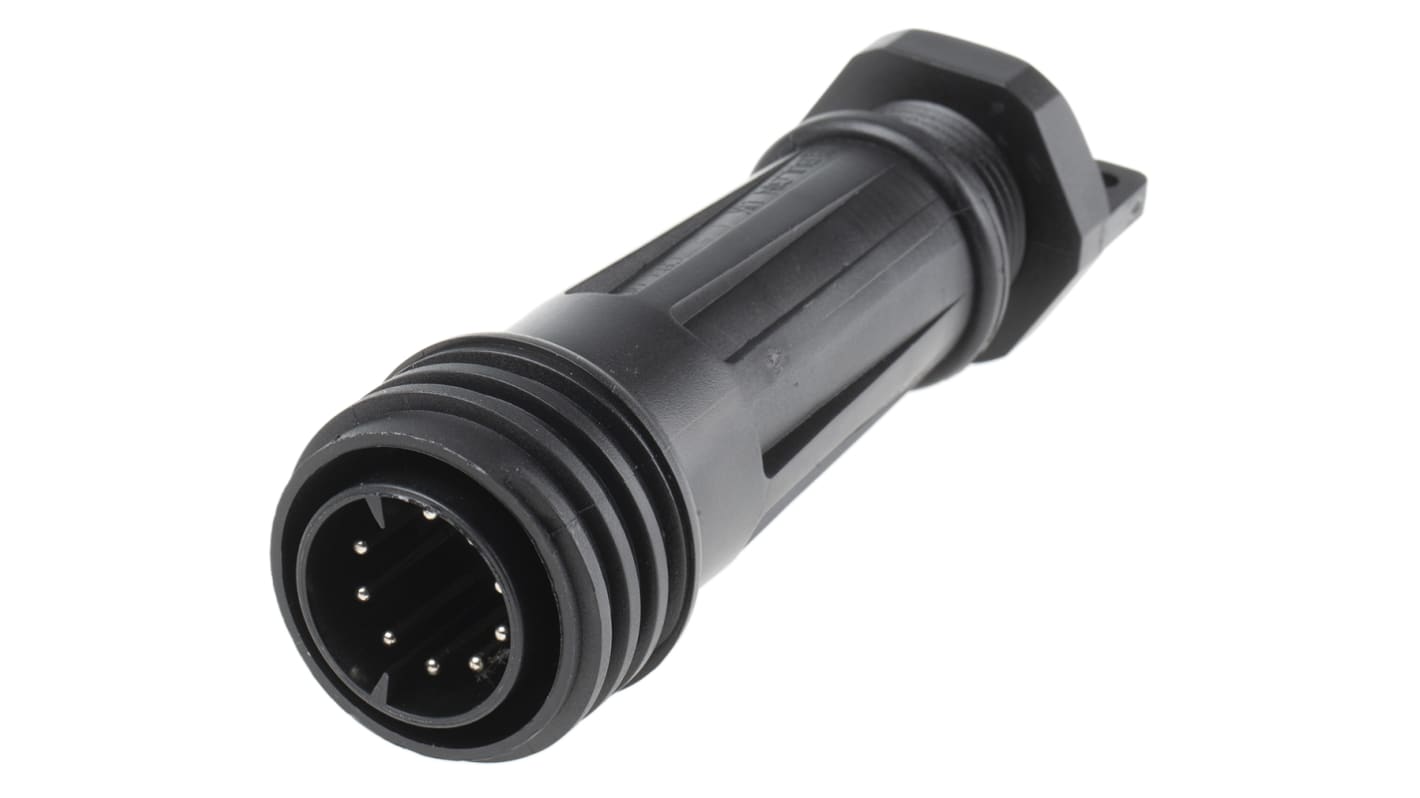

Bulgin Circular Connector, 10 Contacts, Cable Mount, Plug, Male, IP68, Buccaneer 900 Series
- RS Stock No.:
- 575-721
- Mfr. Part No.:
- PXA921/10/P
- Brand:
- Bulgin
Subtotal (1 unit)*
£68.67
(exc. VAT)
£82.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 7 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £68.67 |
*price indicative
- RS Stock No.:
- 575-721
- Mfr. Part No.:
- PXA921/10/P
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bulgin | |
Number of Contacts | 10 | |
Mounting Type | Cable Mount | |
Connector Size | Standard | |
Plug/Socket | Plug | |
Contact Gender | Male | |
Termination Method | Screw | |
IP Rating | IP68 | |
Current Rating | 10.0A | |
Series | Buccaneer 900 | |
Body Orientation | Straight | |
Voltage Rating | 250.0 V | |
Mating Type | Threaded | |
Shell Size | 46 | |
Housing Material | Polymer | |
Strain Relief | Yes | |
Contact Plating | Nickel | |
Series Number | PXA921 | |
Maximum Operating Temperature | +85°C | |
Outer Diameter | 46mm | |
Contact Material | Brass | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand Bulgin | ||
Number of Contacts 10 | ||
Mounting Type Cable Mount | ||
Connector Size Standard | ||
Plug/Socket Plug | ||
Contact Gender Male | ||
Termination Method Screw | ||
IP Rating IP68 | ||
Current Rating 10.0A | ||
Series Buccaneer 900 | ||
Body Orientation Straight | ||
Voltage Rating 250.0 V | ||
Mating Type Threaded | ||
Shell Size 46 | ||
Housing Material Polymer | ||
Strain Relief Yes | ||
Contact Plating Nickel | ||
Series Number PXA921 | ||
Maximum Operating Temperature +85°C | ||
Outer Diameter 46mm | ||
Contact Material Brass | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TN
Bulgin Buccaneer 900 Series Circular Connector, 10 Contacts, IP68 - PXA921/10/P
This circular connector is designed for robust applications within industrial environments. Featuring ten contacts, it is a flexible and efficient solution for various connection needs. With a cable mount orientation and IP68 rating, it ensures reliable performance even under rigorous conditions.
Features & Benefits
• IP68 rating guarantees waterproof and dustproof reliability
• Capable of operating in temperatures from -40 °C to +85 °C
• Nickel-plated contacts enhance corrosion resistance
• Male plug connector provides secure connectivity
• Screw termination method offers ease of installation
• Strain relief integrated for robust mechanical support
• Capable of operating in temperatures from -40 °C to +85 °C
• Nickel-plated contacts enhance corrosion resistance
• Male plug connector provides secure connectivity
• Screw termination method offers ease of installation
• Strain relief integrated for robust mechanical support
Applications
• Used for industrial machinery and equipment connections
• Ideal for automation systems requiring waterproof connectors
• Suitable for electrical systems in harsh environments
• Employed in outdoor facilities needing high-temperature resilience
• Ideal for automation systems requiring waterproof connectors
• Suitable for electrical systems in harsh environments
• Employed in outdoor facilities needing high-temperature resilience
What is the maximum current rating for this connector?
The connector is rated for a maximum current of 10.0A, ensuring it can handle various power requirements in industrial applications.
How does this connector maintain its IP68 rating?
It utilises advanced sealing techniques, including O-rings and sealing gaskets, to prevent water and dust ingress, thereby maintaining its IP68 standards under challenging conditions.
Is the connector suitable for use with various cable diameters?
This product supports cable diameters from 7mm to 22mm, making it versatile for different cable sizes used in industrial settings.
What materials are the contacts made from and how do they benefit performance?
The contacts are composed of brass with a nickel plating, providing excellent conductivity and resistance to corrosion, which enhances longevity and reliability.
How does the design support ease of installation?
It features a straightforward screw termination method, which allows for quick and effective installation without the need for specialised tools.
Approvals
UL
Maxi Buccaneer
Heavy duty, rugged connectors, suitable for single and three phase,applications in a variety of harsh environments such as sewage and water works, construction sites, gas/petrol chemical works, external lighting, HVAC equipment and general industrial uses. Based on the standard and Mini Buccaneer series, these connectors offer versatile configurations with interchangeable plug and socket inserts.
Water and dustproof
Leading earth pin
Scoop proof contacts
Easy assembly, no special tooling required
Field serviceable, screw termination
Positive locking keyways, cannot be mis-mated
Bulkhead adaptor suitable for 45° or 90° mounting with Flange Plugs & Sockets
Leading earth pin
Scoop proof contacts
Easy assembly, no special tooling required
Field serviceable, screw termination
Positive locking keyways, cannot be mis-mated
Bulkhead adaptor suitable for 45° or 90° mounting with Flange Plugs & Sockets
