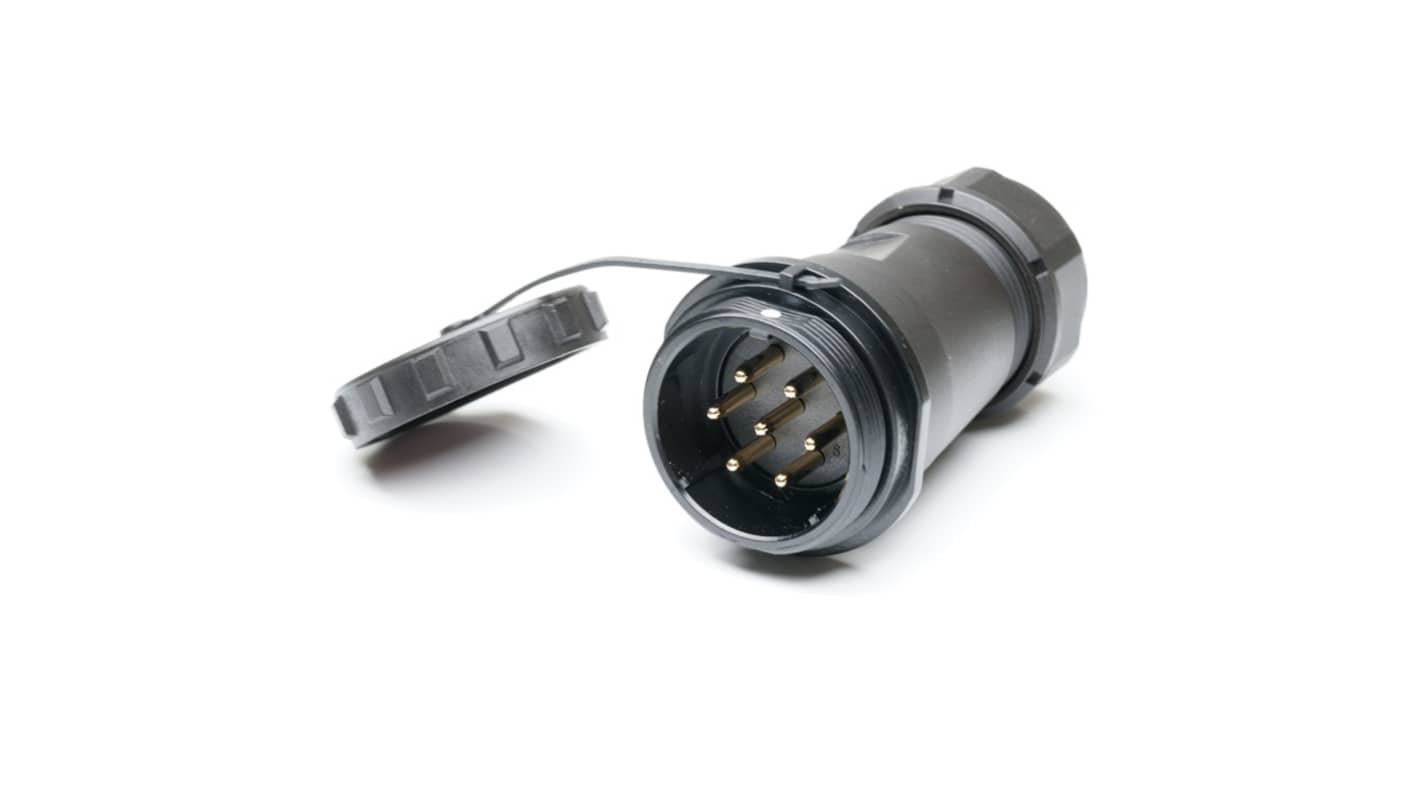

RS PRO Industrial Circular Connectors, 7 Contacts, In-line, SP29 Connector, Socket, Male, IP68
- RS Stock No.:
- 304-536
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£11.10
(exc. VAT)
£13.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £11.10 |
10 + | £10.21 |
*price indicative
- RS Stock No.:
- 304-536
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Contacts | 7 | |
Mounting Type | In-line | |
Connector Size | SP29 | |
Plug/Socket | Socket | |
Contact Gender | Male | |
Termination Method | Solder | |
IP Rating | IP68 | |
Current Rating | 25A | |
Body Orientation | Straight | |
Voltage Rating | 500V ac | |
Mating Type | Threaded Coupling | |
Shell Size | 29mm | |
Housing Material | Nylon 66, PC | |
Pole Format | 7P | |
Shielded/Unshielded | Unshielded | |
Strain Relief | No | |
Contact Plating | Gold | |
Minimum Operating Temperature | -40°C | |
Contact Material | Brass | |
Maximum Operating Temperature | 85°C | |
Outer Diameter | 39mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Contacts 7 | ||
Mounting Type In-line | ||
Connector Size SP29 | ||
Plug/Socket Socket | ||
Contact Gender Male | ||
Termination Method Solder | ||
IP Rating IP68 | ||
Current Rating 25A | ||
Body Orientation Straight | ||
Voltage Rating 500V ac | ||
Mating Type Threaded Coupling | ||
Shell Size 29mm | ||
Housing Material Nylon 66, PC | ||
Pole Format 7P | ||
Shielded/Unshielded Unshielded | ||
Strain Relief No | ||
Contact Plating Gold | ||
Minimum Operating Temperature -40°C | ||
Contact Material Brass | ||
Maximum Operating Temperature 85°C | ||
Outer Diameter 39mm | ||
- COO (Country of Origin):
- CN
RS PRO Industrial Circular Connector, 7 Contacts, IP68, Threaded Coupling
This RS PRO Industrial Circular Connector is designed for high-performance applications requiring superior water resistance. It is ideal for use in demanding environments, providing reliable power and signal connectivity. The connector's robust construction ensures seamless operation in both industrial and outdoor settings.
Features and Benefits
IP68 Rating: Ensures complete protection against dust and water ingress, making it suitable for harsh environments
Threaded Coupling: Provides secure and reliable connections, preventing accidental disconnection
Nylon 66 and Polycarbonate Housing: Offers durability and resistance to environmental factors
Gold-Plated Contacts: Enhances conductivity and reduces oxidation for long-term reliability
7-Pole Format: Supports versatile connectivity options for various applications
500 V AC Voltage Rating: Suitable for high-voltage applications, ensuring safety and performance
25 A Current Rating: Capable of handling significant power loads
Threaded Coupling: Provides secure and reliable connections, preventing accidental disconnection
Nylon 66 and Polycarbonate Housing: Offers durability and resistance to environmental factors
Gold-Plated Contacts: Enhances conductivity and reduces oxidation for long-term reliability
7-Pole Format: Supports versatile connectivity options for various applications
500 V AC Voltage Rating: Suitable for high-voltage applications, ensuring safety and performance
25 A Current Rating: Capable of handling significant power loads
Applications
Industrial machinery
Outdoor equipment
Automotive systems
Marine applications
Outdoor equipment
Automotive systems
Marine applications
Additional Information
Key standards: Complies with IP68 for water and dust resistance
Contact Material: Brass with gold plating for enhanced durability
Operating Temperature Range: -40 °C to 85 °C, suitable for extreme conditions
Termination Method: Solder, ensuring secure and stable connections
Contact Material: Brass with gold plating for enhanced durability
Operating Temperature Range: -40 °C to 85 °C, suitable for extreme conditions
Termination Method: Solder, ensuring secure and stable connections
