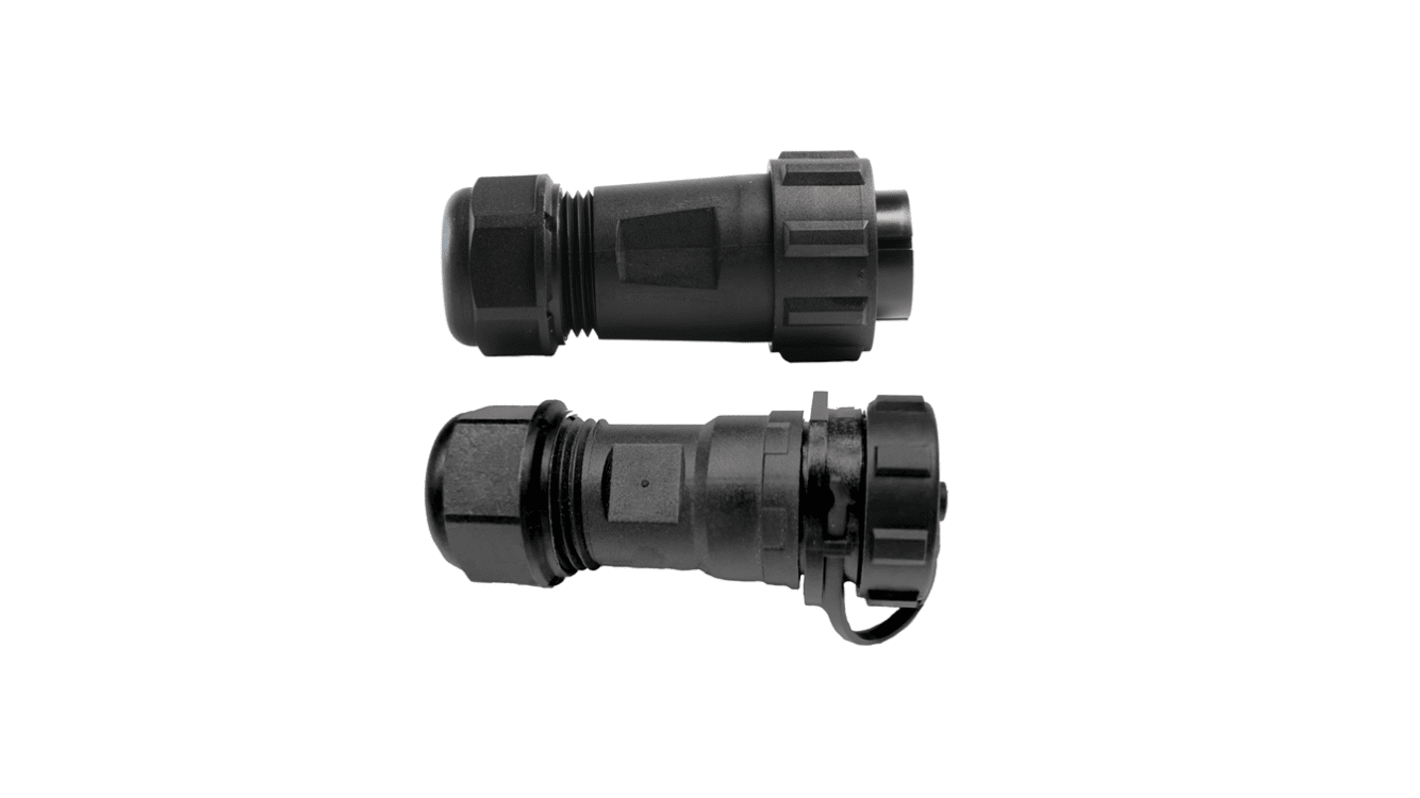

RS PRO Industrial Circular Connectors, 5, 5 Contacts, Cable, In-Line, SP21 Connector, Plug and Socket, Male and Female
- RS Stock No.:
- 304-423
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 set)*
£18.19
(exc. VAT)
£21.83
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 59 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Set(s) | Per Set |
|---|---|
| 1 - 9 | £18.19 |
| 10 + | £16.74 |
*price indicative
- RS Stock No.:
- 304-423
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Contacts | 5, 5 | |
| Mounting Type | Cable, In-Line | |
| Connector Size | SP21 | |
| Plug/Socket | Plug, Socket | |
| Contact Gender | Female, Male | |
| Termination Method | Screw | |
| IP Rating | IP68 | |
| Current Rating | 10A | |
| Body Orientation | Straight | |
| Voltage Rating | 500V ac | |
| Shell Size | 21mm | |
| Mating Type | Threaded Coupling | |
| Housing Material | Nylon 66, PC | |
| Pole Format | 5P | |
| Strain Relief | No | |
| Contact Plating | Gold | |
| Shielded/Unshielded | Unshielded | |
| Minimum Operating Temperature | -40°C | |
| Outer Diameter | 29, 29.3mm | |
| Contact Material | Brass | |
| Maximum Operating Temperature | 85°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Contacts 5, 5 | ||
Mounting Type Cable, In-Line | ||
Connector Size SP21 | ||
Plug/Socket Plug, Socket | ||
Contact Gender Female, Male | ||
Termination Method Screw | ||
IP Rating IP68 | ||
Current Rating 10A | ||
Body Orientation Straight | ||
Voltage Rating 500V ac | ||
Shell Size 21mm | ||
Mating Type Threaded Coupling | ||
Housing Material Nylon 66, PC | ||
Pole Format 5P | ||
Strain Relief No | ||
Contact Plating Gold | ||
Shielded/Unshielded Unshielded | ||
Minimum Operating Temperature -40°C | ||
Outer Diameter 29, 29.3mm | ||
Contact Material Brass | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- CN
RS PRO Industrial Circular Connector, IP68 Waterproof, 5 Contacts
RS PRO offers a robust industrial circular connector designed for applications requiring high water resistance and reliable performance. This connector is ideal for environments where durability and flexibility in connections are crucial, providing options for panel mount, cable mount, and in-line cable mount configurations. The 90-degree cable mount option enhances installation flexibility, making it suitable for various industrial settings.
Features and Benefits
IP68 Waterproof Rating: Ensures protection against dust and water, suitable for harsh environments
Threaded Coupling: Provides secure and reliable connections, reducing the risk of disconnection
Multiple Mounting Options: Offers panel mount, cable mount, and in-line cable mount for versatile installation
5 Contacts: Supports multiple connections, enhancing functionality
Nylon 66 and Polycarbonate Housing: Delivers durability and resistance to environmental factors
Gold-Plated Contacts: Ensures excellent conductivity and corrosion resistance
500 V AC Voltage Rating: Suitable for high-voltage applications
Operating Temperature Range -40°C to 85°C: Performs reliably in extreme temperatures
Threaded Coupling: Provides secure and reliable connections, reducing the risk of disconnection
Multiple Mounting Options: Offers panel mount, cable mount, and in-line cable mount for versatile installation
5 Contacts: Supports multiple connections, enhancing functionality
Nylon 66 and Polycarbonate Housing: Delivers durability and resistance to environmental factors
Gold-Plated Contacts: Ensures excellent conductivity and corrosion resistance
500 V AC Voltage Rating: Suitable for high-voltage applications
Operating Temperature Range -40°C to 85°C: Performs reliably in extreme temperatures
Applications
Industrial machinery
Outdoor equipment
Marine applications
Automation systems
Outdoor equipment
Marine applications
Automation systems
Additional Information
Available in both male and female contact genders
Unshielded design for general-purpose use
Screw termination method for secure and easy installation
Complies with industry standards for quality and performance
Unshielded design for general-purpose use
Screw termination method for secure and easy installation
Complies with industry standards for quality and performance
