RS PRO Industrial Circular Connectors, 5, 5 Contacts, Cable, In-Line, SP17 Connector, Plug and Socket, Male and Female
- RS Stock No.:
- 304-407
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 set)*
£15.48
(exc. VAT)
£18.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 10 unit(s) shipping from 15 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Set(s) | Per Set |
|---|---|
| 1 - 9 | £15.48 |
| 10 + | £14.24 |
*price indicative
- RS Stock No.:
- 304-407
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Contacts | 5, 5 | |
| Mounting Type | Cable, In-Line | |
| Connector Size | SP17 | |
| Plug/Socket | Plug, Socket | |
| Contact Gender | Female, Male | |
| Termination Method | Solder | |
| IP Rating | IP68 | |
| Current Rating | 5A | |
| Body Orientation | Straight | |
| Voltage Rating | 500V ac | |
| Shell Size | 17mm | |
| Mating Type | Threaded Coupling | |
| Housing Material | Nylon 66, PC | |
| Pole Format | 5P | |
| Contact Plating | Gold | |
| Strain Relief | No | |
| Shielded/Unshielded | Unshielded | |
| Contact Material | Brass | |
| Outer Diameter | 24.6, 25mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Contacts 5, 5 | ||
Mounting Type Cable, In-Line | ||
Connector Size SP17 | ||
Plug/Socket Plug, Socket | ||
Contact Gender Female, Male | ||
Termination Method Solder | ||
IP Rating IP68 | ||
Current Rating 5A | ||
Body Orientation Straight | ||
Voltage Rating 500V ac | ||
Shell Size 17mm | ||
Mating Type Threaded Coupling | ||
Housing Material Nylon 66, PC | ||
Pole Format 5P | ||
Contact Plating Gold | ||
Strain Relief No | ||
Shielded/Unshielded Unshielded | ||
Contact Material Brass | ||
Outer Diameter 24.6, 25mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- CN

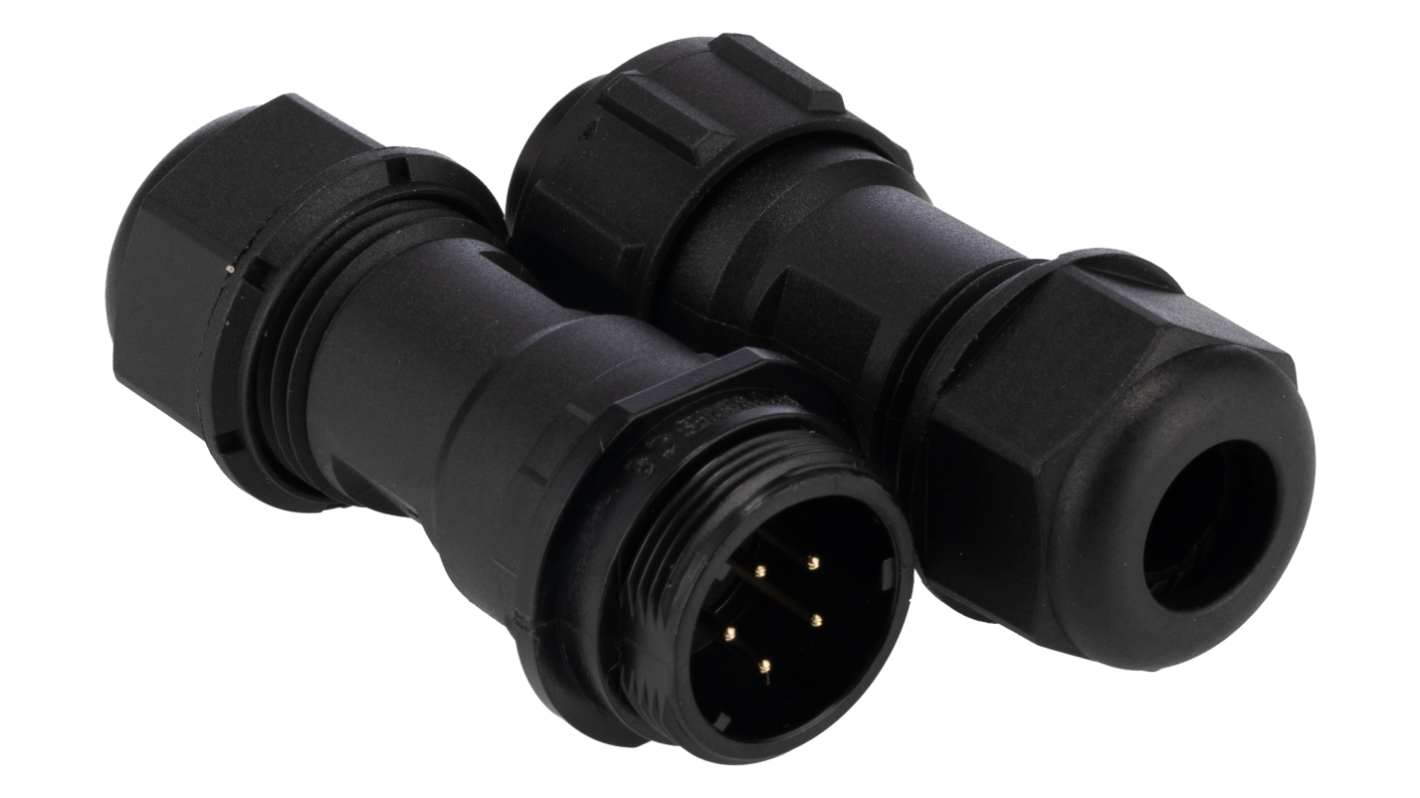

RS PRO Industrial Circular Connector, IP68 Waterproof, 5 Contacts
The RS PRO Industrial Circular Connector is designed to deliver high performance in demanding environments requiring reliable power or signal connections. With its IP68 waterproof rating, this connector is ideal for outdoor and industrial applications where durability and protection against water ingress are crucial.
Features and Benefits
IP68 Waterproof: Ensures protection against dust and water, making it suitable for harsh environments.
Threaded Coupling: Provides secure and reliable connections, preventing accidental disconnection.
Multiple Termination Options: Available in solder, screw, horizontal mount screw, and crimp termination for versatile installation.
Nylon 66 and Polycarbonate Housing: Offers robust protection and resistance to environmental factors.
Gold-Plated Contacts: Enhances conductivity and reduces the risk of corrosion.
Wide Temperature Range: Operates effectively between -40 °C and 85 °C, suitable for various climates.
Threaded Coupling: Provides secure and reliable connections, preventing accidental disconnection.
Multiple Termination Options: Available in solder, screw, horizontal mount screw, and crimp termination for versatile installation.
Nylon 66 and Polycarbonate Housing: Offers robust protection and resistance to environmental factors.
Gold-Plated Contacts: Enhances conductivity and reduces the risk of corrosion.
Wide Temperature Range: Operates effectively between -40 °C and 85 °C, suitable for various climates.
Applications
Industrial automation
Outdoor equipment
Marine applications
Renewable energy systems
Outdoor equipment
Marine applications
Renewable energy systems
Additional Information
Available in plug and socket configurations
Supports both male and female contact genders
Suitable for cable mount and in-line mount applications
Complies with high voltage rating of 500 V AC
Supports both male and female contact genders
Suitable for cable mount and in-line mount applications
Complies with high voltage rating of 500 V AC
