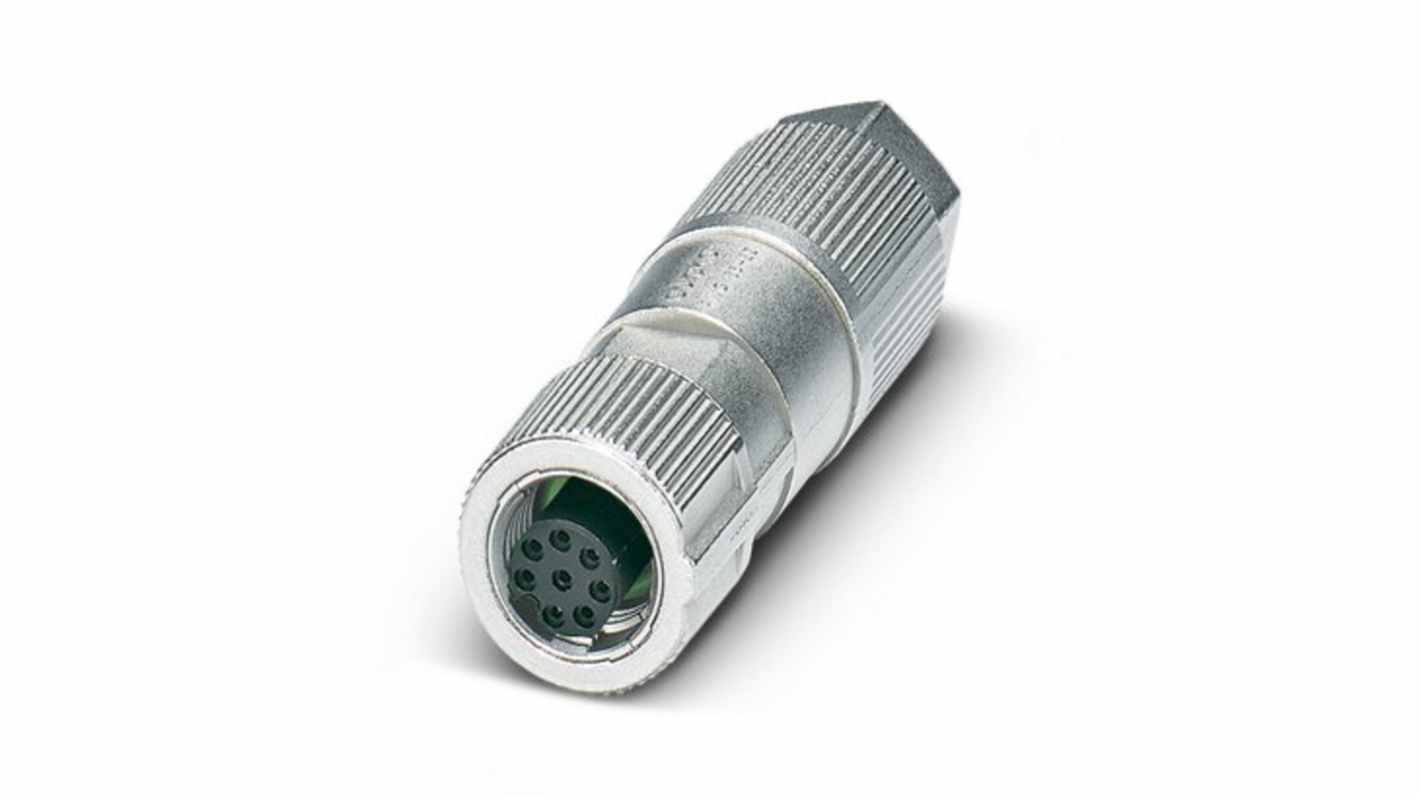

Phoenix Contact Circular Connector, 8 Contacts, Cable, M12 Connector, Socket, Female, IP65, IP67, SACC Series
- RS Stock No.:
- 280-610
- Mfr. Part No.:
- 1421680
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£42.35
(exc. VAT)
£50.82
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 2 unit(s) shipping from 10 August 2026
- Plus 13 unit(s) shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £42.35 |
*price indicative
- RS Stock No.:
- 280-610
- Mfr. Part No.:
- 1421680
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 8 | |
| Product Type | Circular Connector | |
| Mount Type | Cable | |
| Connector Size | M12 | |
| Current | 2A | |
| Plug/Socket | Socket | |
| Contact Gender | Female | |
| IP Rating | IP65, IP67 | |
| Series | SACC | |
| Orientation | Straight | |
| Voltage | 48, 60V ac | |
| Coding | A | |
| Termination Type | IDC | |
| Minimum Operating Temperature | -40°C | |
| Mating Type | Standard | |
| Shell Size | M12 | |
| Maximum Operating Temperature | 85°C | |
| Housing Material | Die Cast Zinc | |
| Pole Format | 8 | |
| Standards/Approvals | EAC | |
| Contact Plating | Nickel Gold Alloy | |
| Contact Material | Copper Tin | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 8 | ||
Product Type Circular Connector | ||
Mount Type Cable | ||
Connector Size M12 | ||
Current 2A | ||
Plug/Socket Socket | ||
Contact Gender Female | ||
IP Rating IP65, IP67 | ||
Series SACC | ||
Orientation Straight | ||
Voltage 48, 60V ac | ||
Coding A | ||
Termination Type IDC | ||
Minimum Operating Temperature -40°C | ||
Mating Type Standard | ||
Shell Size M12 | ||
Maximum Operating Temperature 85°C | ||
Housing Material Die Cast Zinc | ||
Pole Format 8 | ||
Standards/Approvals EAC | ||
Contact Plating Nickel Gold Alloy | ||
Contact Material Copper Tin | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Data connector designed for rugged field applications. Engineered for Ethernet capabilities, this connector ensures reliable data transmission with a robust design that withstands harsh environmental conditions. The product features 8 positions with a straight socket configuration, delivering exceptional connectivity for a variety of devices. Its innovative insulation displacement connection method allows for quick and effortless assembly, bypassing the need for wire stripping.
Easy assembly process that saves time during installation
Provides reliable protection against electromagnetic interference
Superior housing material ensures resistance to mechanical stress
Compatible with a wide range of cable diameters enhancing flexibility
Achieves high data transmission speeds of 1 Gbps
Constructed with halogen free materials promoting environmental safety
Certified for use in various applications including rail and industrial sectors
