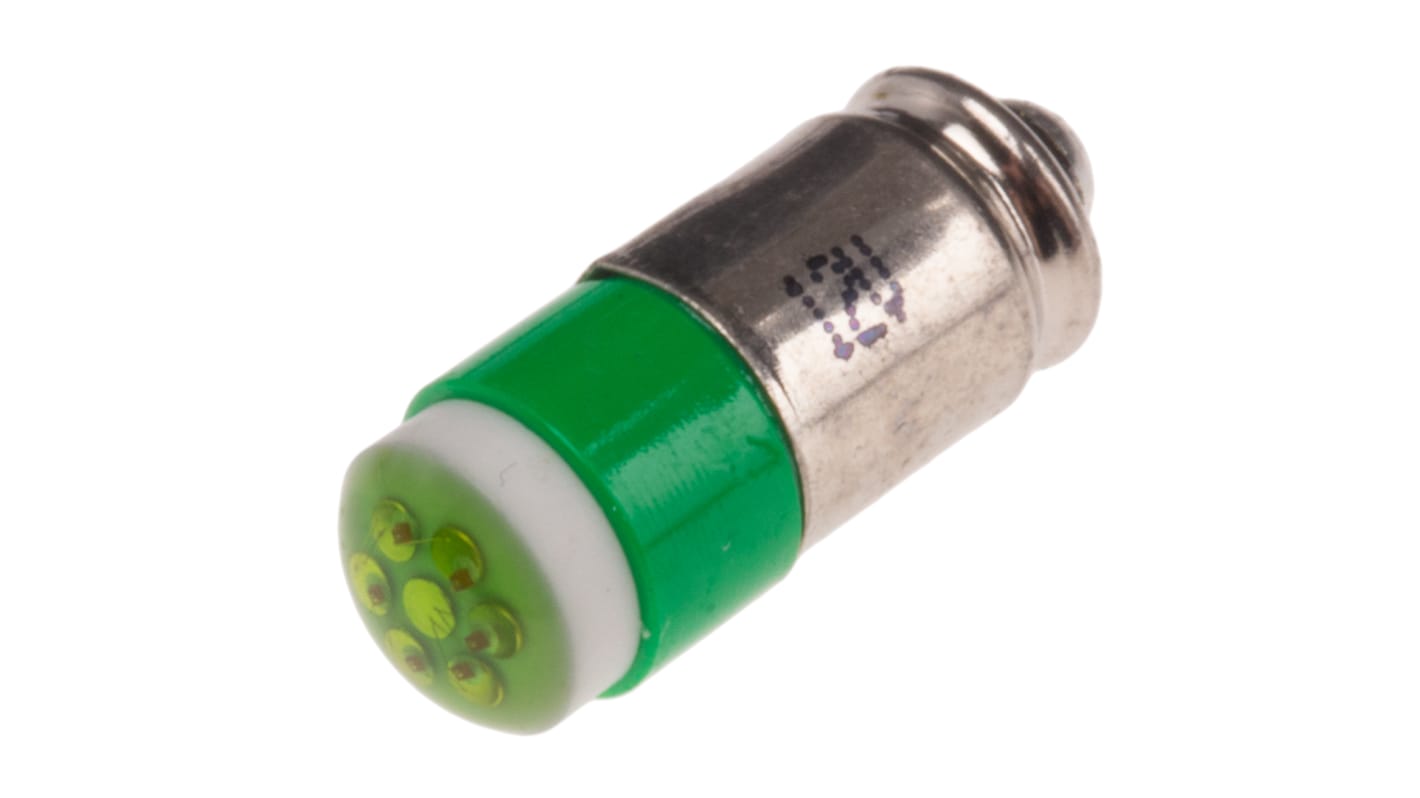

RS PRO Green LED Indicator Lamp, 12V dc, Midget Groove Base, 6mm Diameter, 35mcd

RS Stock No.:: 204-647
Brand:: RS PRO

RS PRO Green LED Indicator Lamp, 12V dc, Midget Groove Base, 6mm Diameter, 35mcd

170 In stock - FREE next working day delivery available

78 available from Europe for delivery within 1 working day(s).

Price Each

£6.59

(exc. VAT)

£7.91

(inc. VAT)

Units	Per unit
1 - 24	£6.59
25 - 49	£5.82
50 - 99	£5.19
100 - 249	£4.46
250 +	£3.80

RS Stock No.:: 204-647
Brand:: RS PRO

Technical Reference

RS Pro Datasheet

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

Midget Groove Multi-Chip LEDs, T1 3/4

Brought to you under the trusted RS Brand, this multi-chip LED indicator lamp has six LED's, ensuring a level of brightness on par with that of incandescent filament lamp equivalents, but with lower current consumption and longer life. The midget groove shape of this indicator lamp assures quick and secure mounting.

Features and Benefits:

• Robust and Compact lamp
• LED lamps contain a current limiting resistor
• Positive to be connected to the base contact
• Size T1 3/4

Multi-Chip LEDs

Multi-chip LEDs are semi-conducting alternatives to incandescent filament lamps. Construction consists of standard filament lamp bases incorporating a current limiting resistor and a cluster of LED chips bonded onto a substrate. Multi-chip LEDs have many advantages over standard filament lamps.

Very high immunity to shock and vibration
Current consumption is between 50 and 65% lower
Lower operating temperatures

Note

The operating voltage must not be exceeded by more than 10% as this will result in reduced life expectancy.

Specifications

Attribute	Value
Voltage Rating	12V dc
Light Output Colour	Green
Lamp Type	LED
Intensity	35mcd
Lamp Base	Midget Groove
Chip Type	Multichip
Diameter	6mm
Length	15.25mm
Peak Wavelength	565nm
Current Rating	30mA
Life Hours	100000h
