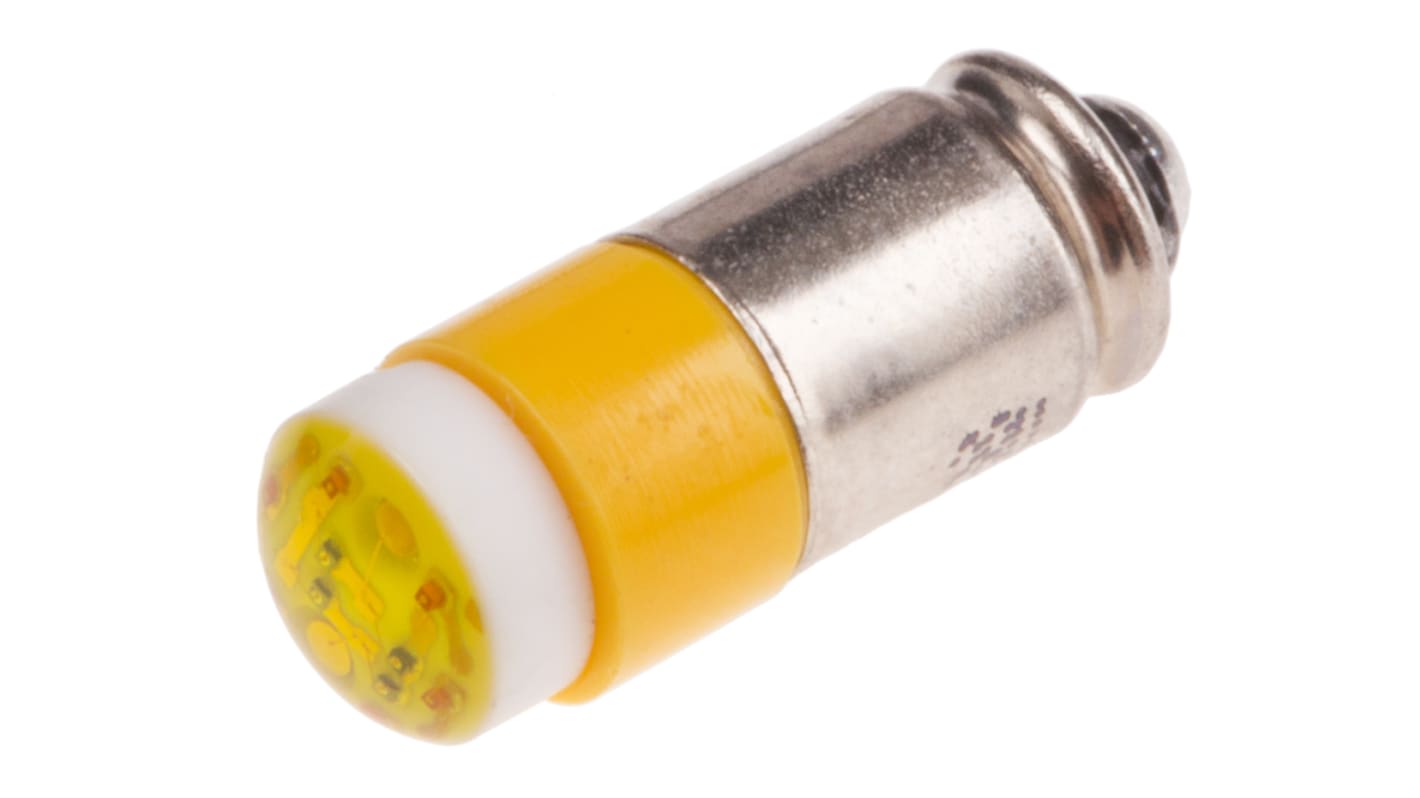

RS PRO Yellow Indicator Lamp Multichip, 28V ac/dc, Midget Groove Base, 6 mm Diameter

View all Indicator Lamps
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
RS PRO Yellow Indicator Lamp Single Chip, 28V ac/dc, Midget Groove Base, 6 mm Diameter
RS Stock No.
207-006

Each

£6.23

(exc. VAT)

£7.48

(inc. VAT)

RS Stock No.:
204-732
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Indicator Lamp

Voltage

28V ac/dc

Light Output Colour

Yellow

Current

14mA

Lamp Base

Midget Groove

Chip Type

Multichip

Diameter

6mm

Length

15.25mm

Viewing Angle

180 °

Peak Wavelength

585nm

Life Hours

100000h

T1 3/4 midget groove (ac/dc) multi-chip LEDs


LED lamps contain 6 LED chips, full wave bridge rectifier and a current limiting resistor

Bi-polar dc. connections

Multi-Chip LEDs


Multi-chip LEDs are semi-conducting alternatives to incandescent filament lamps. Construction consists of standard filament lamp bases incorporating a current limiting resistor and a cluster of LED chips bonded onto a substrate. Multi-chip LEDs have many advantages over standard filament lamps.

Very high immunity to shock and vibration

Current consumption is between 50 and 65% lower

Lower operating temperatures

Note

The operating voltage must not be exceeded by more than 10% as this will result in reduced life expectancy.
