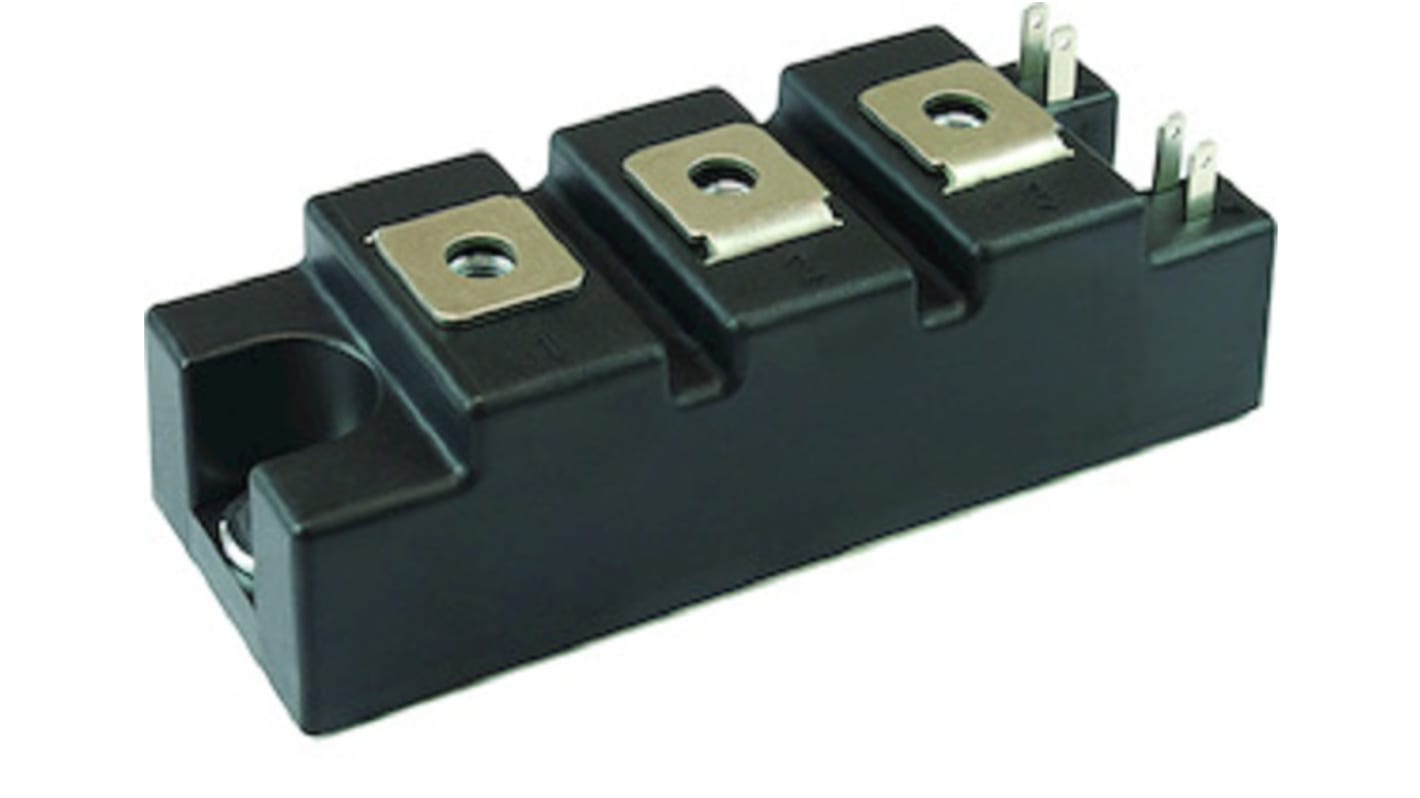

Vishay VS-GT100TS065S, Type N-Channel Half Bridge IGBT, 247 A 650 V, 7-Pin INT-A-PAK, Panel

View all IGBTs
Bulk discount available

Subtotal (1 unit)*

£65.84

(exc. VAT)

£79.01

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£65.84
5 - 9£64.15
10 +£62.55

*price indicative

Packaging Options:
RS Stock No.:
276-6403
Mfr. Part No.:
VS-GT100TS065S
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

IGBT

Maximum Continuous Collector Current Ic

247A

Maximum Collector Emitter Voltage Vceo

650V

Number of Transistors

2

Maximum Power Dissipation Pd

517W

Package Type

INT-A-PAK

Configuration

Half Bridge

Mount Type

Panel

Channel Type

Type N

Pin Count

7

Maximum Gate Emitter Voltage VGEO

±20 V

Maximum Collector Emitter Saturation Voltage VceSAT

1.05V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

175°C

Width

35.4 mm

Length

94.4mm

Height

30mm

Standards/Approvals

UL E78996

Automotive Standard

No

COO (Country of Origin):
IT
The Vishay IGBT features Gen 4 FRED Pt technology anti parallel diodes with ultra soft reverse recovery characteristics. It is optimized for high current inverter stages (AC TIG welding machines).

UL approved

Very low conduction losses

Low EMI
