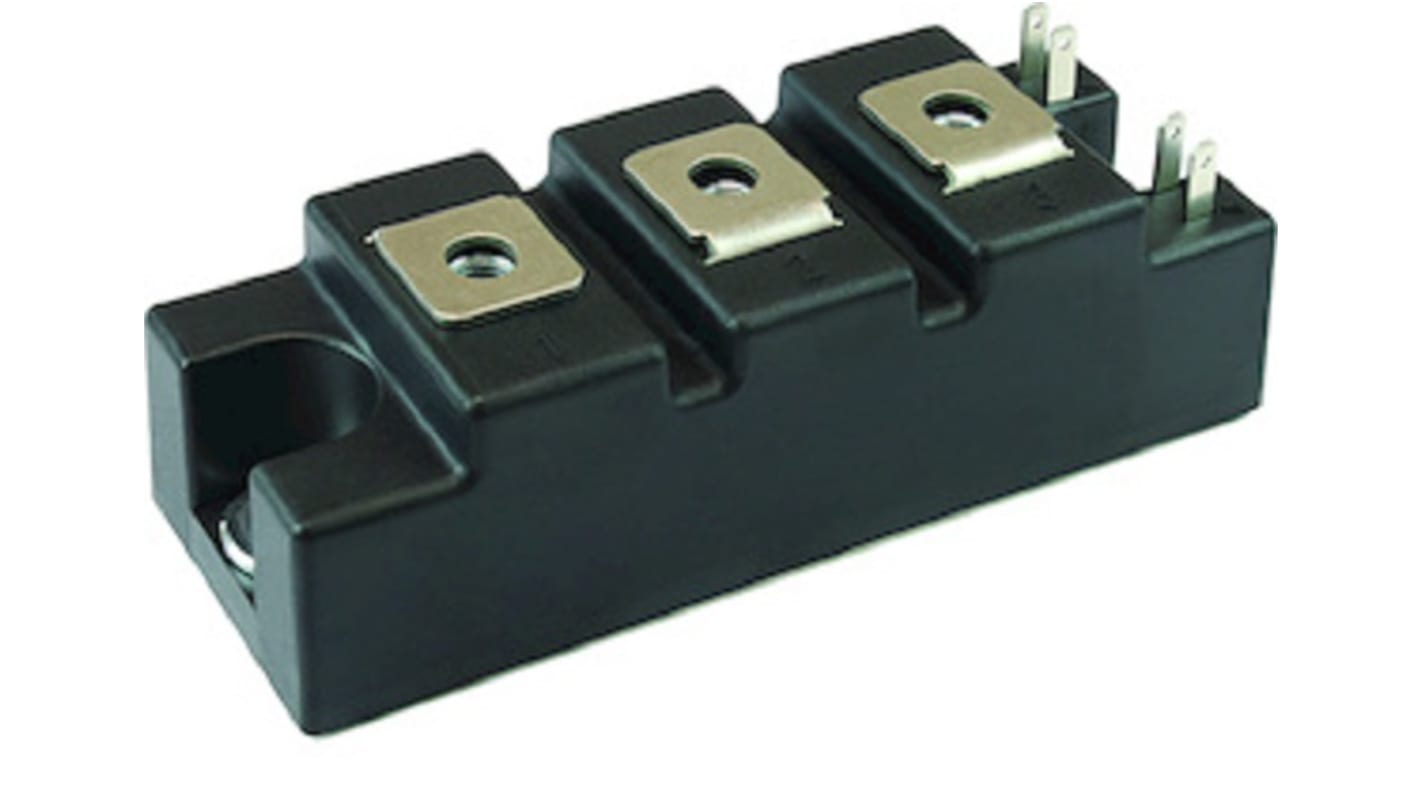

Vishay VS-GT200TS065S, N-Channel Half Bridge IGBT, 476 A 650 V, 7-Pin INT-A-PAK, Panel
- RS Stock No.:
- 276-6408
- Mfr. Part No.:
- VS-GT200TS065S
- Brand:
- Vishay
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 276-6408
- Mfr. Part No.:
- VS-GT200TS065S
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | IGBT | |
| Maximum Continuous Collector Current Ic | 476A | |
| Maximum Collector Emitter Voltage Vceo | 650V | |
| Number of Transistors | 2 | |
| Maximum Power Dissipation Pd | 1kW | |
| Configuration | Half Bridge | |
| Package Type | INT-A-PAK | |
| Mount Type | Panel | |
| Channel Type | N | |
| Pin Count | 7 | |
| Maximum Gate Emitter Voltage VGEO | ±20 V | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.09V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | UL E78996 | |
| Length | 94.4mm | |
| Width | 3mm | |
| Height | 3mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type IGBT | ||
Maximum Continuous Collector Current Ic 476A | ||
Maximum Collector Emitter Voltage Vceo 650V | ||
Number of Transistors 2 | ||
Maximum Power Dissipation Pd 1kW | ||
Configuration Half Bridge | ||
Package Type INT-A-PAK | ||
Mount Type Panel | ||
Channel Type N | ||
Pin Count 7 | ||
Maximum Gate Emitter Voltage VGEO ±20 V | ||
Maximum Collector Emitter Saturation Voltage VceSAT 1.09V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals UL E78996 | ||
Length 94.4mm | ||
Width 3mm | ||
Height 3mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- IT
The Vishay IGBT features Gen 4 FRED Pt technology anti parallel diodes with ultra soft reverse recovery characteristics. It is optimized for high current inverter stages (AC TIG welding machines).
UL approved
Very low conduction losses
Low EMI
