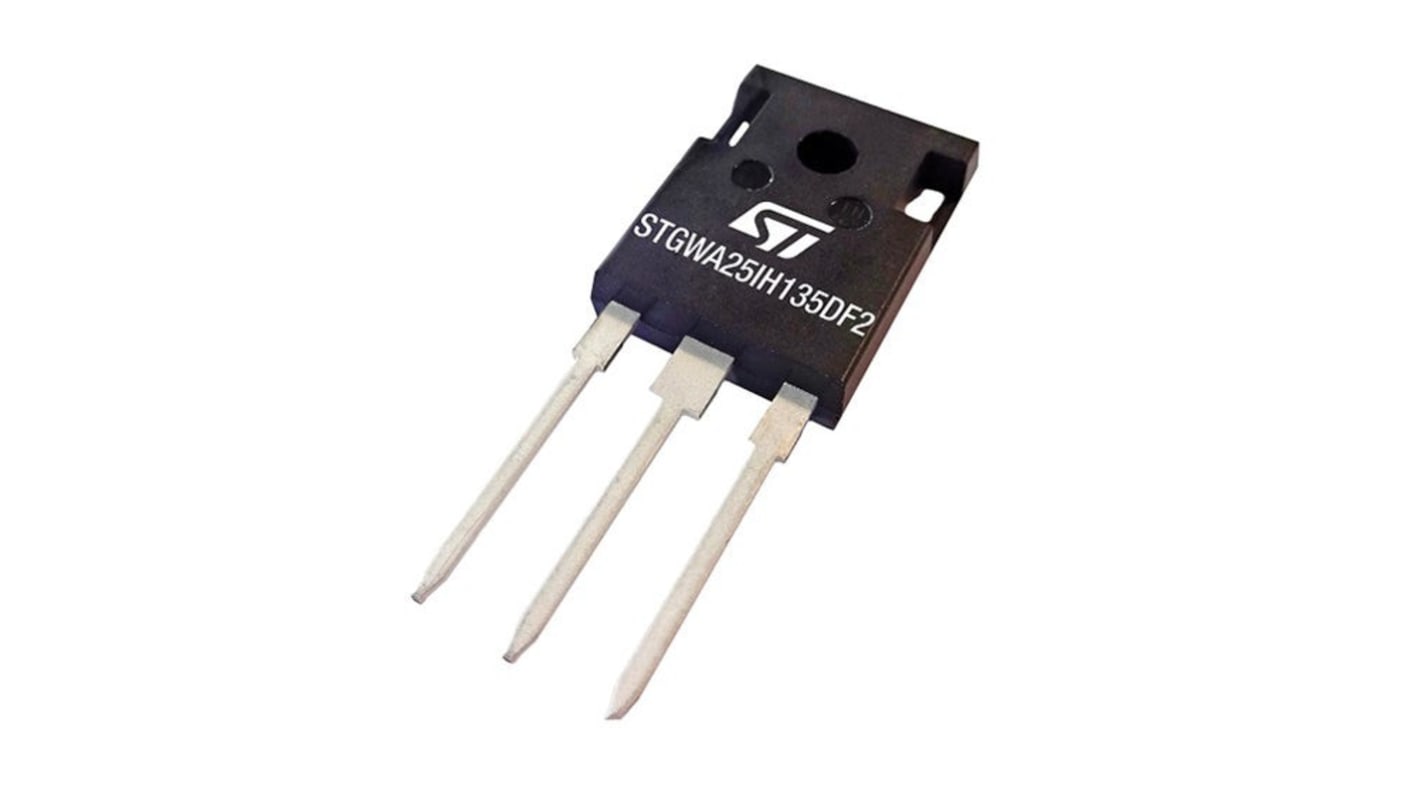

STMicroelectronics STGWA25IH135DF2, Bi-Directional-Channel Single Collector, Single Emitter, Single Gate IGBT, 25 A
- RS Stock No.:
- 275-1346
- Mfr. Part No.:
- STGWA25IH135DF2
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 unit)*
£3.33
(exc. VAT)
£4.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 142 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £3.33 |
| 5 - 9 | £3.26 |
| 10 + | £2.97 |
*price indicative
- RS Stock No.:
- 275-1346
- Mfr. Part No.:
- STGWA25IH135DF2
- Brand:
- STMicroelectronics
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Maximum Continuous Collector Current | 25 A | |
| Maximum Collector Emitter Voltage | 1350 V | |
| Maximum Gate Emitter Voltage | ±20V | |
| Maximum Power Dissipation | 340 W | |
| Number of Transistors | 1 | |
| Package Type | TO-247 | |
| Configuration | Single Collector, Single Emitter, Single Gate | |
| Mounting Type | Through Hole | |
| Channel Type | Bi-Directional | |
| Pin Count | 3 | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Maximum Continuous Collector Current 25 A | ||
Maximum Collector Emitter Voltage 1350 V | ||
Maximum Gate Emitter Voltage ±20V | ||
Maximum Power Dissipation 340 W | ||
Number of Transistors 1 | ||
Package Type TO-247 | ||
Configuration Single Collector, Single Emitter, Single Gate | ||
Mounting Type Through Hole | ||
Channel Type Bi-Directional | ||
Pin Count 3 | ||
