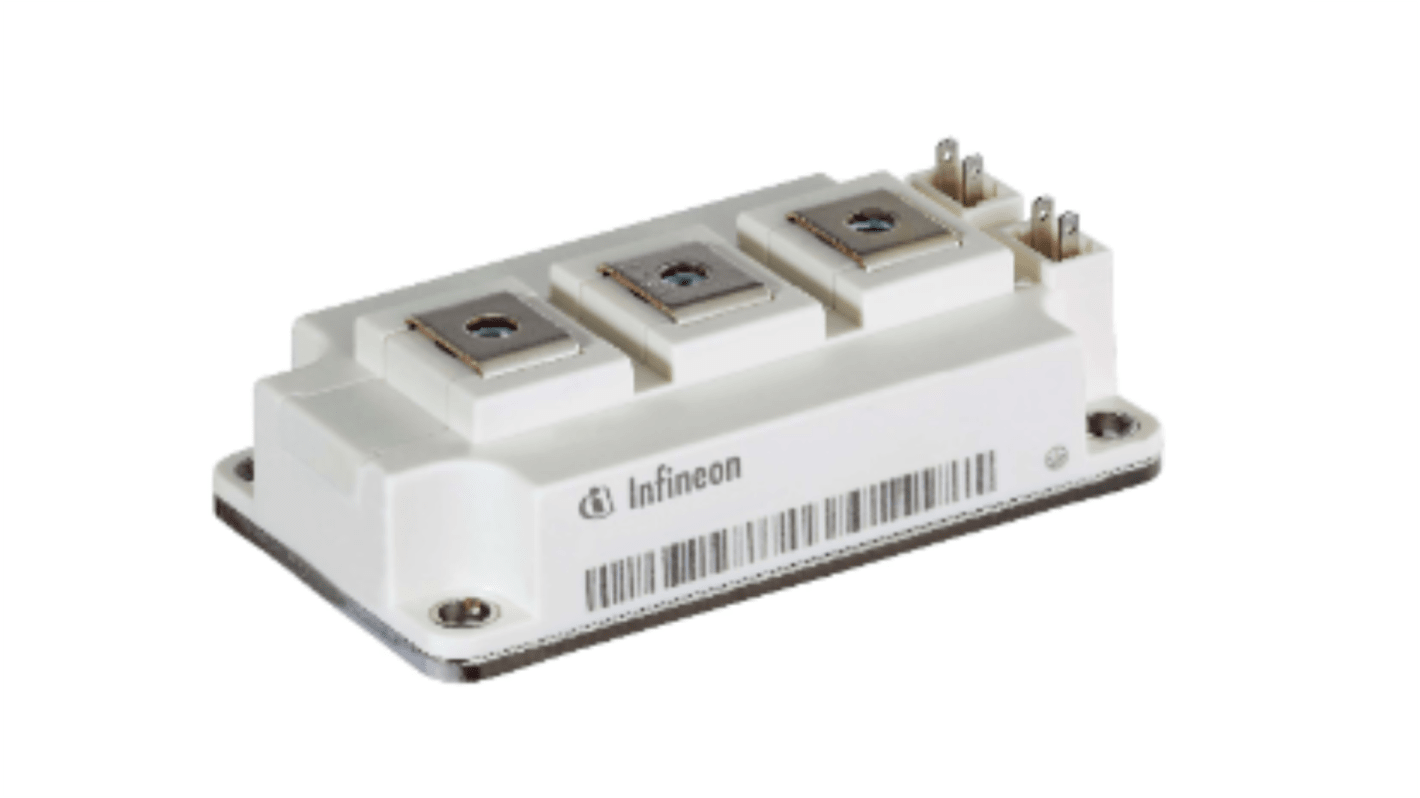

Infineon FF600R12KE7BPSA1, Type N-Channel Single Collector IGBT, 600 A 1200 V, 3-Pin AG-62MMHB, Through Hole

View all IGBTs

Subtotal (1 tray of 10 units)*

£1,776.73

(exc. VAT)

£2,132.08

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
10 +£177.673£1,776.73

*price indicative

RS Stock No.:
284-962
Mfr. Part No.:
FF600R12KE7BPSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Maximum Continuous Collector Current Ic

600A

Product Type

IGBT

Maximum Collector Emitter Voltage Vceo

1200V

Number of Transistors

2

Configuration

Single Collector

Package Type

AG-62MMHB

Mount Type

Through Hole

Channel Type

Type N

Pin Count

3

Maximum Collector Emitter Saturation Voltage VceSAT

1.75V

Maximum Gate Emitter Voltage VGEO

20 V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

175°C

Width

61.4 mm

Height

30.9mm

Length

62mm

Standards/Approvals

IEC 60747, IEC 60749, IEC 60068

Automotive Standard

No

The Infineon IGBT Module is a 62 mm 1200 V, 600 A dual low saturation and fast trench IGBT module with TRENCHSTOP IGBT7 and emitter controlled diode. Existing packages with higher current capability, allows to increase inverter output power with same frame size. Reduced system costs by simplification of the inverter systems.

Highest power density

Best in class VCEsat

High creepage and clearance distances

Isolated base plate

Standard housing

RoHS compliant

4 kV AC 1 min Insulation
