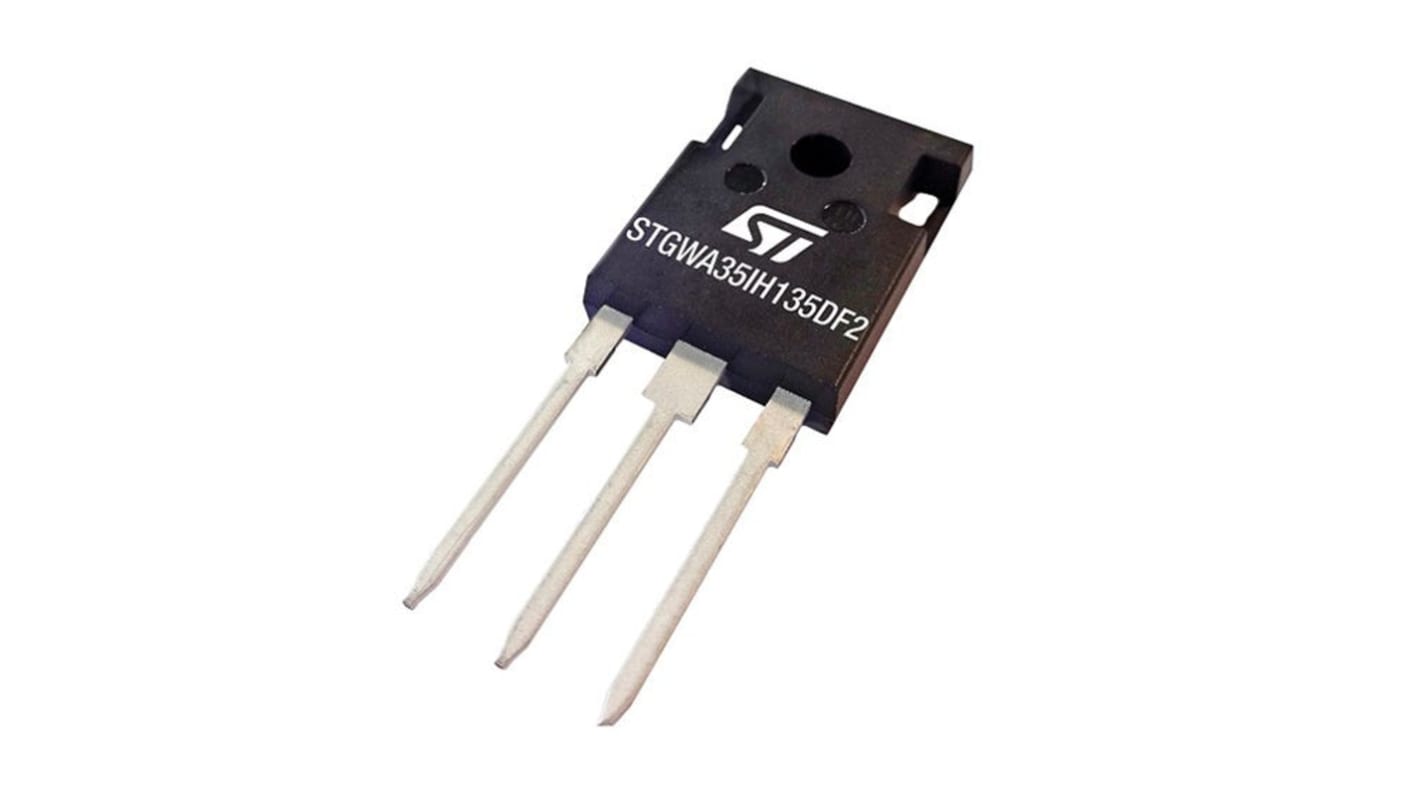

STMicroelectronics STGWA35IH135DF2, Bi-Directional-Channel Single Collector, Single Emitter, Single Gate IGBT, 35 A

View all IGBTs

Subtotal (1 tube of 30 units)*

£71.64

(exc. VAT)

£85.98

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 240 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
30 +£2.388£71.64

*price indicative

RS Stock No.:
275-1347
Mfr. Part No.:
STGWA35IH135DF2
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Maximum Continuous Collector Current

35 A

Maximum Collector Emitter Voltage

1350 V

Maximum Gate Emitter Voltage

±20V

Number of Transistors

1

Maximum Power Dissipation

416 W

Configuration

Single Collector, Single Emitter, Single Gate

Package Type

TO-247

Mounting Type

Through Hole

Channel Type

Bi-Directional

Pin Count

3

COO (Country of Origin):
CN
The STMicroelectronics IGBT 1350 V IH2 series has been developed using an advanced proprietary trench gate field stop structure, whose performance is optimized both in conduction and switching losses for soft commutation. A freewheeling diode with a low drop forward voltage is included. The result is a product specifically designed to maximize efficiency for any resonant and soft switching applications.

Designed for soft commutation
Minimized tail current
Tight parameter distribution
Low thermal resistance
