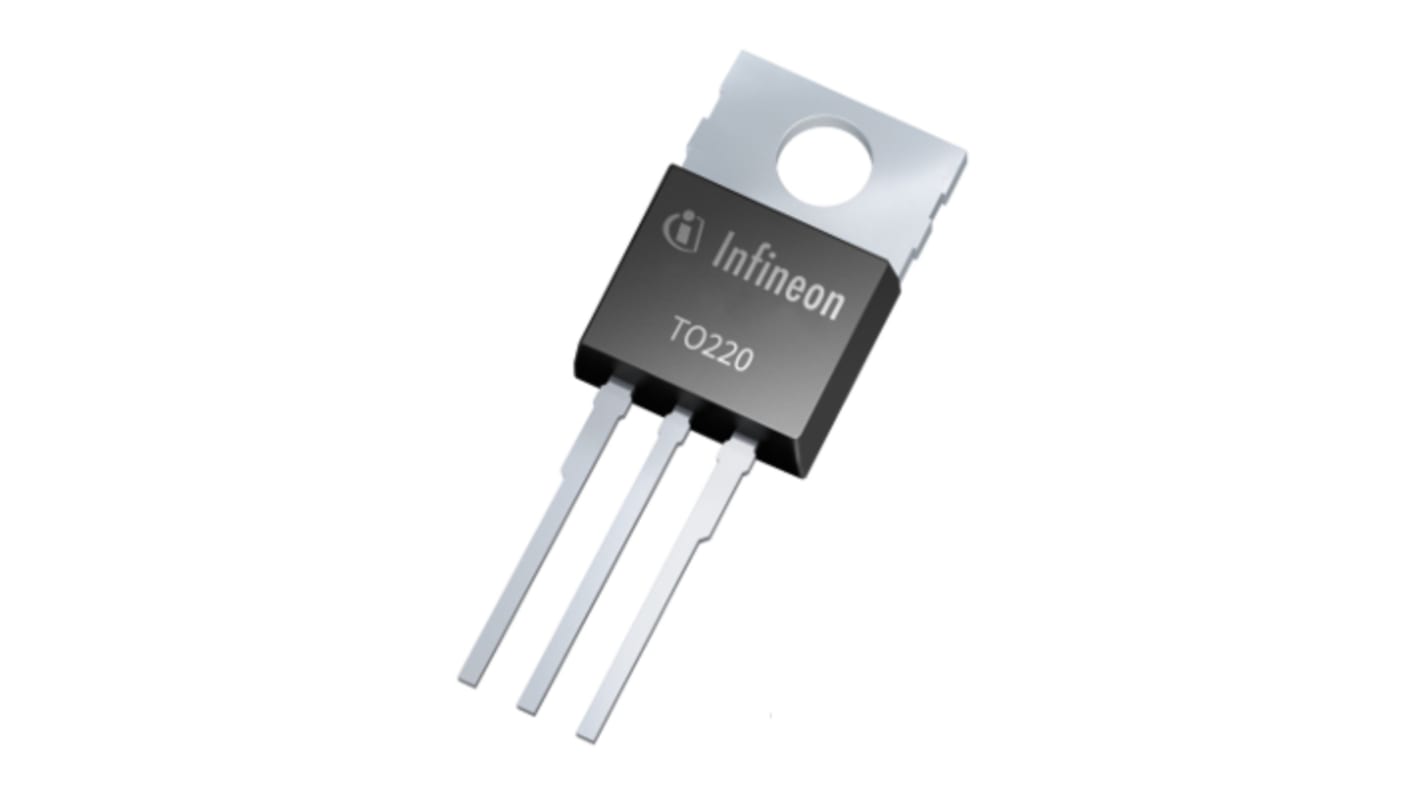

Infineon IKP30N65H5XKSA1 IGBT, 55 A 650 V, 3-Pin 188, Through Hole

View all IGBTs
Bulk discount available

Subtotal (1 tube of 50 units)*

£72.35

(exc. VAT)

£86.80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 350 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
50 - 50£1.447£72.35
100 +£1.326£66.30

*price indicative

RS Stock No.:
273-7454
Mfr. Part No.:
IKP30N65H5XKSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

IGBT

Maximum Continuous Collector Current Ic

55A

Maximum Collector Emitter Voltage Vceo

650V

Maximum Power Dissipation Pd

188W

Package Type

188

Mount Type

Through Hole

Pin Count

3

Maximum Collector Emitter Saturation Voltage VceSAT

2.1V

Minimum Operating Temperature

-40°C

Maximum Gate Emitter Voltage VGEO

20 V

Maximum Operating Temperature

175°C

Length

15.85mm

Series

High Speed Fifth Generation

Height

4.57mm

Standards/Approvals

RoHS, JEDEC

Width

10.38 mm

Automotive Standard

No

The Infineon IGBT is a high speed 5 IGBT in TRENCHSTOP 5 technology with RAPID 1 fast and soft antiparallel diode. This IGBT is qualified according to JEDEC for target applications. This IGBT is used for solar converters, uninterruptible power supplies, welding converters and mid to high range switching frequency converters application.

Halogen free

RoHS compliant

Low gate charge

Pb free lead plating

650V breakdown voltage
