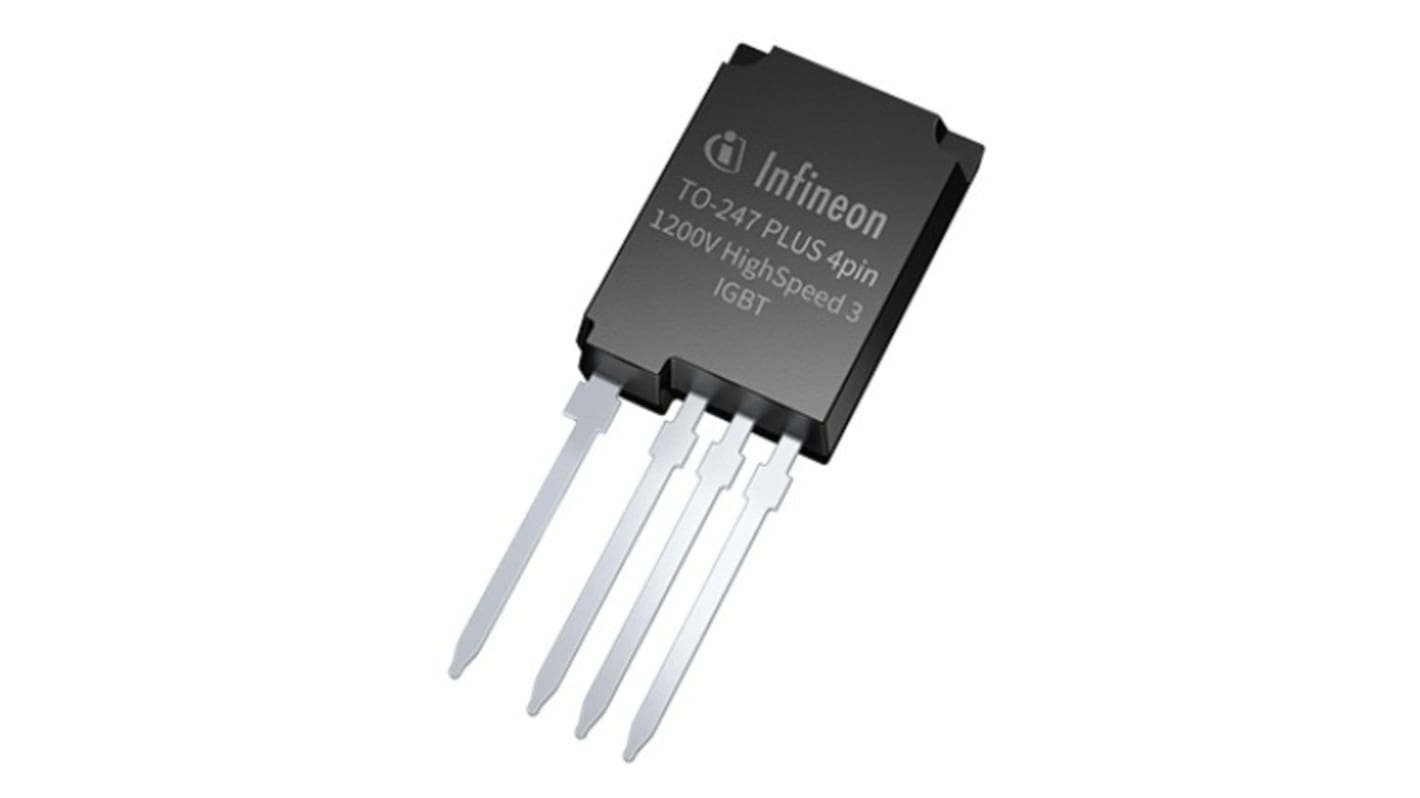

Infineon IKY50N120CH3XKSA1 Single IGBT, 100 A 1200 V PG-TO247-4-2
- RS Stock No.:
- 260-5106
- Mfr. Part No.:
- IKY50N120CH3XKSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 unit)*
£7.06
(exc. VAT)
£8.47
(inc. VAT)
Add 8 units to get free delivery
In Stock
- 110 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £7.06 |
| 10 - 24 | £6.70 |
| 25 - 49 | £6.42 |
| 50 - 99 | £6.14 |
| 100 + | £5.72 |
*price indicative
- RS Stock No.:
- 260-5106
- Mfr. Part No.:
- IKY50N120CH3XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Collector Current | 100 A | |
| Maximum Collector Emitter Voltage | 1200 V | |
| Maximum Gate Emitter Voltage | ±20V | |
| Maximum Power Dissipation | 652 W | |
| Package Type | PG-TO247-4-2 | |
| Configuration | Single | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current 100 A | ||
Maximum Collector Emitter Voltage 1200 V | ||
Maximum Gate Emitter Voltage ±20V | ||
Maximum Power Dissipation 652 W | ||
Package Type PG-TO247-4-2 | ||
Configuration Single | ||
The Infineon hard switching high speed IGBT3 in a TO247 PLUS package copacked with a soft and fast recovery full current anti-parallel emitter controlled diode.
Very soft, fast recovery full current anti parallel diode
Maximum junction temperature is 175°C
Maximum junction temperature is 175°C
