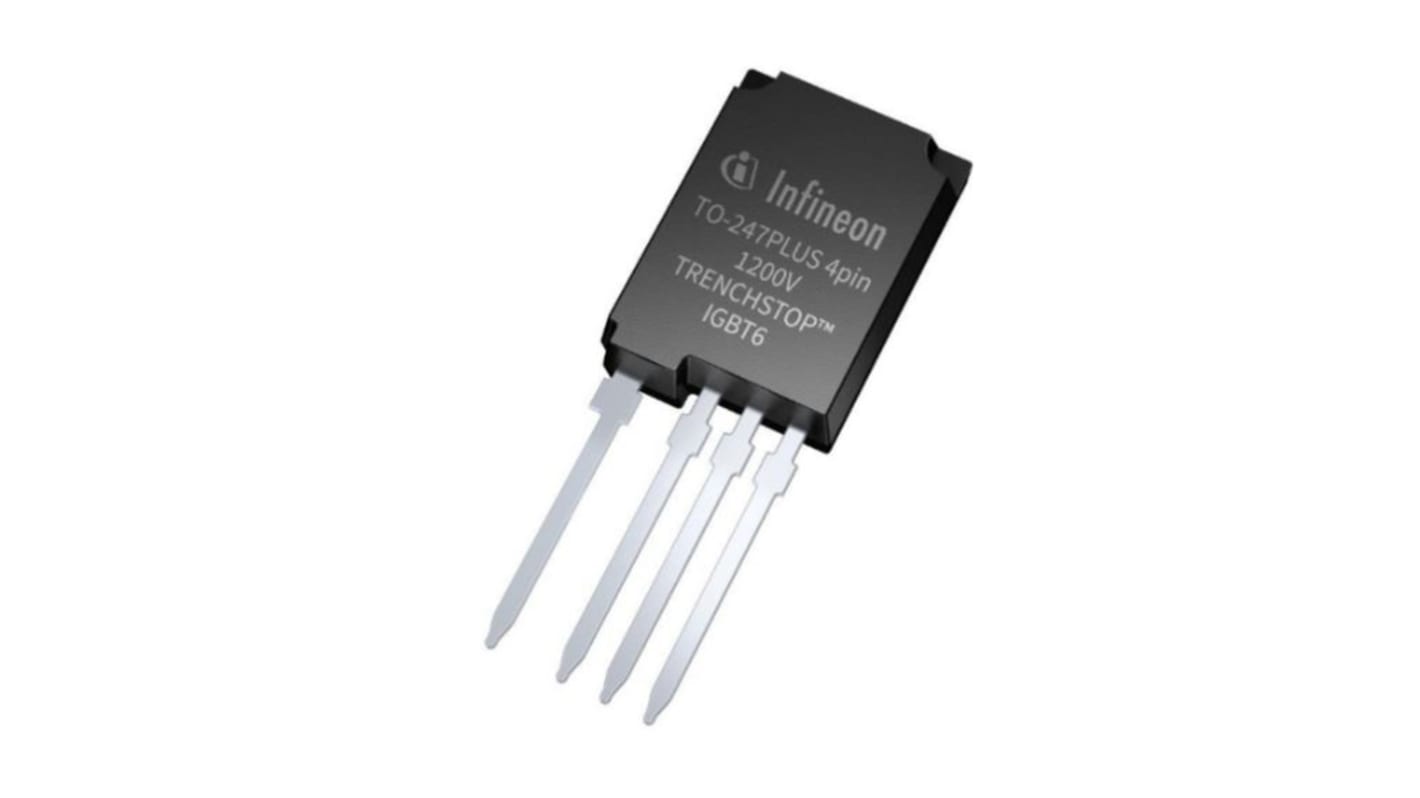

Infineon IKY75N120CS6XKSA1 IGBT, 75 A 1200 V, 4-Pin TO-247 PLUS
- RS Stock No.:
- 218-4402
- Mfr. Part No.:
- IKY75N120CS6XKSA1
- Brand:
- Infineon
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 218-4402
- Mfr. Part No.:
- IKY75N120CS6XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
Maximum Continuous Collector Current | 75 A | |
Maximum Collector Emitter Voltage | 1200 V | |
Maximum Gate Emitter Voltage | 20V | |
Number of Transistors | 1 | |
Maximum Power Dissipation | 880 W | |
Package Type | TO-247 PLUS | |
Channel Type | N | |
Pin Count | 4 | |
Select all | ||
---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current 75 A | ||
Maximum Collector Emitter Voltage 1200 V | ||
Maximum Gate Emitter Voltage 20V | ||
Number of Transistors 1 | ||
Maximum Power Dissipation 880 W | ||
Package Type TO-247 PLUS | ||
Channel Type N | ||
Pin Count 4 | ||
The Infineon high speed hard-switching TRENCHSTOP IGBT6 co-packed with a soft and fast recovery full current anti-parallel diode in a TO-247 package is designed to reach the best compromise between switching and conduction losses. It is used in industrial heating and welding and UPS system.
Lowest losses on IGBT, high system efficiency for higher power output
Fast and easy replacement of predecessor H3 technology
High device reliability and lifetime expectancy
Fast and easy replacement of predecessor H3 technology
High device reliability and lifetime expectancy
