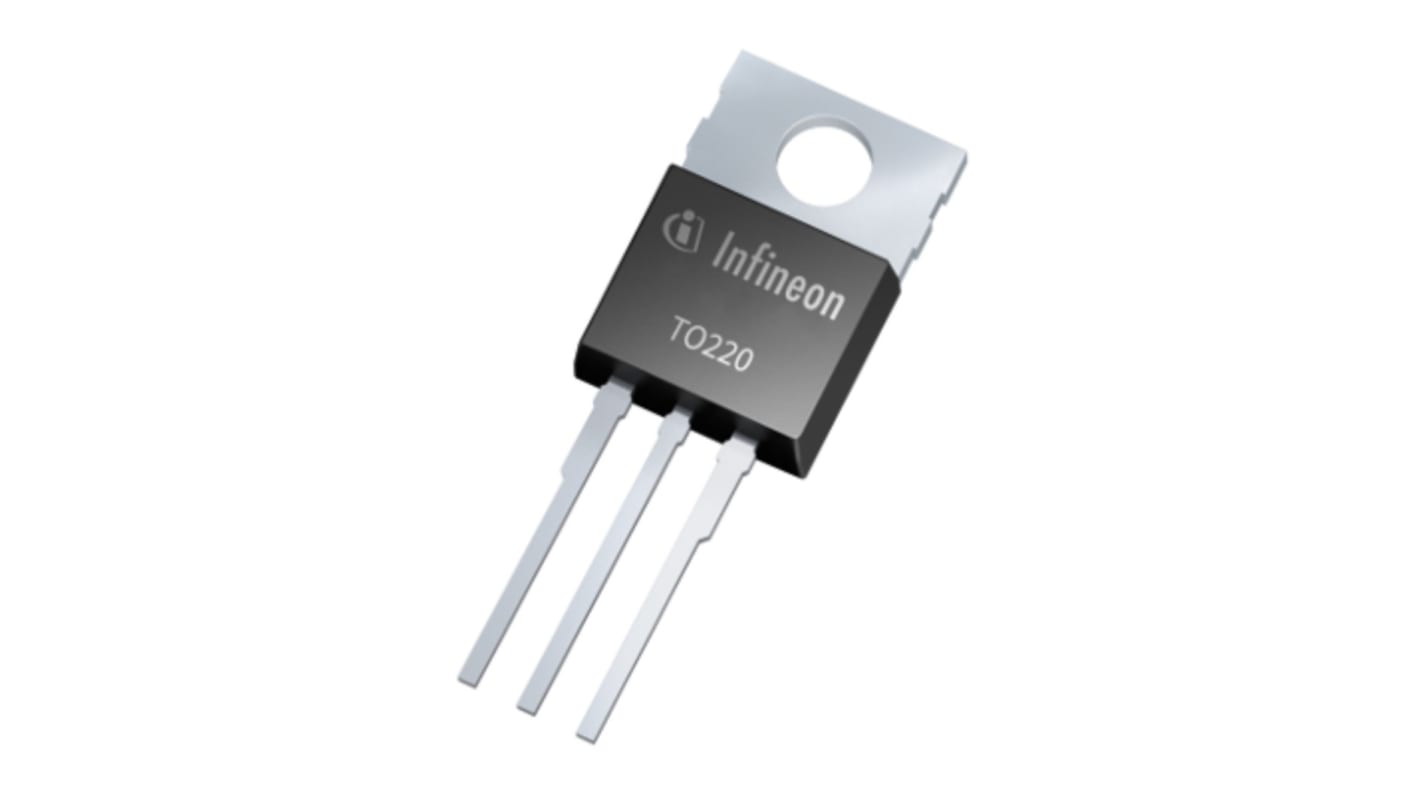

Infineon IGBT Module, 30 A 650 V TO-220
- RS Stock No.:
- 259-1530
- Mfr. Part No.:
- IKP15N65H5XKSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 tube of 50 units)*
£61.00
(exc. VAT)
£73.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 50 | £1.22 | £61.00 |
| 100 - 200 | £0.976 | £48.80 |
| 250 - 450 | £0.915 | £45.75 |
| 500 - 950 | £0.854 | £42.70 |
| 1000 + | £0.793 | £39.65 |
*price indicative
- RS Stock No.:
- 259-1530
- Mfr. Part No.:
- IKP15N65H5XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Collector Current Ic | 30A | |
| Product Type | IGBT Module | |
| Maximum Collector Emitter Voltage Vceo | 650V | |
| Maximum Power Dissipation Pd | 105W | |
| Package Type | TO-220 | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.1V | |
| Maximum Gate Emitter Voltage VGEO | 20 V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current Ic 30A | ||
Product Type IGBT Module | ||
Maximum Collector Emitter Voltage Vceo 650V | ||
Maximum Power Dissipation Pd 105W | ||
Package Type TO-220 | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2.1V | ||
Maximum Gate Emitter Voltage VGEO 20 V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The Infineon high speed switching series fifth generation, It is high speed H5 technology offering. It is plug and play replacement of previous generation IGBTs and qualified according to JEDEC for target applications.
Solar converters
Uninterruptible power supplies
Welding converters
Mid to high range switching frequency converters
