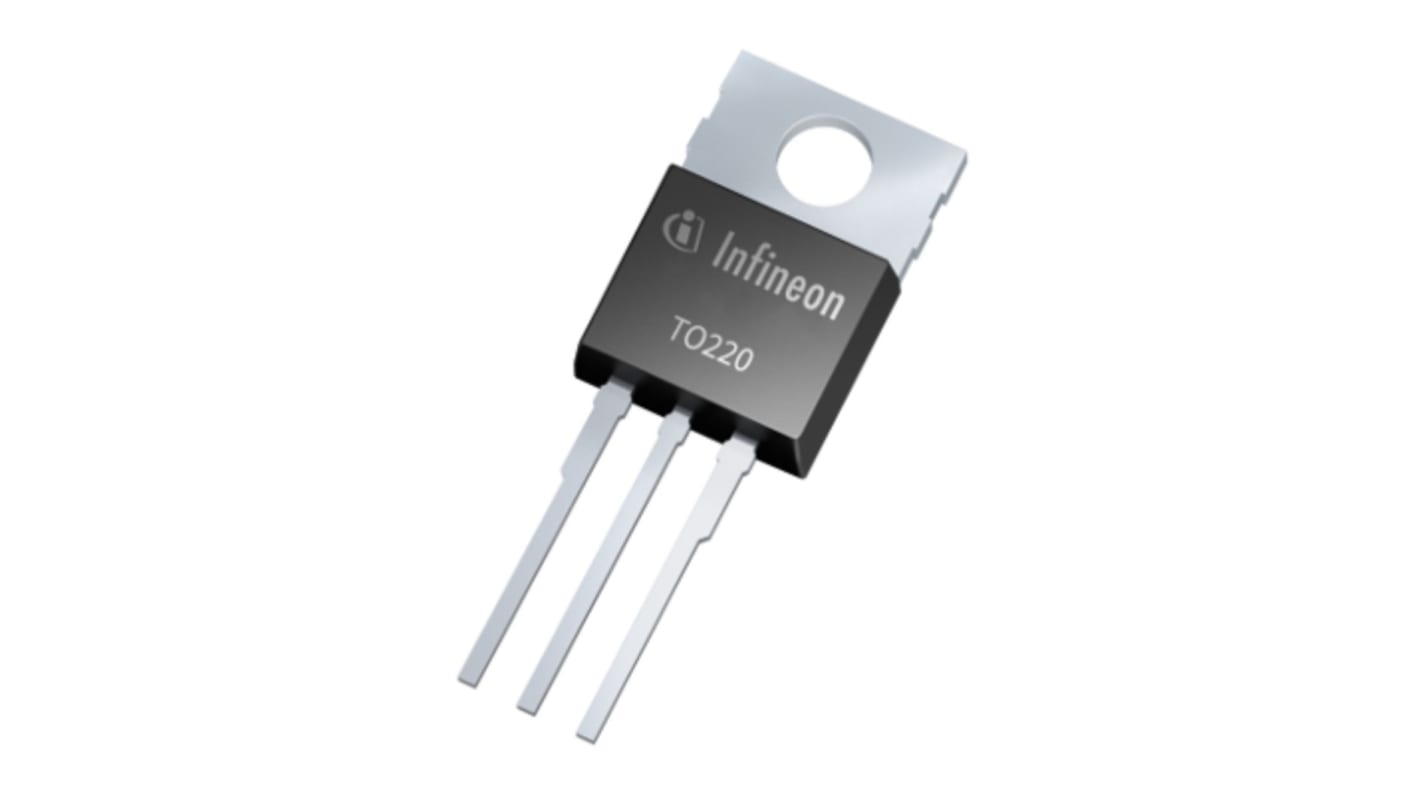

Infineon IGBT, 30 A 650 V, 3-Pin TO-220, Through Hole

View all IGBTs
Bulk discount available

Subtotal (1 tube of 50 units)*

£51.85

(exc. VAT)

£62.20

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,400 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
50 - 50£1.037£51.85
100 - 200£0.934£46.70
250 +£0.84£42.00

*price indicative

RS Stock No.:
258-0986
Mfr. Part No.:
IGP30N65F5XKSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

IGBT

Maximum Continuous Collector Current Ic

30A

Maximum Collector Emitter Voltage Vceo

650V

Maximum Power Dissipation Pd

188W

Package Type

TO-220

Mount Type

Through Hole

Pin Count

3

Maximum Collector Emitter Saturation Voltage VceSAT

2.1V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

175°C

Length

29.95mm

Height

4.57mm

Standards/Approvals

JEDEC

Series

High Speed Fifth Generation

Width

10.36 mm

Automotive Standard

No

The Infineon TRENCHSTOP 5 IGBT technology redefines best-in-class IGBT by providing unmatched performance in terms of efficiency for hard switching applications. The new family is a major breakthrough in IGBT innovation to match the market’s high efficiency demands of tomorrow.

650V breakthrough voltage

Compared to Infineon’s Best-in-class High-speed 3 family

50V increase in the bus voltage possible without compromising reliability

Higher power density design
