Name: Infineon IGB15N65S5ATMA1 IGBT, 15 A 650 V TO-263
Brand: Infineon
SKU: 258-0983
Price: 1.94 GBP
Availability: Discontinued

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	IGBT
	Maximum Continuous Collector Current Ic	15A
	Maximum Collector Emitter Voltage Vceo	650V
	Maximum Power Dissipation Pd	105W
	Package Type	TO-263
	Maximum Gate Emitter Voltage VGEO	±20 ±30 V
	Maximum Collector Emitter Saturation Voltage VceSAT	1.35V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	175°C
	Series	High Speed Fifth Generation
	Standards/Approvals	RoHS Compliant
	Automotive Standard	No

	Select all
	Brand Infineon
	Product Type IGBT
	Maximum Continuous Collector Current Ic 15A
	Maximum Collector Emitter Voltage Vceo 650V
	Maximum Power Dissipation Pd 105W
	Package Type TO-263
	Maximum Gate Emitter Voltage VGEO ±20 ±30 V
	Maximum Collector Emitter Saturation Voltage VceSAT 1.35V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 175°C
	Series High Speed Fifth Generation
	Standards/Approvals RoHS Compliant
	Automotive Standard No

Datasheet - IGB15N65S5ATMA1

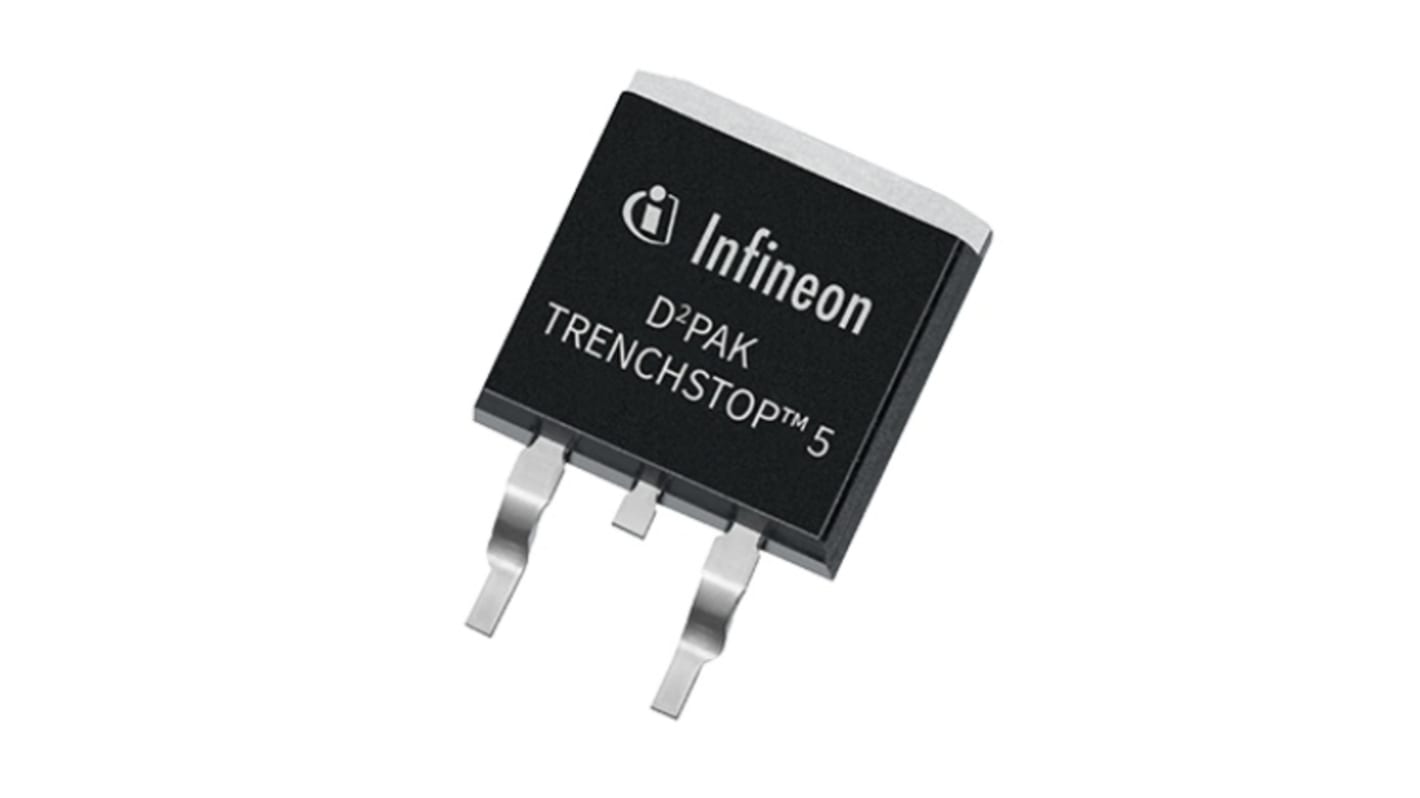

The Infineon 650 V, 15 A high speed switching TRENCHSTOP 5 in D2Pak package single IGBT, addressing applications switching between 10 kHz and 40 kHz to deliver high efficiency, faster time-to-market cycles, circuit design complexity reduction and PCB bill of material cost optimization.

No need for gate clamping components

Gate drivers with Miller clamping not required

Reduction in the EMI filtering needed

Excellent for paralleling

Infineon IGB15N65S5ATMA1 IGBT, 15 A 650 V TO-263
