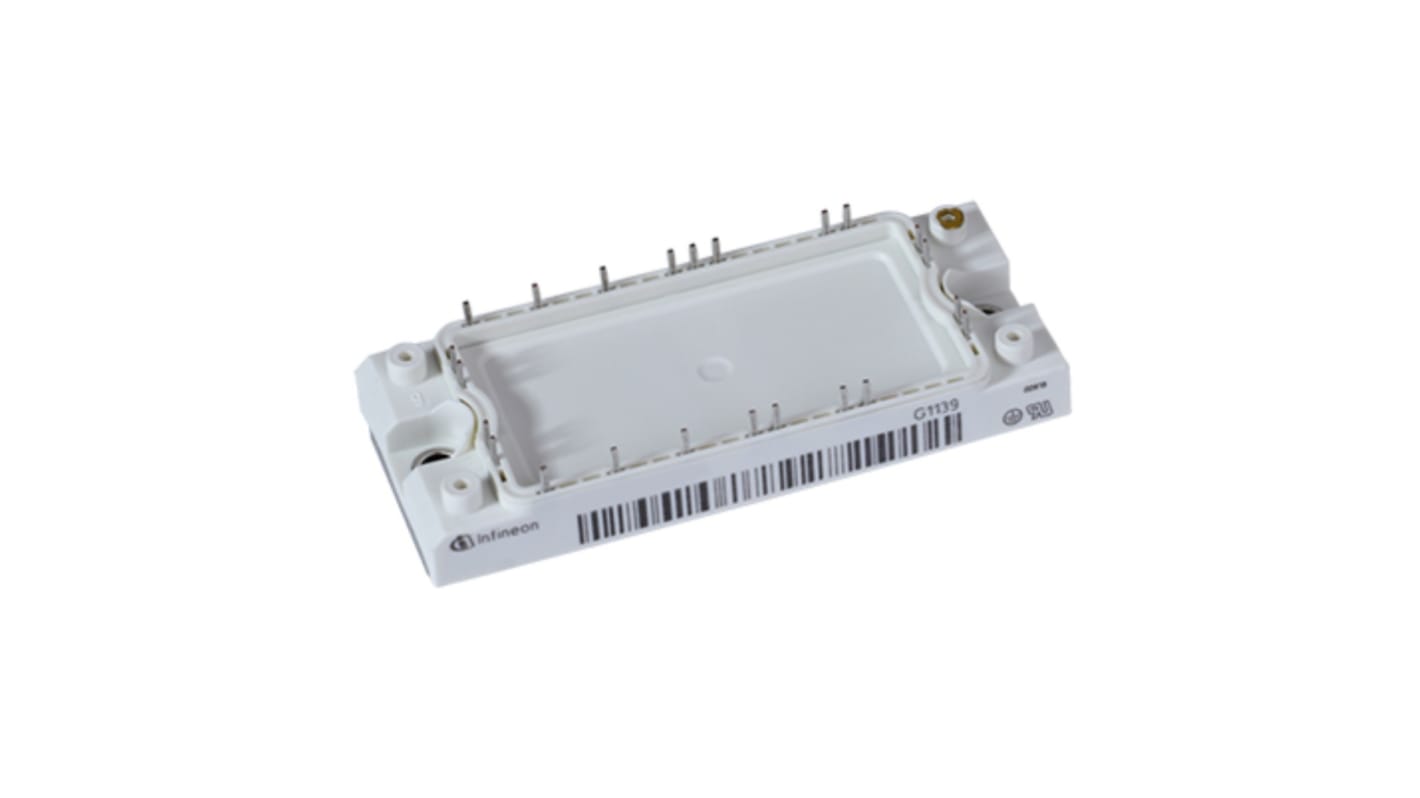

Infineon Full Bridge IGBT, 105 A 1200 V AG-ECONO2B-311, Chassis
- RS Stock No.:
- 258-0900
- Mfr. Part No.:
- FS75R12KT3BPSA1
- Brand:
- Infineon
Subtotal (1 tray of 15 units)*
£1,362.57
(exc. VAT)
£1,635.09
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 15 + | £90.838 | £1,362.57 |
*price indicative
- RS Stock No.:
- 258-0900
- Mfr. Part No.:
- FS75R12KT3BPSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | IGBT | |
| Maximum Continuous Collector Current Ic | 105A | |
| Maximum Collector Emitter Voltage Vceo | 1200V | |
| Maximum Power Dissipation Pd | 355W | |
| Configuration | Full Bridge | |
| Package Type | AG-ECONO2B-311 | |
| Mount Type | Chassis | |
| Minimum Operating Temperature | -40°C | |
| Maximum Gate Emitter Voltage VGEO | 20 V | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.15V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type IGBT | ||
Maximum Continuous Collector Current Ic 105A | ||
Maximum Collector Emitter Voltage Vceo 1200V | ||
Maximum Power Dissipation Pd 355W | ||
Configuration Full Bridge | ||
Package Type AG-ECONO2B-311 | ||
Mount Type Chassis | ||
Minimum Operating Temperature -40°C | ||
Maximum Gate Emitter Voltage VGEO 20 V | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2.15V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The Infineon EconoPACK 2 1200 V, 75 A six-pack IGBT module with fast TRENCHSTOP IGBT3, emitter controlled HE diode and NTC.
High power density
Low stray inductance module design
