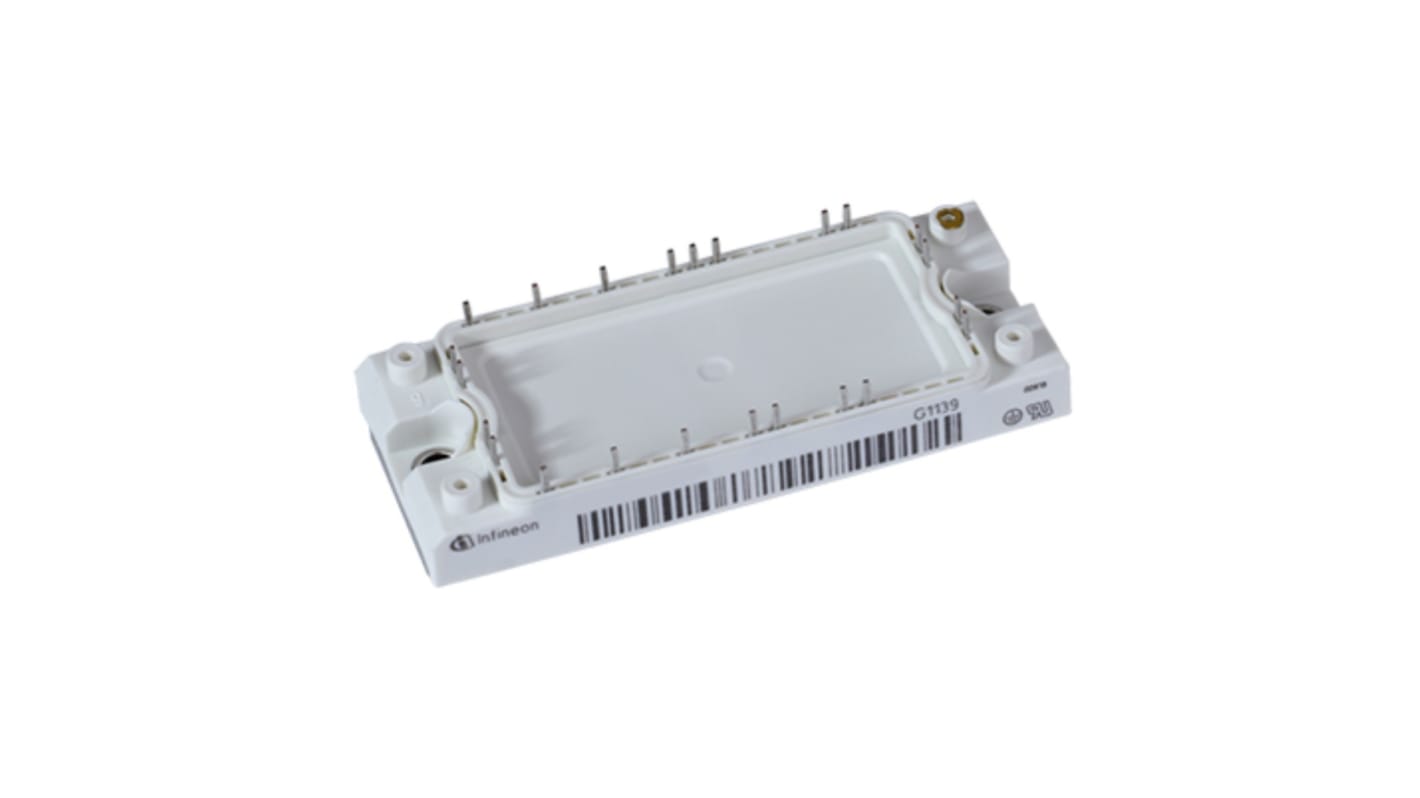

Infineon Full Bridge IGBT, 50 A 1200 V AG-ECONO2B-311, Chassis
- RS Stock No.:
- 258-0893
- Mfr. Part No.:
- FS50R12KE3BPSA1
- Brand:
- Infineon
Subtotal (1 tray of 15 units)*
£912.075
(exc. VAT)
£1,094.49
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 15 unit(s) shipping from 13 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 15 + | £60.805 | £912.08 |
*price indicative
- RS Stock No.:
- 258-0893
- Mfr. Part No.:
- FS50R12KE3BPSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | IGBT | |
| Maximum Continuous Collector Current Ic | 50A | |
| Maximum Collector Emitter Voltage Vceo | 1200V | |
| Maximum Power Dissipation Pd | 270W | |
| Package Type | AG-ECONO2B-311 | |
| Configuration | Full Bridge | |
| Mount Type | Chassis | |
| Maximum Gate Emitter Voltage VGEO | 20 V | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type IGBT | ||
Maximum Continuous Collector Current Ic 50A | ||
Maximum Collector Emitter Voltage Vceo 1200V | ||
Maximum Power Dissipation Pd 270W | ||
Package Type AG-ECONO2B-311 | ||
Configuration Full Bridge | ||
Mount Type Chassis | ||
Maximum Gate Emitter Voltage VGEO 20 V | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The Infineon EconoPACK 2 1200 V, 50 A six-pack IGBT module with IGBT3 and NTC. Optimized customer’s development cycle time and cost
High power density
Established econo module concept
Integrated temperature sensor available
Low stray inductance module design
