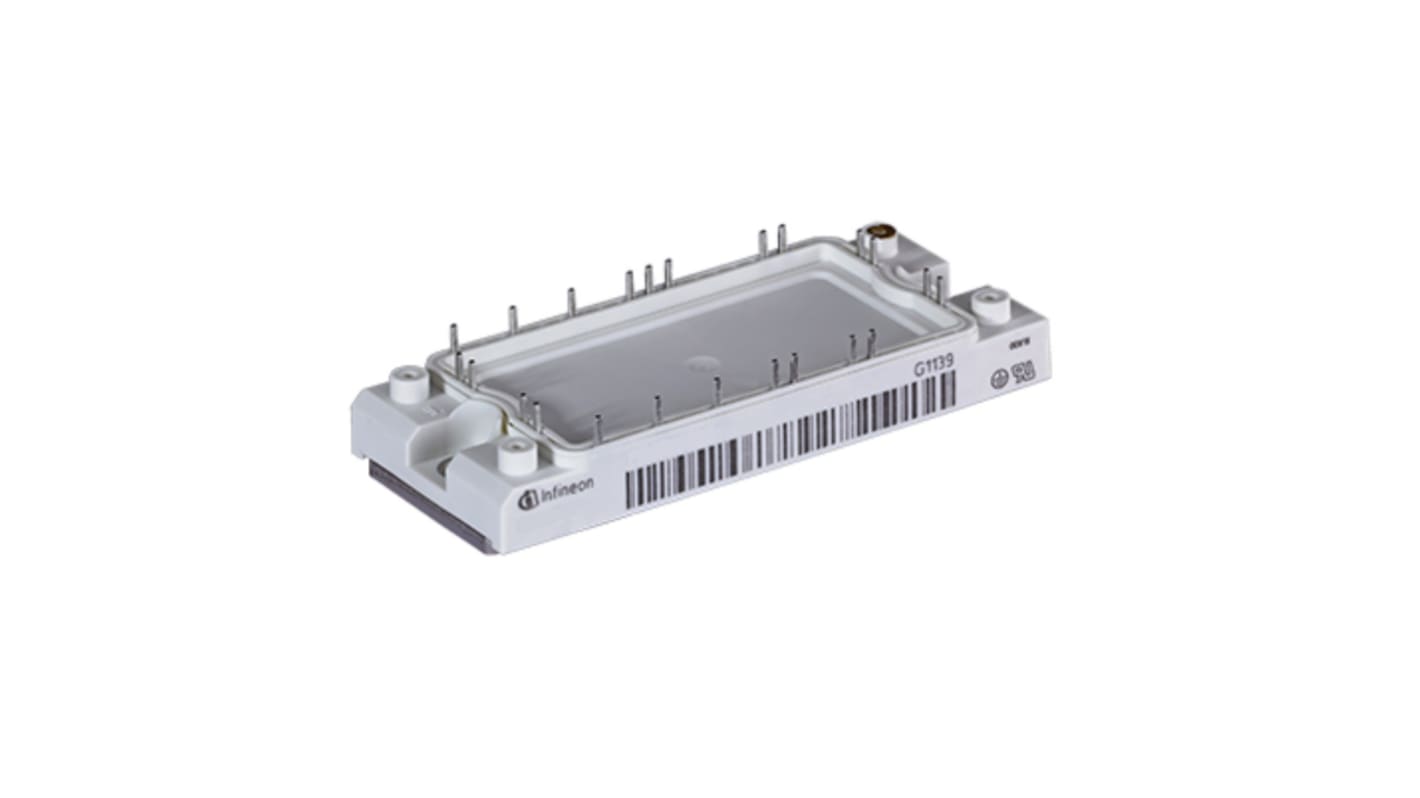

Infineon DDB6U104N16RRBPSA1 Single Chopper IGBT Module, 50 A 1200 V AG-ECONO2B-211, Chassis

View all IGBTs
Bulk discount available

Subtotal (1 unit)*

£50.87

(exc. VAT)

£61.04

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
In Stock
  • 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 1£50.87
2 - 4£48.32
5 - 9£46.29
10 - 19£44.26
20 +£42.22

*price indicative

Packaging Options:
RS Stock No.:
258-0790
Mfr. Part No.:
DDB6U104N16RRBPSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Maximum Continuous Collector Current Ic

50A

Product Type

IGBT Module

Maximum Collector Emitter Voltage Vceo

1200V

Maximum Power Dissipation Pd

350W

Package Type

AG-ECONO2B-211

Configuration

Single Chopper

Mount Type

Chassis

Maximum Gate Emitter Voltage VGEO

20 V

Maximum Operating Temperature

150°C

Length

107.5mm

Height

20.5mm

Standards/Approvals

RoHS

Width

45 mm

Automotive Standard

No

The Infineon eupec EconoBRIDGE - 1600V diode bridge modules with brake chopper and NTC for a more compact converter design.

High mechanical robustness

Isolated copper base plate
