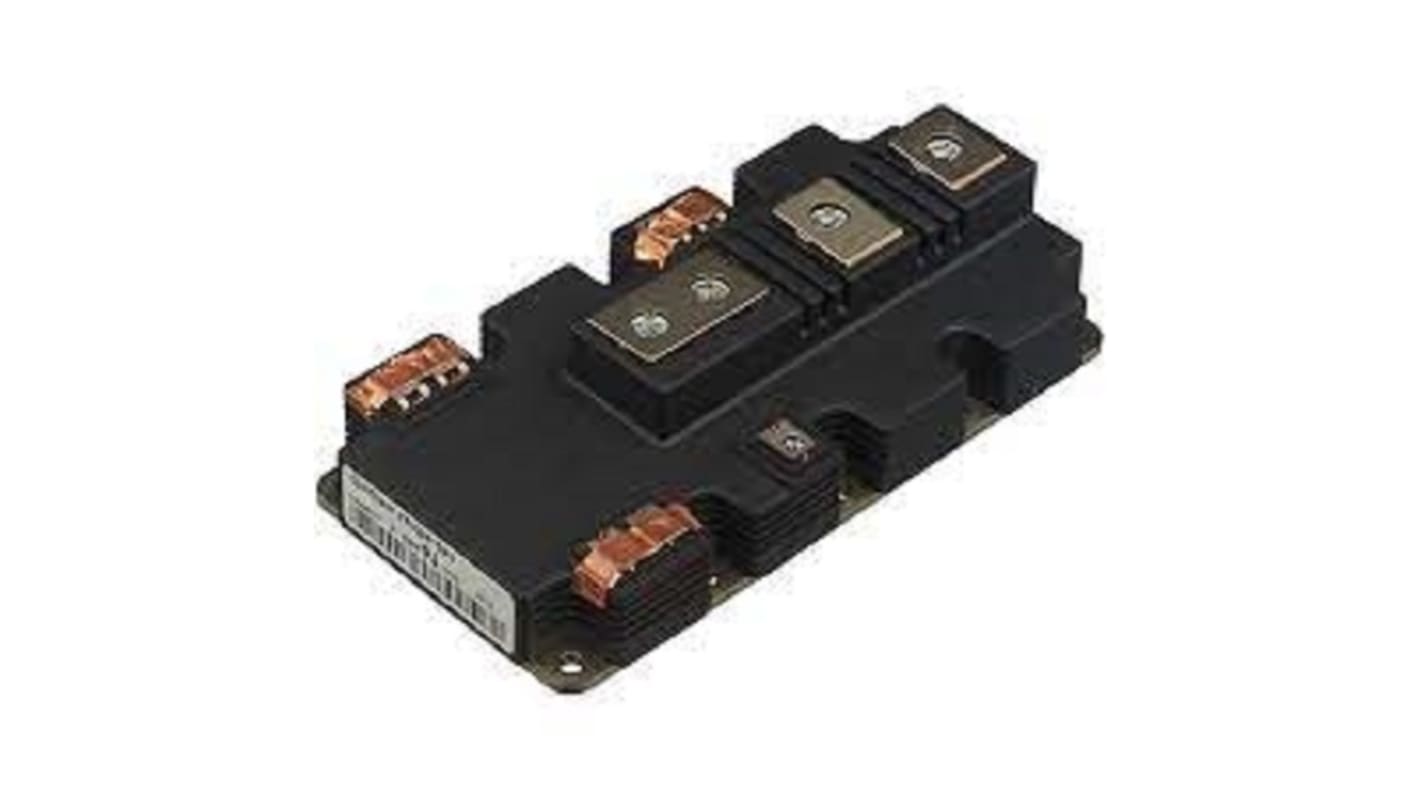

Infineon FF900R12IP4BOSA2 IGBT Module, 900 A 1200 V PrimePACKTM2
- RS Stock No.:
- 244-5831
- Mfr. Part No.:
- FF900R12IP4BOSA2
- Brand:
- Infineon
Bulk discount available
Subtotal (1 unit)*
£584.54
(exc. VAT)
£701.45
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £584.54 |
| 2 + | £555.32 |
*price indicative
- RS Stock No.:
- 244-5831
- Mfr. Part No.:
- FF900R12IP4BOSA2
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | IGBT Module | |
| Maximum Continuous Collector Current Ic | 900A | |
| Maximum Collector Emitter Voltage Vceo | 1200V | |
| Maximum Power Dissipation Pd | 5.1kW | |
| Number of Transistors | 2 | |
| Package Type | PrimePACKTM2 | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.1V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Gate Emitter Voltage VGEO | 20 V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Series | FF900R12IP4 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type IGBT Module | ||
Maximum Continuous Collector Current Ic 900A | ||
Maximum Collector Emitter Voltage Vceo 1200V | ||
Maximum Power Dissipation Pd 5.1kW | ||
Number of Transistors 2 | ||
Package Type PrimePACKTM2 | ||
Maximum Collector Emitter Saturation Voltage VceSAT 2.1V | ||
Minimum Operating Temperature -40°C | ||
Maximum Gate Emitter Voltage VGEO 20 V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Series FF900R12IP4 | ||
Automotive Standard No | ||
The infineon IGBT module is suitable for auxiliary inverters, high power converters, motor drives, traction drives, ups systems, wind turbines etc.
Electrical features
Extended operation temperature Tvj op
High DC stability
High short circuit capability, self limiting short circuit current
Unbeatable robustness
VCEsat with positive temperature coefficient
