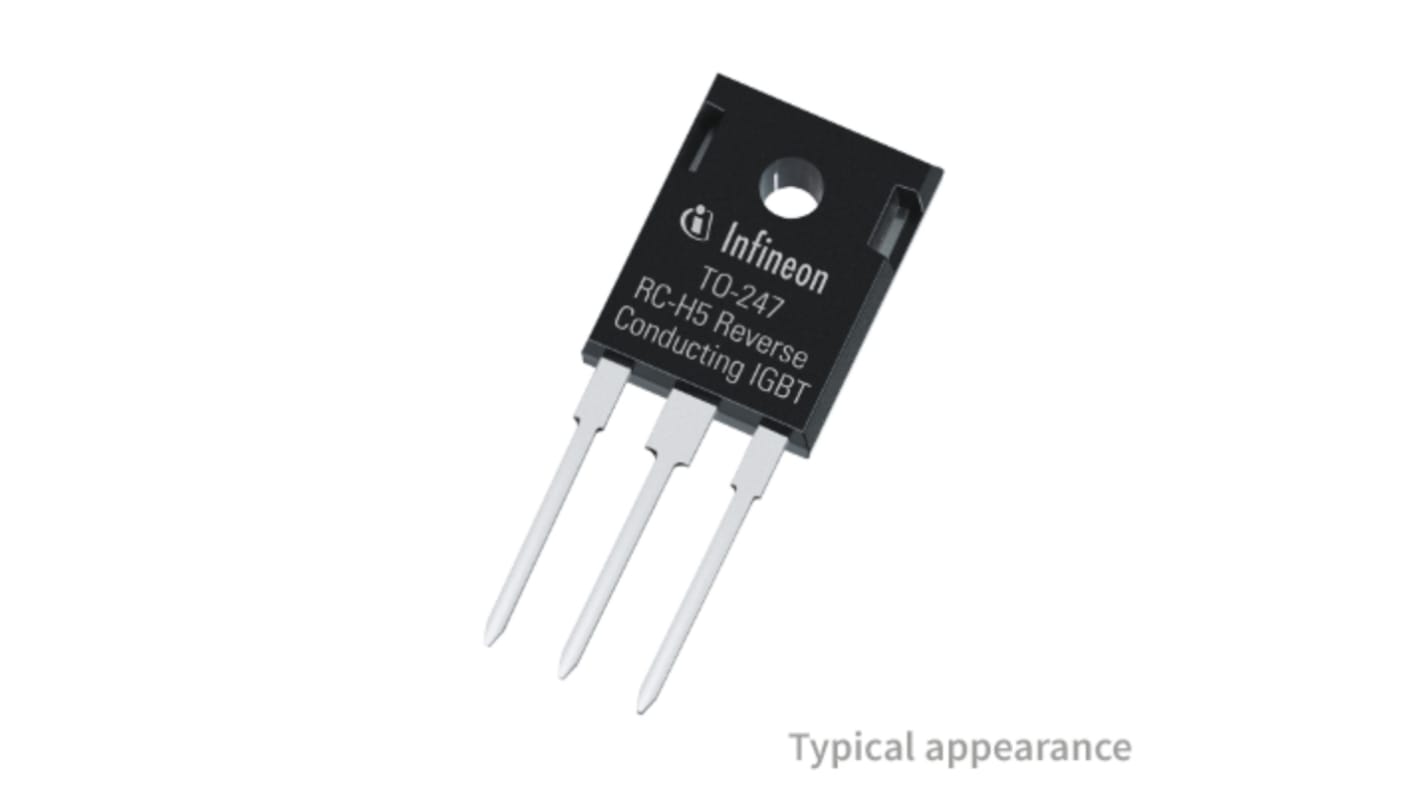

Infineon IHW20N120R5XKSA1 IGBT Single Transistor IC, 20 A 1200 V, 3-Pin PG-TO-247

View all IGBTs
Bulk discount available

Subtotal (1 pack of 2 units)*

£4.29

(exc. VAT)

£5.148

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 106 unit(s) shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
2 - 8£2.145£4.29
10 - 38£2.065£4.13
40 - 78£1.99£3.98
80 - 118£1.905£3.81
120 +£1.815£3.63

*price indicative

Packaging Options:
RS Stock No.:
244-2914
Mfr. Part No.:
IHW20N120R5XKSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

IGBT Single Transistor IC

Maximum Continuous Collector Current Ic

20A

Maximum Collector Emitter Voltage Vceo

1200V

Maximum Power Dissipation Pd

288W

Package Type

PG-TO-247

Pin Count

3

Minimum Operating Temperature

-40°C

Maximum Collector Emitter Saturation Voltage VceSAT

1.55V

Maximum Gate Emitter Voltage VGEO

±20 %

Maximum Operating Temperature

175°C

Series

Resonant Switching

Height

5.21mm

Length

42mm

Width

16.13 mm

Standards/Approvals

IEC61249-2-21, RoHS

Automotive Standard

No

The Infineon IHW20N120R5XKSA1 is powerful mono lithic body diod ewitlow forward voltage designed for softcommutation. It has TRENCHSTOPTM technology also very tight parameter distribution. It is high ruggedness and temperature stable behavior.

Easy parallel switching capability due to positive temperature coefficient in VCEsat

LowEMI

Pb-free lead plating

RoHS compliant

Halogen free(according to IEC61249-2-21)

Complete product spectrum and Pspice Models
