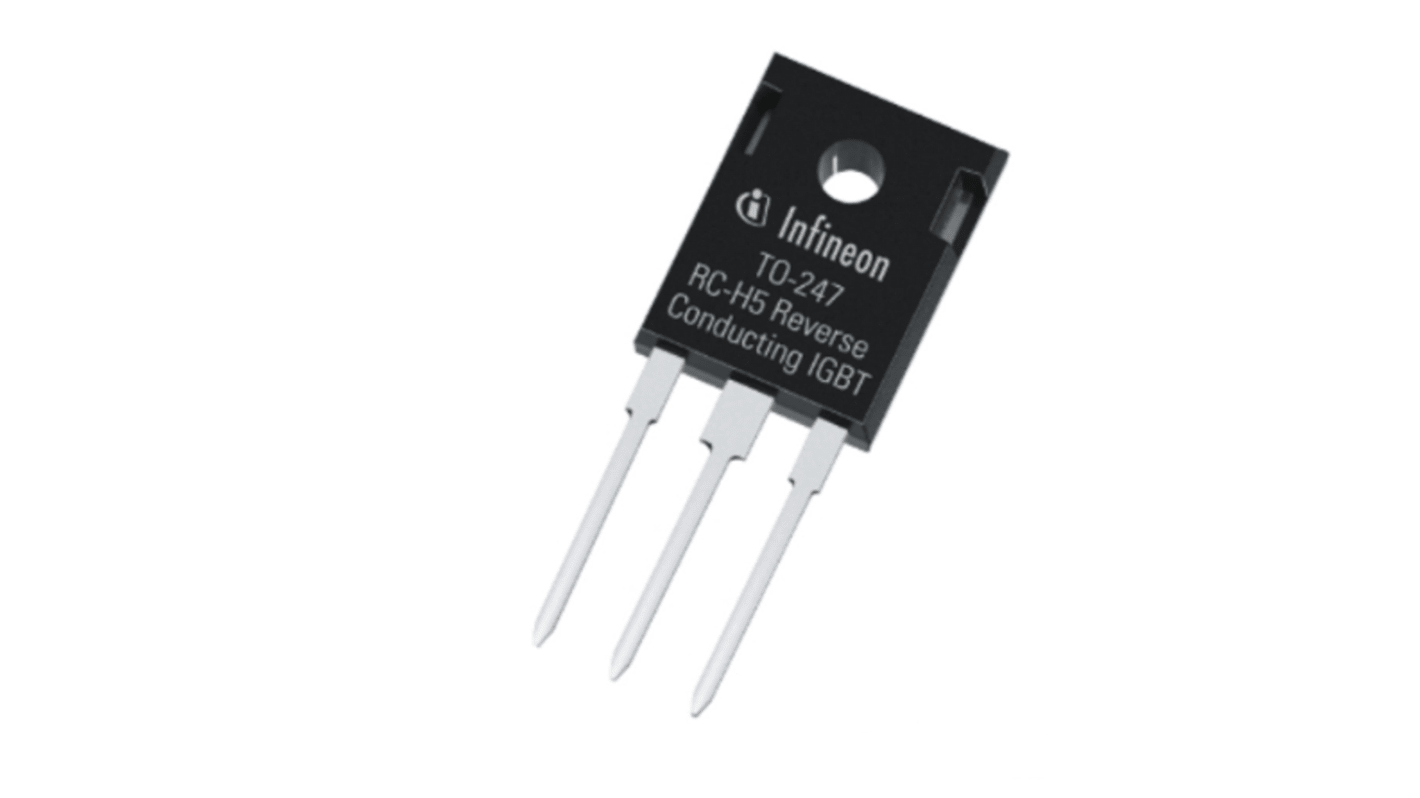

Infineon, N-Channel IGBT Single Transistor IC, 30 A 1.2 kV, 3-Pin TO-247, Through Hole
- RS Stock No.:
- 226-6075
- Mfr. Part No.:
- IHW15N120E1XKSA1
- Brand:
- Infineon
Get a bulk buy discount
Add 60 more to save £3.84
View bulk pricing optionsSubtotal (1 tube of 30 units)*
£38.40
(exc. VAT)
£46.20
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 120 unit(s), ready to ship
Units | Per unit | Per Tube* | Saving |
|---|---|---|---|
| 30 - 30 | £1.28 | £38.40 | - |
| 60 - 120 | £1.216 | £36.48 | £3.84 |
| 150 - 270 | £1.165 | £34.95 | £17.25 |
| 300 - 570 | £1.114 | £33.42 | £49.80 |
| 600 + | £1.037 | £31.11 | £145.80 |
*price indicative
- RS Stock No.:
- 226-6075
- Mfr. Part No.:
- IHW15N120E1XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Maximum Continuous Collector Current Ic | 30A | |
| Product Type | IGBT Single Transistor IC | |
| Maximum Collector Emitter Voltage Vceo | 1.2kV | |
| Maximum Power Dissipation Pd | 156W | |
| Package Type | TO-247 | |
| Mount Type | Through Hole | |
| Channel Type | N | |
| Pin Count | 3 | |
| Maximum Gate Emitter Voltage VGEO | 25 V | |
| Maximum Collector Emitter Saturation Voltage VceSAT | 1.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Length | 42mm | |
| Standards/Approvals | JEDEC for target applications | |
| Width | 16.13mm | |
| Series | Resonant Soft-Switching | |
| Height | 5.21mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Maximum Continuous Collector Current Ic 30A | ||
Product Type IGBT Single Transistor IC | ||
Maximum Collector Emitter Voltage Vceo 1.2kV | ||
Maximum Power Dissipation Pd 156W | ||
Package Type TO-247 | ||
Mount Type Through Hole | ||
Channel Type N | ||
Pin Count 3 | ||
Maximum Gate Emitter Voltage VGEO 25 V | ||
Maximum Collector Emitter Saturation Voltage VceSAT 1.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Length 42mm | ||
Standards/Approvals JEDEC for target applications | ||
Width 16.13mm | ||
Series Resonant Soft-Switching | ||
Height 5.21mm | ||
Automotive Standard No | ||
The Infineon IHW15N120E1 power full monolithic body diode with low forward voltage designed for soft commutation only and has high ruggedness, temperature stable behaviour with low VCEsat.
Very tight parameter distribution
Low EMI
