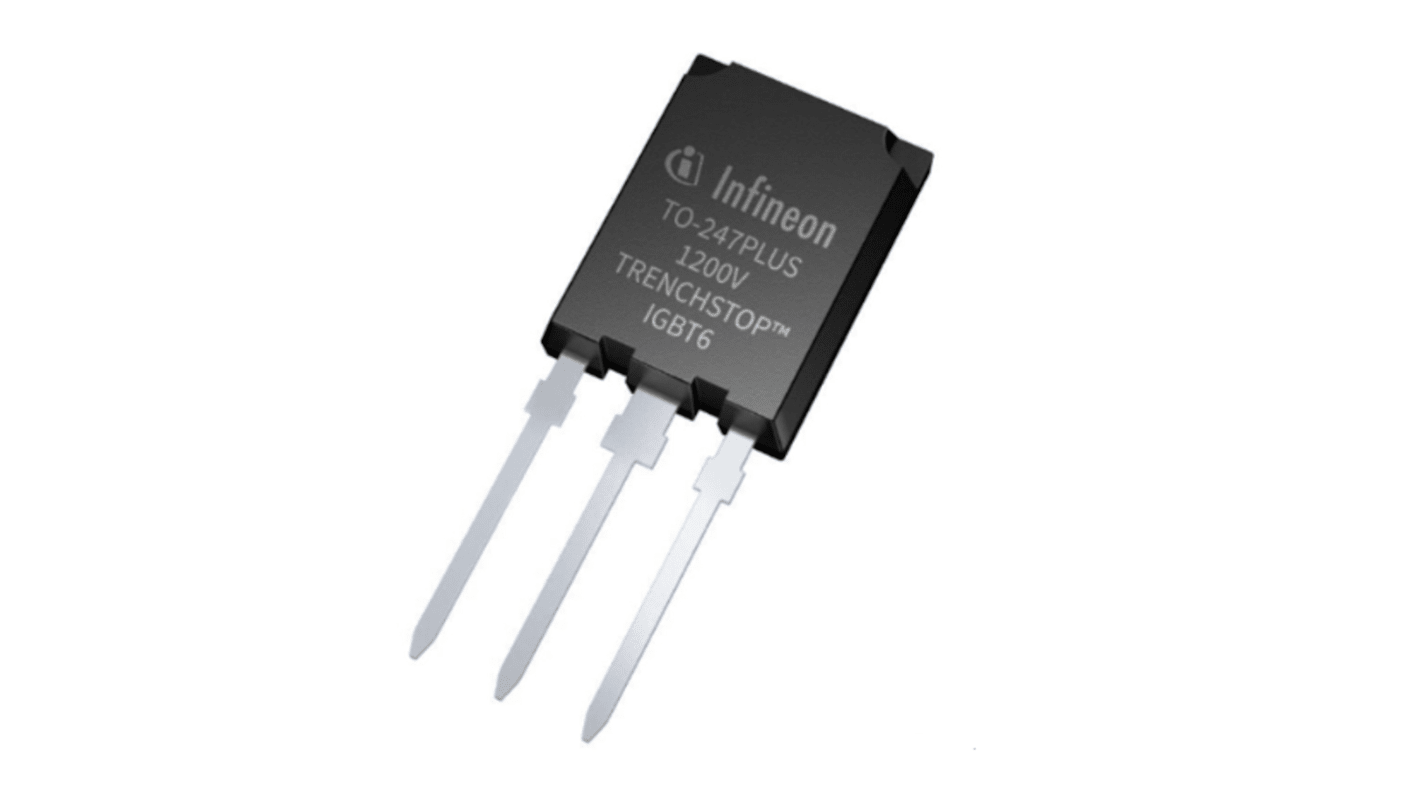

Infineon IKQ75N120CS6XKSA1, Type N-Channel IGBT Single Transistor IC, 150 A 1200 V, 3-Pin TO-247, Through Hole

View all IGBTs
Bulk discount available

Subtotal (1 unit)*

£5.72

(exc. VAT)

£6.86

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 772 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£5.72
5 - 9£5.15
10 - 24£4.80
25 - 49£4.51
50 +£4.17

*price indicative

Packaging Options:
RS Stock No.:
226-6111
Distrelec Article No.:
303-41-207
Mfr. Part No.:
IKQ75N120CS6XKSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

IGBT Single Transistor IC

Maximum Continuous Collector Current Ic

150A

Maximum Collector Emitter Voltage Vceo

1200V

Maximum Power Dissipation Pd

880W

Package Type

TO-247

Mount Type

Through Hole

Channel Type

Type N

Pin Count

3

Switching Speed

31ns

Minimum Operating Temperature

-40°C

Maximum Collector Emitter Saturation Voltage VceSAT

1.85V

Maximum Gate Emitter Voltage VGEO

25 V

Maximum Operating Temperature

175°C

Standards/Approvals

JEDEC47/20/22

Automotive Standard

No

The Infineon 5 A IGBT with anti-parallel diode is Very soft, fast recovery anti-parallel diode and has high ruggedness, temperature stable behaviour. It used low gate charge.

Low EMI

Low Gate Charge QG

Low saturation voltage if 1.85 V combined with low switching losses
