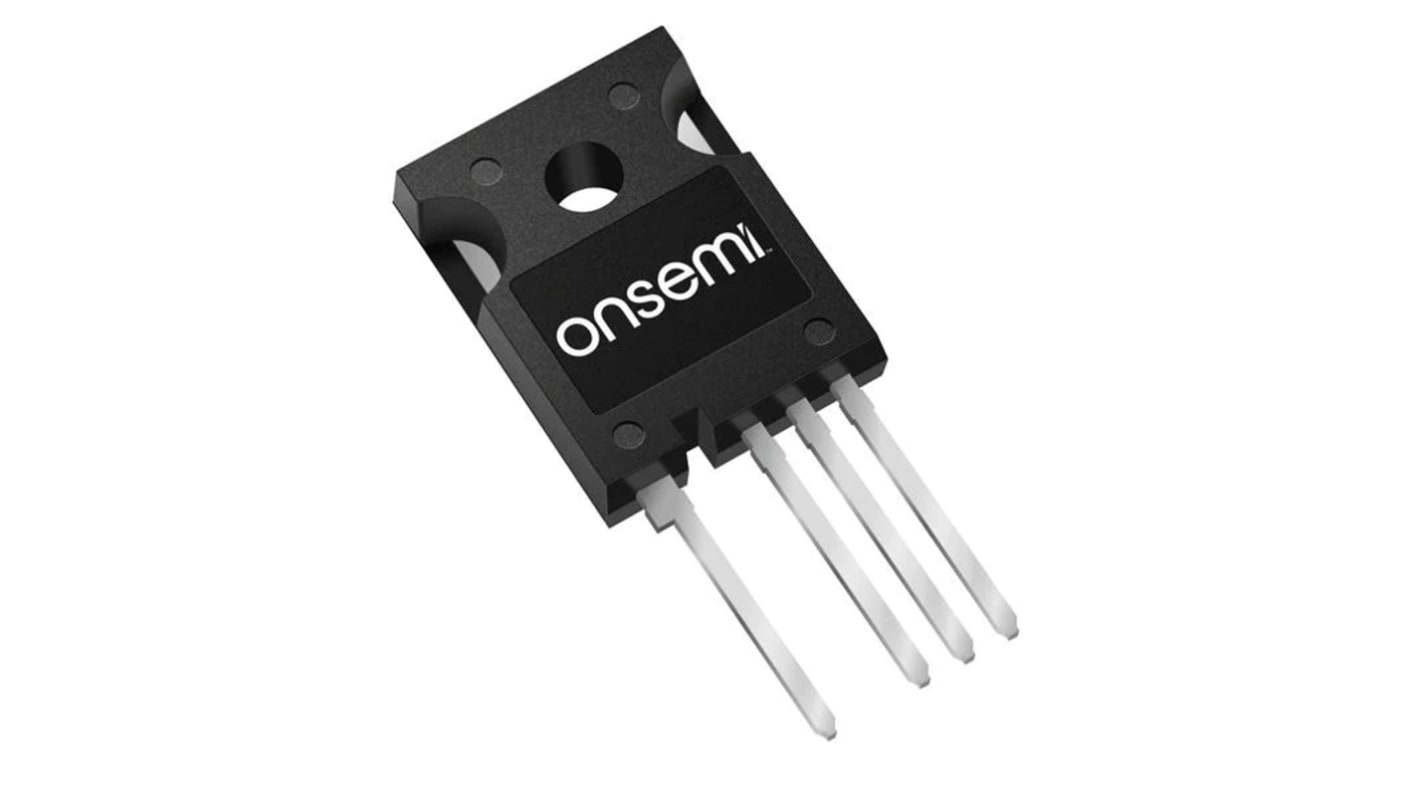

onsemi FGHL75T65MQDTL4 IGBT, 80 A 650 V TO-247-4LD
- RS Stock No.:
- 241-0738
- Mfr. Part No.:
- FGHL75T65MQDTL4
- Brand:
- onsemi
Bulk discount available
Subtotal (1 unit)*
£4.68
(exc. VAT)
£5.62
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £4.68 |
| 10 - 99 | £4.03 |
| 100 + | £3.50 |
*price indicative
- RS Stock No.:
- 241-0738
- Mfr. Part No.:
- FGHL75T65MQDTL4
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Maximum Continuous Collector Current | 80 A | |
| Maximum Collector Emitter Voltage | 650 V | |
| Maximum Gate Emitter Voltage | 20V | |
| Maximum Power Dissipation | 375 W | |
| Number of Transistors | 30 | |
| Package Type | TO-247-4LD | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Maximum Continuous Collector Current 80 A | ||
Maximum Collector Emitter Voltage 650 V | ||
Maximum Gate Emitter Voltage 20V | ||
Maximum Power Dissipation 375 W | ||
Number of Transistors 30 | ||
Package Type TO-247-4LD | ||
The ON Semiconductor 650 V, 75 A FS4 medium switching speed IGBT. This offer the optimum performance by balancing Vce(sat) and Eoff losses and well controllable turnoff Vce overshoot. Well suited for solar inverter, UPS, EV charging stations, ESS and other high performance power conversion applications.
Positive temperature co-efficient
Easy paralleling operation
Low switching losses
Low conduction losses
Easy paralleling operation
Low switching losses
Low conduction losses
