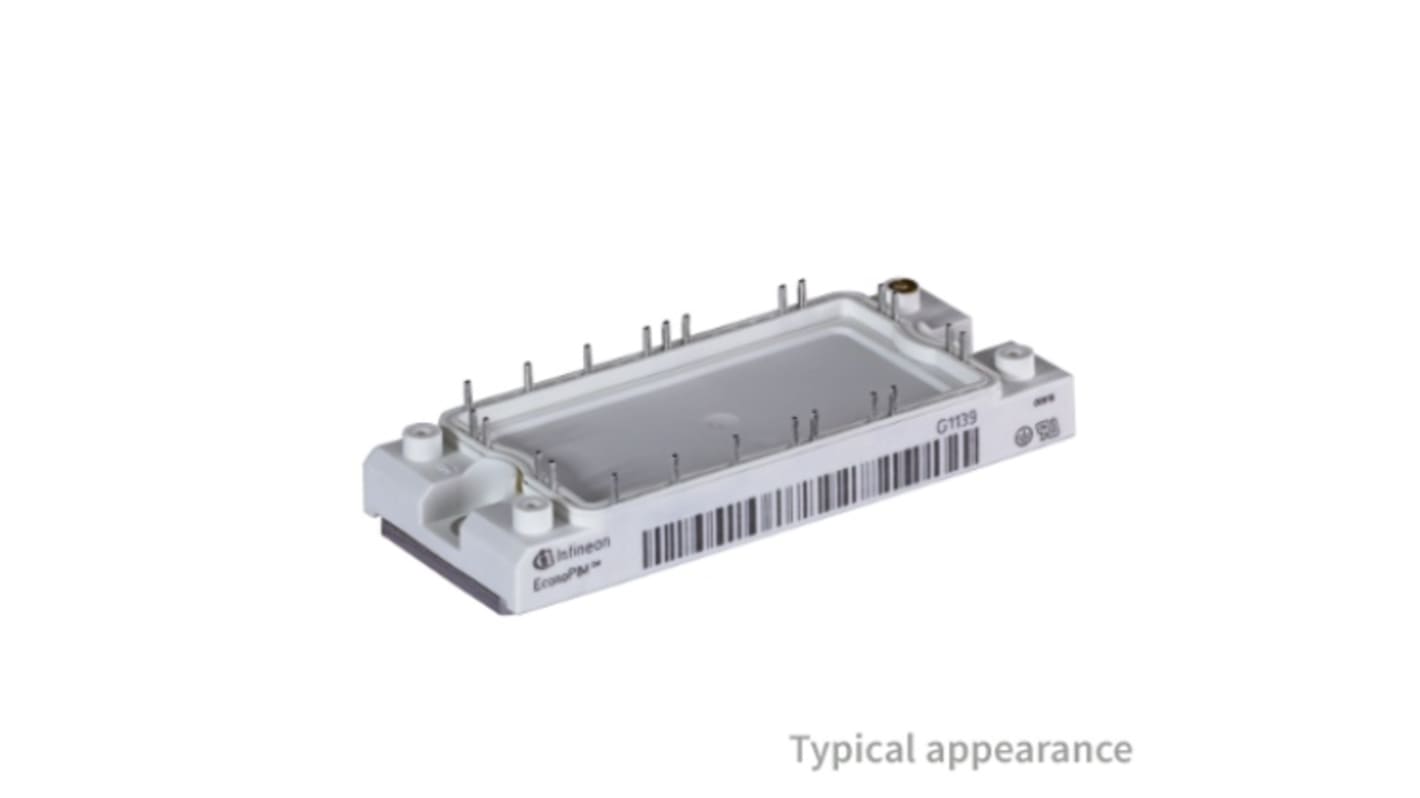

Infineon FP50R12N2T7B11BPSA1, Type N-Channel IGBT, 50 A 1200 V, 23-Pin Module, Chassis

View all IGBTs
Bulk discount available

Subtotal (1 unit)*

£69.38

(exc. VAT)

£83.26

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 08 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 1£69.38
2 - 4£65.91
5 - 9£63.14
10 - 19£60.77
20 +£59.25

*price indicative

Packaging Options:
RS Stock No.:
232-6712
Mfr. Part No.:
FP50R12N2T7B11BPSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

IGBT

Maximum Continuous Collector Current Ic

50A

Maximum Collector Emitter Voltage Vceo

1200V

Maximum Power Dissipation Pd

20mW

Number of Transistors

7

Package Type

Module

Mount Type

Chassis

Channel Type

Type N

Pin Count

23

Minimum Operating Temperature

-40°C

Maximum Collector Emitter Saturation Voltage VceSAT

1.5V

Maximum Gate Emitter Voltage VGEO

20 V

Maximum Operating Temperature

175°C

Width

45 mm

Standards/Approvals

No

Length

107.5mm

Series

FP50R12N2T7_B11

Height

21.3mm

Automotive Standard

No

The Infineon's EconoPIM 2, 50 A three phase PIM IGBT module comes with TRENCHSTOP IGBT7, Emitter Controlled 7 diode, NTC and PressFIT contact technology. The PIM (Power Integrated Modules) with integration of rectifier and brake chopper enables system cost savings. Potential applications include auxiliary inverters, motor drives and servo drives.

RoHS-compliant modules

Copper base plate for optimized heat spread

High power density
