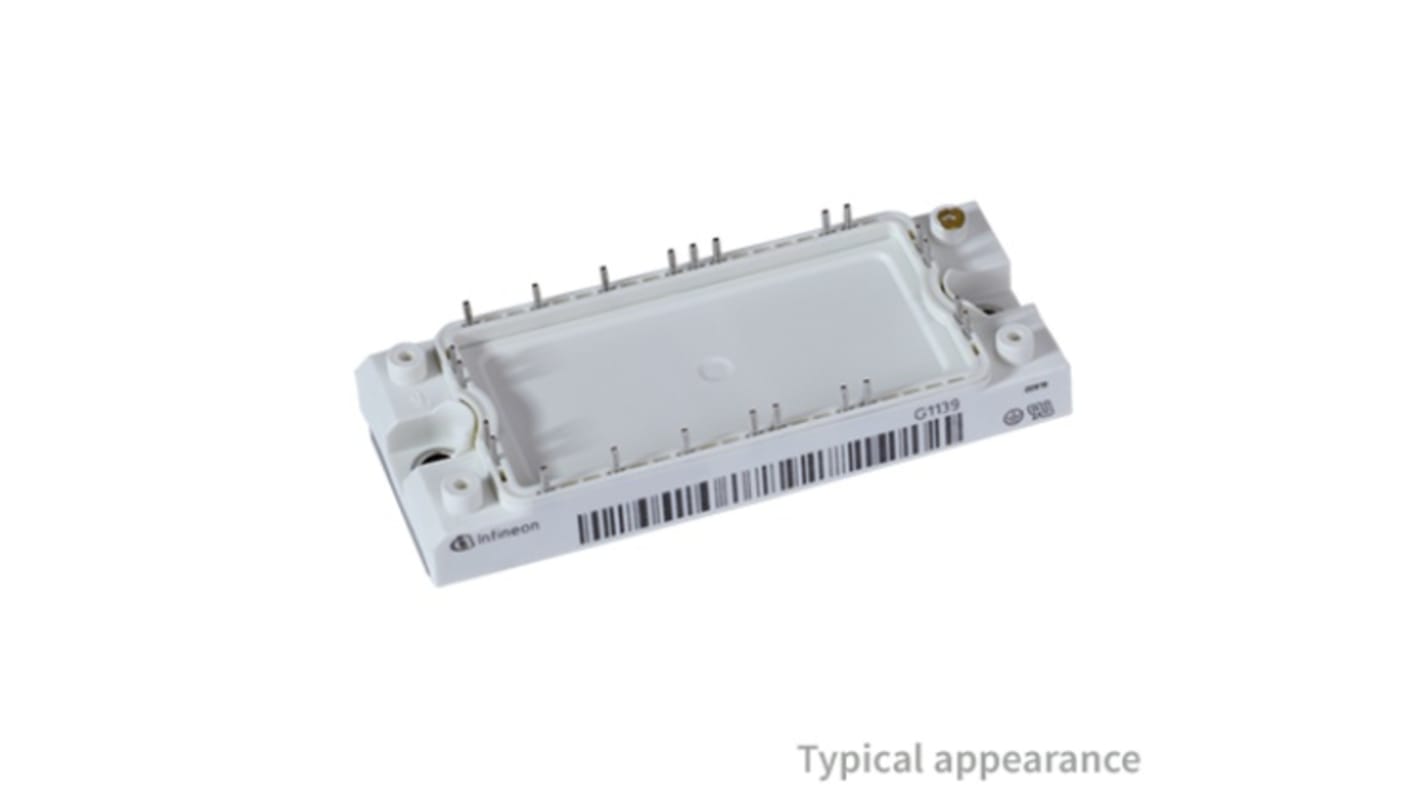

Infineon FP100R12N2T7BPSA1 3 Phase IGBT, 100 A 1200 V, 31-Pin Module, Chassis Mount

View all IGBTs
Bulk discount available

Subtotal (1 unit)*

£121.34

(exc. VAT)

£145.61

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 1£121.34
2 - 4£115.27
5 +£110.42

*price indicative

Packaging Options:
RS Stock No.:
232-6701
Mfr. Part No.:
FP100R12N2T7BPSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Maximum Continuous Collector Current

100 A

Maximum Collector Emitter Voltage

1200 V

Maximum Gate Emitter Voltage

±20V

Number of Transistors

7

Maximum Power Dissipation

20 mW

Configuration

3 Phase

Package Type

Module

Mounting Type

Chassis Mount

Channel Type

N

Pin Count

31

Transistor Configuration

3 Phase

The Infineon's EconoPIM 2, 100 A three phase PIM IGBT module comes with TRENCHSTOP IGBT7, Emitter Controlled 7 diode and NTC. The PIM (Power Integrated Modules) with integration of rectifier and brake chopper enables system cost savings. Potential applications include auxiliary inverters, motor drives and servo drives.

RoHS-compliant modules
Copper base plate for optimized heat spread
High power density
